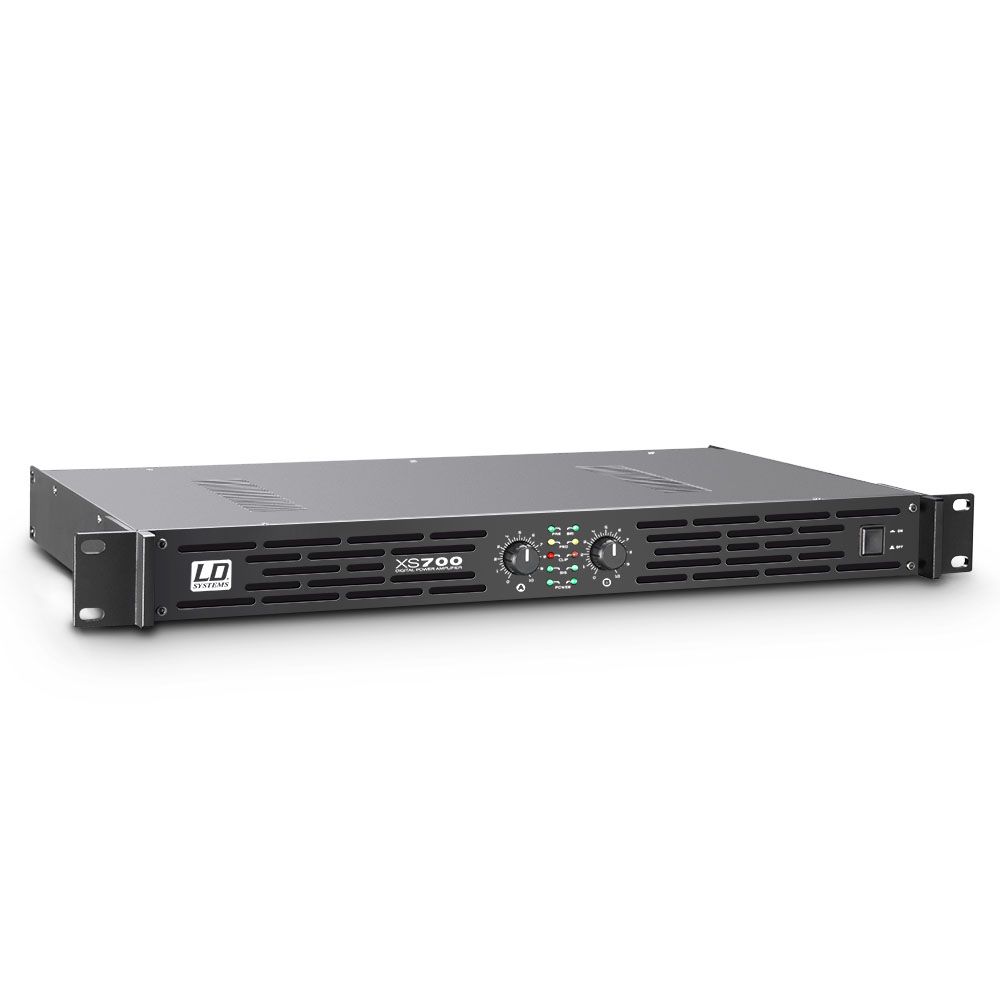

LD Systems XS700 Power AmplifierThe XS700 is the flagship of the XS series of power amplifiers and an absolute flyweight with just 1U and 3.4kg. Our Class D power amplifier technology makes it possible to pack high performance into a minimum of space without generating unnecessary loss energy. The power amp has an output of 350W per channel at 4 ohms, 2x 200W at 8 ohms, and 700W in bridged mode. It is conceived for all professional applications in which ease of transport and space is essential, whether mobile or in permanent installations.
The XS700 has all protection circuits against short-circuiting, DC, overheating, and overloading and has a soft-start delay.

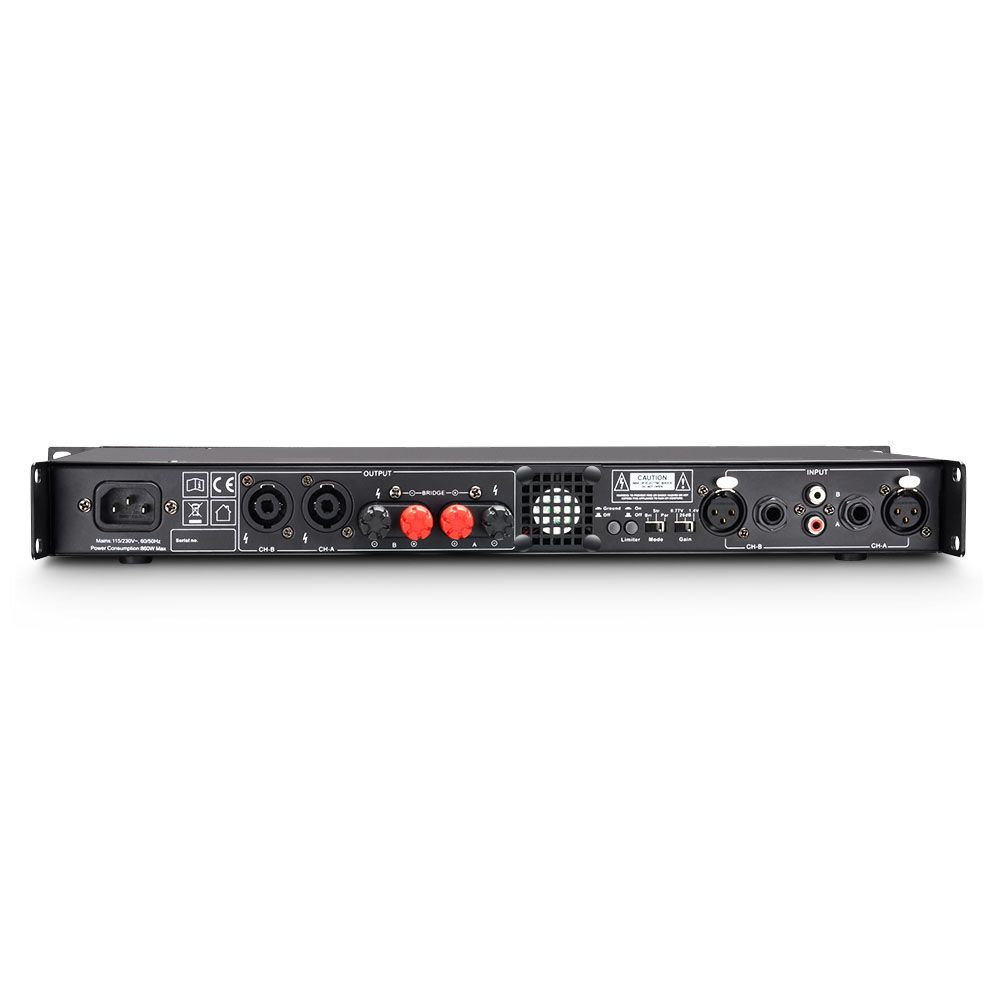

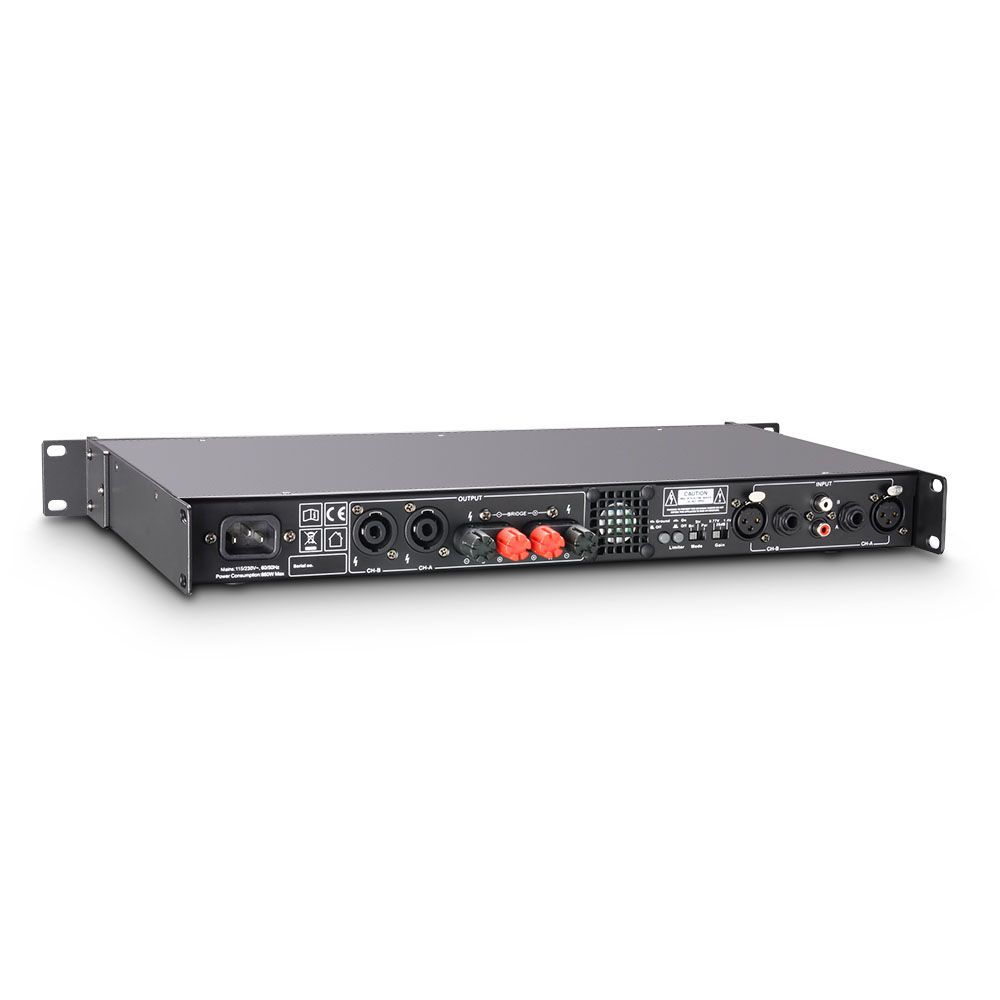

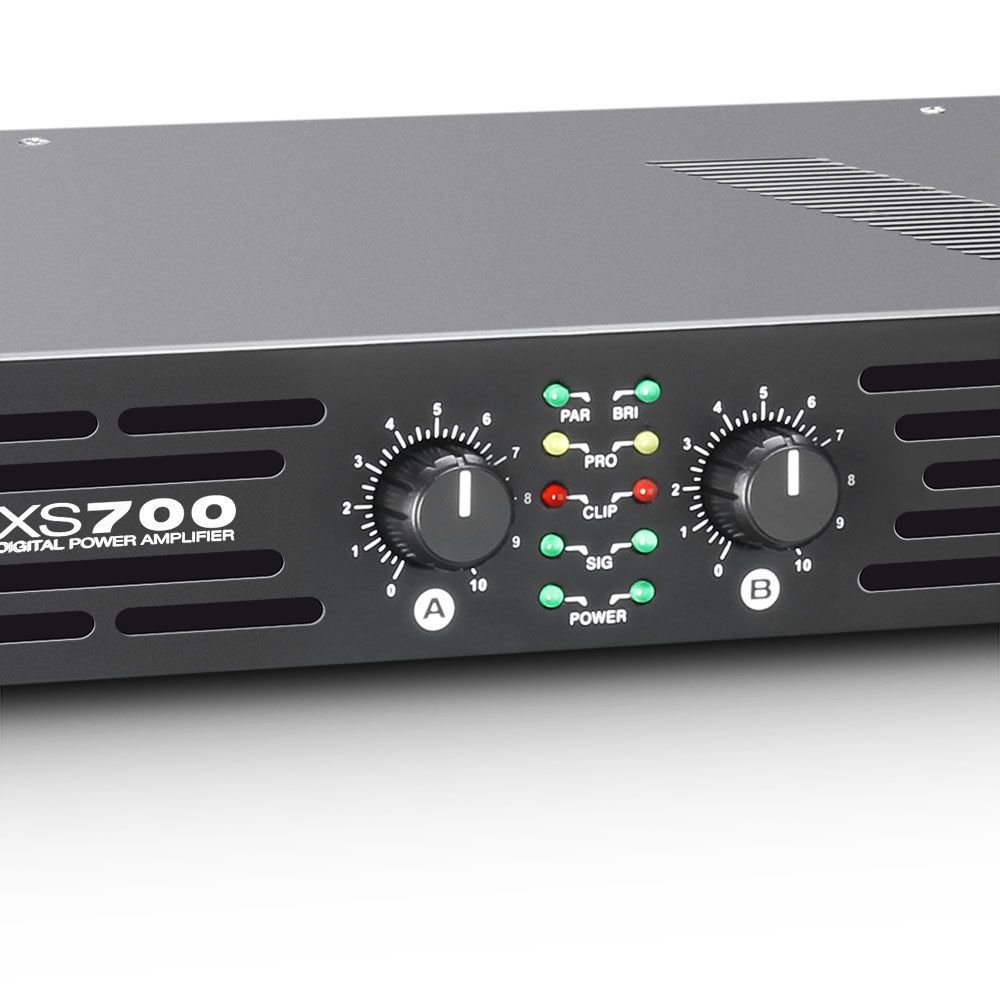

The amplifier features XLR, RCA and jack input connectors, with Speakon-compatible sockets and screw terminals as outputs. On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the front indicate power, signal, clipping, triggering of the protection circuit, and the mode of operation. The XS700 impresses with operational dependability and a transmission range of 20Hz – 20kHz, which is reproduced transparently and dynamically with high impulse fidelity.
General
| Peak output power | 700 W |
|---|
| RMS output power | 400 W |
|---|
| Amp class | Class D |
|---|
| Frequency response (±0.5 dB, rel. Avg) | 20 Hz |
|---|
| Protection features | Direct current, Short circuit, Overheating, Overload, Soft-Start, Limiter |
|---|
Bluetooth®
| Receiver (client) | 0 |
|---|
| Transmitter (host) | 0 |
|---|
Inputs
| Number of line inputs | 3 |
|---|
| Line-In connector type | XLR 3-pole female, RCA female, 6.3 mm Jack TRS female |
|---|
| Input gain | 24 dB |
|---|
Outputs
| Number of speaker outputs | 2 |
|---|
| Speaker output connection type | Standard speaker connector 4-pole male & speakON®, Speaker terminal 2-pole |
|---|
Amplifier
| Output channels number | 2 |
|---|
| Bridged output channels number | 1 |
|---|
| Total RMS output power | 4 Ω: 700 W | 8 Ω: 400 W |
|---|
| Total Peak output power | 8 Ω: 700 W |
|---|
| Bridged output power (Peak) | 8 Ω: 1 x 700 W |
|---|
Mains operation
| Operation voltage | 115 V AC - 230 V AC / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 860 W |
|---|
| Mains connector | IEC C14 plug male |
|---|
Dimensions & weight
| Width | 482 mm |
|---|
| Height | 44 mm |
|---|
| Depth | 244 mm |
|---|
| Weight | 3.4 kg |
|---|
