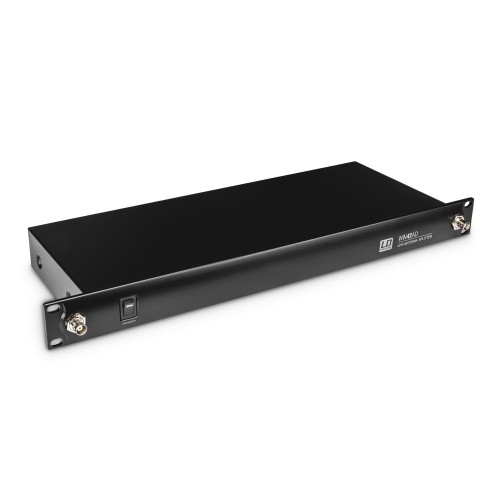

Antenna Split Box 4-way for all types of wireless microphone systems working in a range between 500 and 900 MHz.
General
| Product type | Wireless Microphone System Accessories |
|---|---|
| Type | Antenna Splitter |
| Frequency band | 500 MHz |
| Frequency bandwidth | 400 MHz |
| Signal gain | 3 dB |
| Antenna inputs | 2 |
| Antenna input connection | BNC |
| Input impedance | 50 |
| Power supply for antenna booster | 9 V |
| Antenna outputs | 4 x 2 |
| Antenna output connection | BNC |
| Output impedance | 50 |
| Power supply for radio receiver | 4 x 12 - 18 V DC V |
| Power supply | 12 - 18 V DC, 3A |
| Operating voltage | 12 V DC - 18 V DC (100 mA) |
| Width | 482 mm |
| Height | 44.4 mm |
| Depth | 160 mm |
| Accessories (included) | 4 x Output 600 mA, 10 x BNC Kabel, 0.5m, Plastic case, 2 x BNC adapter, Power supply, 4 x DC cable, 0.5m |
