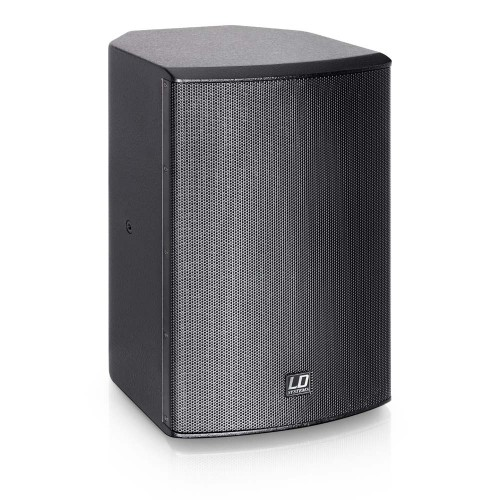

The LD Systems SAT82AG² is an active installation monitor, which provides a convincing performance on a PC or laptop and as a home studio monitor.
The compact 2-way bass reflex design is equipped with an 8" custom-made woofer and a 1" compression driver which are driven by an 80 Watt Class AB power amplifier. The input is a combo socket; an XLR socket is used to loop through the signal. With a frequency response of 50 Hz - 20 kHz and 114 dB maximum sound pressure, the SAT82AG² produces a balanced sound with high dynamics. The monitor features protection circuits for the tweeter against overcurrent, and a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The cabinet of the SAT82G² is made of 12mm MDF with M6 flight points and is available in black or white with a durable textured paint finish. A versatile mounting bracket is included; a universal joint mount is available as an accessory.
- Compact active 2-way installation monitor
- Ideal for bars, restaurants, shops, as a home recording monitor and PC speaker
- 8" custom-made woofers
- 1" high frequency driver with a 60° x 60° dispersion angle
- Integrated Class AB power amplifier with 80 watts (RMS)
- Switchable automatic power save mode
- Mounting bracket and M6 fixing points for a wide variety of installation possibilities
General
| Type (active/passive) | Active |
|---|---|
| RMS output power | 80 W |
| Amp class | Class A/B |
| SysLink® | 0 |
| Max. SPL peak | 114 dB |
| Frequency response | 50 Hz |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 1 |
| Input connector types | XLR combo socket |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole female |
| Protection features | Overvoltage |
| Colour | Black |
Signal processing
| Mixer | 0 |
|---|
Bass driver
| Size | 8 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 25 mm |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Mains operation
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | Switched-mode power supply (SMPS) |
Housing
| Design | Bass reflex |
|---|---|
| Cabinet material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 274 mm |
|---|---|
| Height | 410 mm |
| Depth | 243 mm |
| Weight | 8.5 kg |
Other properties
| Included accessories | Mounting bracket |
|---|
