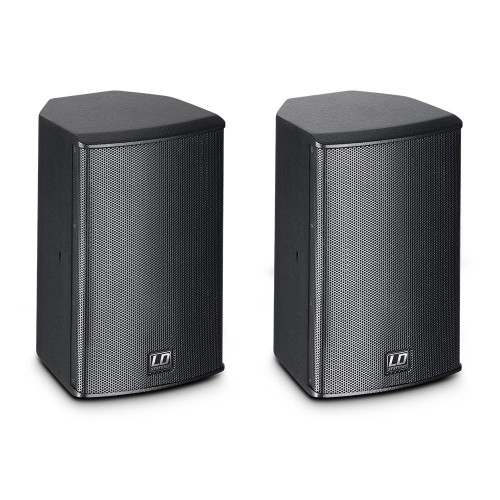

The LD Systems SAT62G2 is an extremely compact, dependable 2-way speaker for numerous installation applications. It blends unobtrusively into practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
The bass-reflex design with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide provides for powerful and sonorous reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB. Thus the SAT62G2 is suitable for full-range operation and as a satellite in conjunction with a subwoofer from the LD installation series. It has a RMS power rating of 80 W. The impedance of 16 ohms permits parallel operation of eight SAT62G2 speakers on 2 ohms.
The 12 mm MDF cabinet with a rugged textured coating is available in black and white. The included mounting bracket and M6 rigging points offer extensive possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (RMS) | 80 W |
| SPL (1 W/1 m) | 89 dB |
| Max. SPL peak | 108 dB |
| Frequency response | 55 Hz |
| Impedance | 16 Ω |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 1 |
| Input connector types | Speaker terminal 2-pole |
| Colour | Black |
Bass driver
| Size | 6.5 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Housing
| Design | Bass reflex |
|---|---|
| Mounting type | Ceiling bracket |
| Cabinet material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 200 mm |
|---|---|
| Height | 320 mm |
| Depth | 200 mm |
| Weight | 8.2 kg |
Other properties
| Included accessories | Mounting bracket |
|---|
