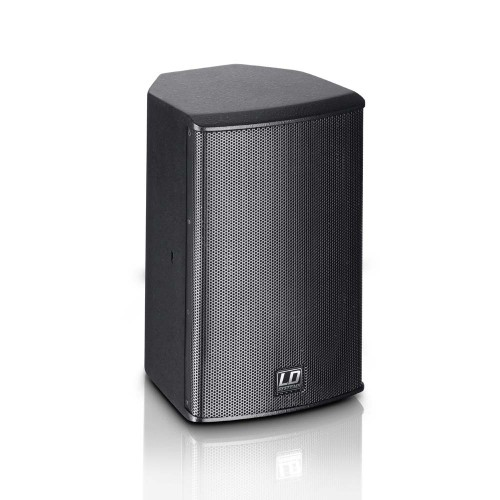

The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.
The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.
The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
General
| Type (active/passive) | Active |
|---|---|
| RMS output power | 50 W |
| Amp class | Class A/B |
| SysLink® | 0 |
| Max. SPL average | 108 dB |
| Frequency response | 55 Hz |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 1 |
| Input connector types | XLR combo socket |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole male |
| Protection features | Overvoltage |
| Colour | Black |
Signal processing
| Mixer | 0 |
|---|
Bass driver
| Size | 6.5 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Mains operation
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | Linear power supply |
| Mains connector | IEC C14 socket male |
Housing
| Design | Bass reflex |
|---|---|
| Mounting type | Ceiling bracket |
| Cabinet material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 200 mm |
|---|---|
| Height | 320 mm |
| Depth | 200 mm |
| Weight | 5.25 kg |
Other properties
| Included accessories | Mounting bracket |
|---|
