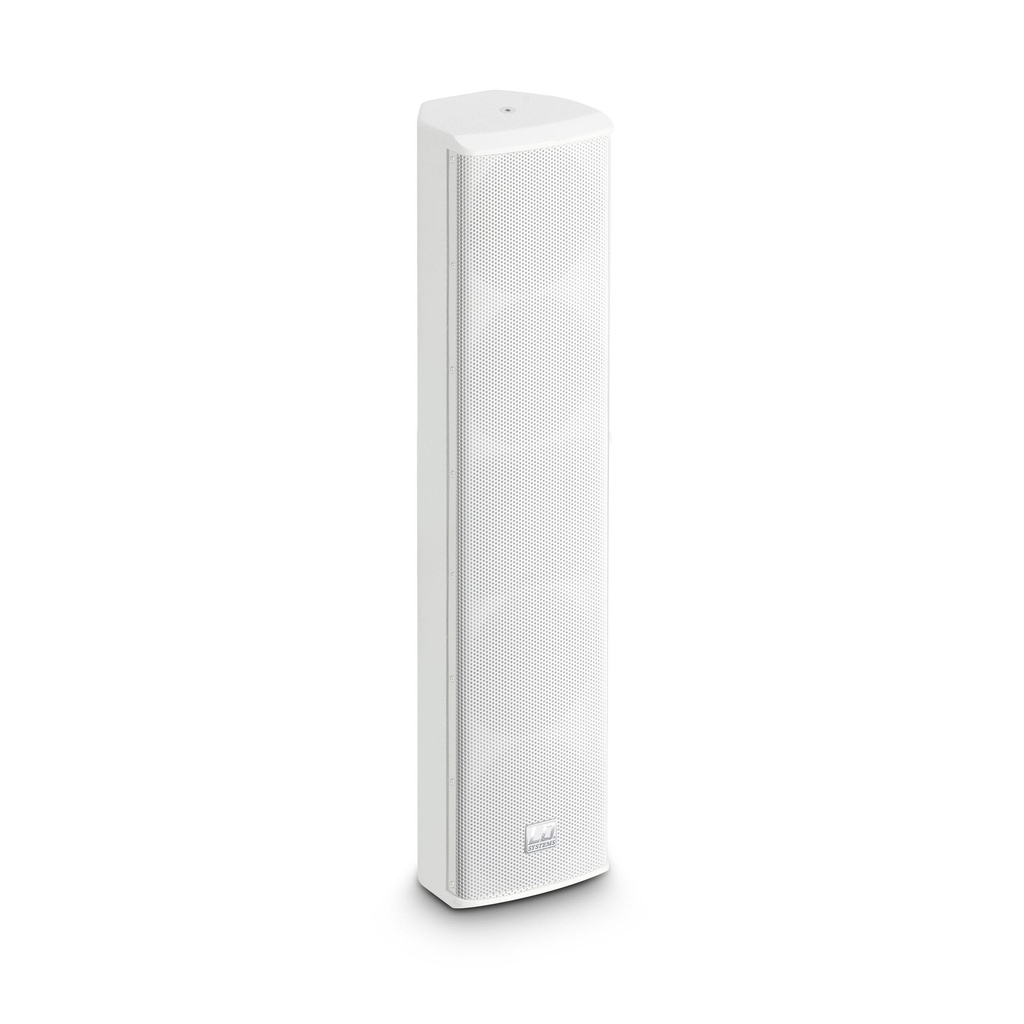

The LD Systems SAT442G² is an extremely slim installation monitor that can be unobtrusively integrated into almost any environment.
The elegant column design of the SAT442G² achieves a smooth balanced 120° horizontal dispersion with a focused 30° vertical directivity and a maximum sound pressure of 114 db. Four 4" custom-made woofers and a 1" compression driver from Celestion provide a balanced playback with a frequency response of 75 Hz to 20 kHz; spring terminals are used as connection. For a powerful, deep bass extension, we recommend the subwoofer installation series from LD Systems.

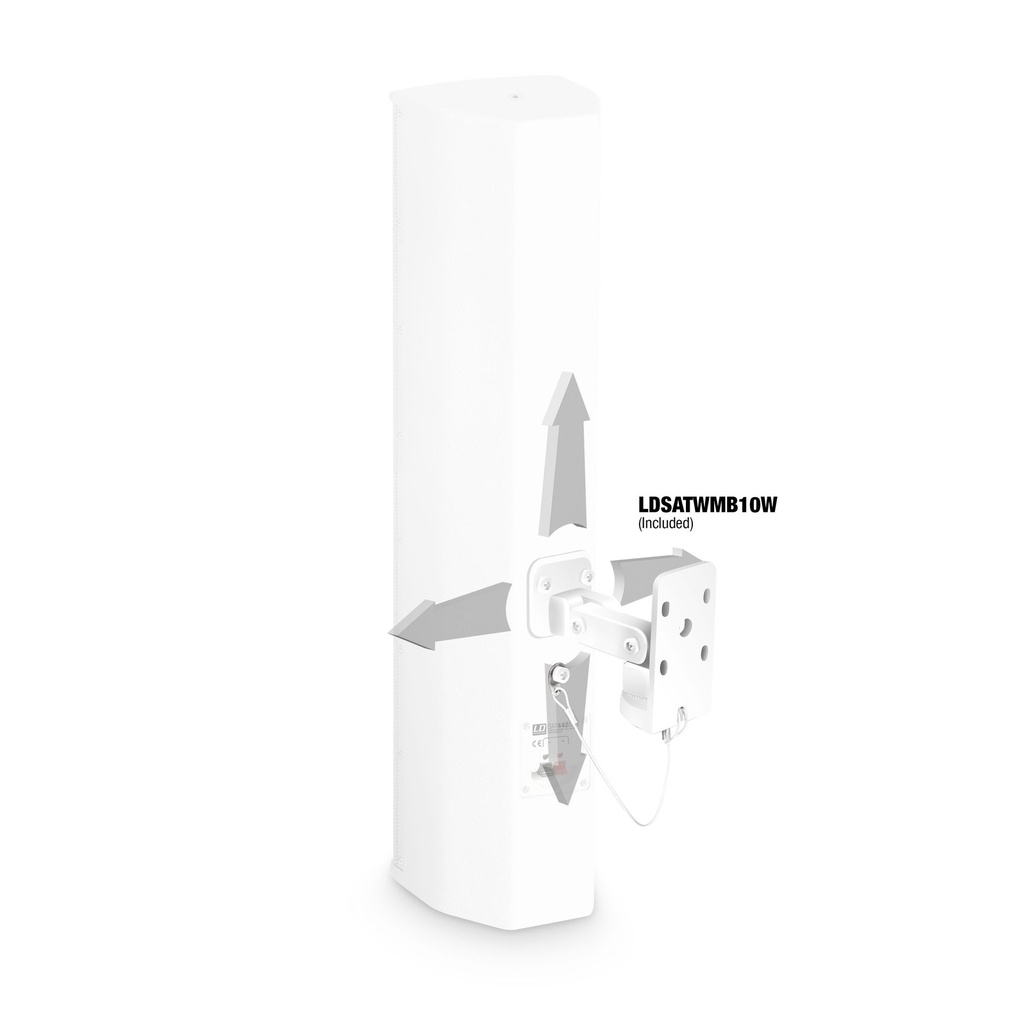

The rugged cabinet of the SAT442G², featuring a durable textured coating, is made of 12 mm MDF and is available in black or white. M6 inserts and an included universal joint mount (LDSATWMB10W) provide a wide range of possibilities for mounting.
- Slim installation speaker for bars, restaurants, shops etc.
- 120° horizontal dispersion with a 30° vertical bundling
- Four 4" custom-made woofers
- 1" Celestion tweeter
- Maximum Power Output of 200 watts
- Universal joint mount and M6 fixing points for a wide variety of installation possibilities
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (RMS) | 200 W |
| SPL (1 W/1 m) | 94 dB |
| Frequency response | 75 |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Dispersion | Hor.: 120° / Vert.: 30° |
| Number of inputs | 1 |
| Input connector types | Terminal block 2 pin (Euroblock) / 3.5 mm pitch |
| Colour | White |
Bass driver
| Size | 4 " |
|---|---|
| Quantity | 4 |
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 mm |
|---|---|
| Manufacturer | Celestion |
| Magnet | Ferrite |
Housing
| Design | Closed |
|---|---|
| Mounting type | M6, Ceiling bracket |
| Cabinet material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 140 mm |
|---|---|
| Height | 670 mm |
| Depth | 155 mm |
| Weight | 8 kg |
Other properties
| Included accessories | Mounting bracket |
|---|
