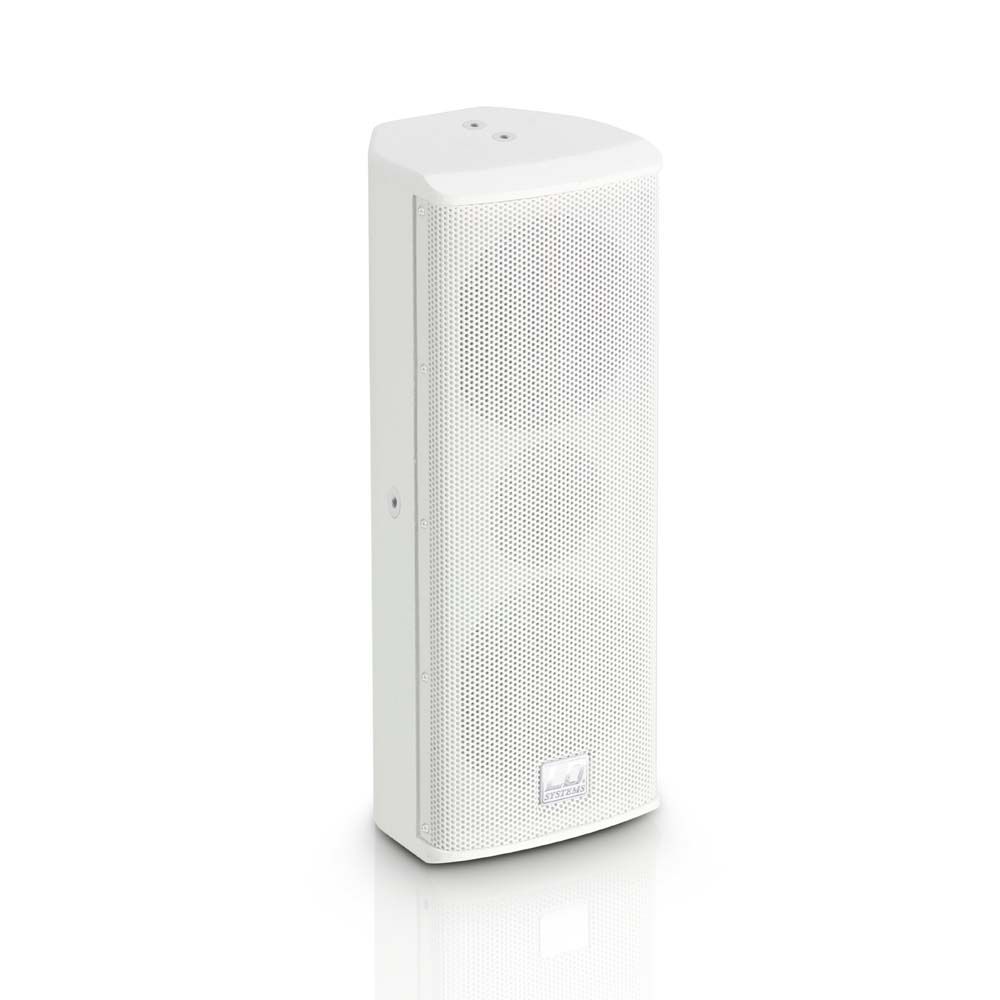

The closed design of the sleek, compact speaker is loaded with 4" custom woofers and a 1“ silk dome tweeter with wave guide, which provide for a maximum sound-level pressure of 108 dB. The LD SAT242G2 is rated for 100 W RMS power can can be used alone as a full-range speaker or with a subwoofer in the in the LD installation series for bass expansion.

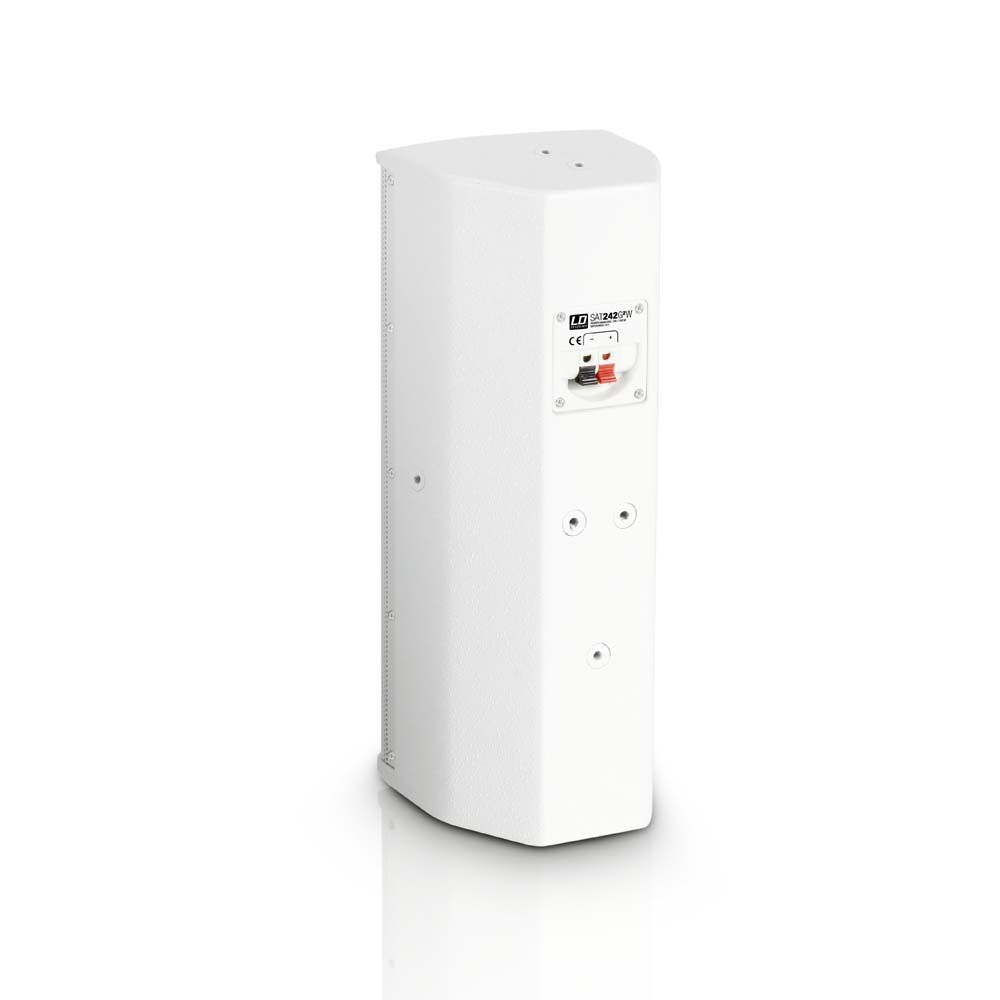

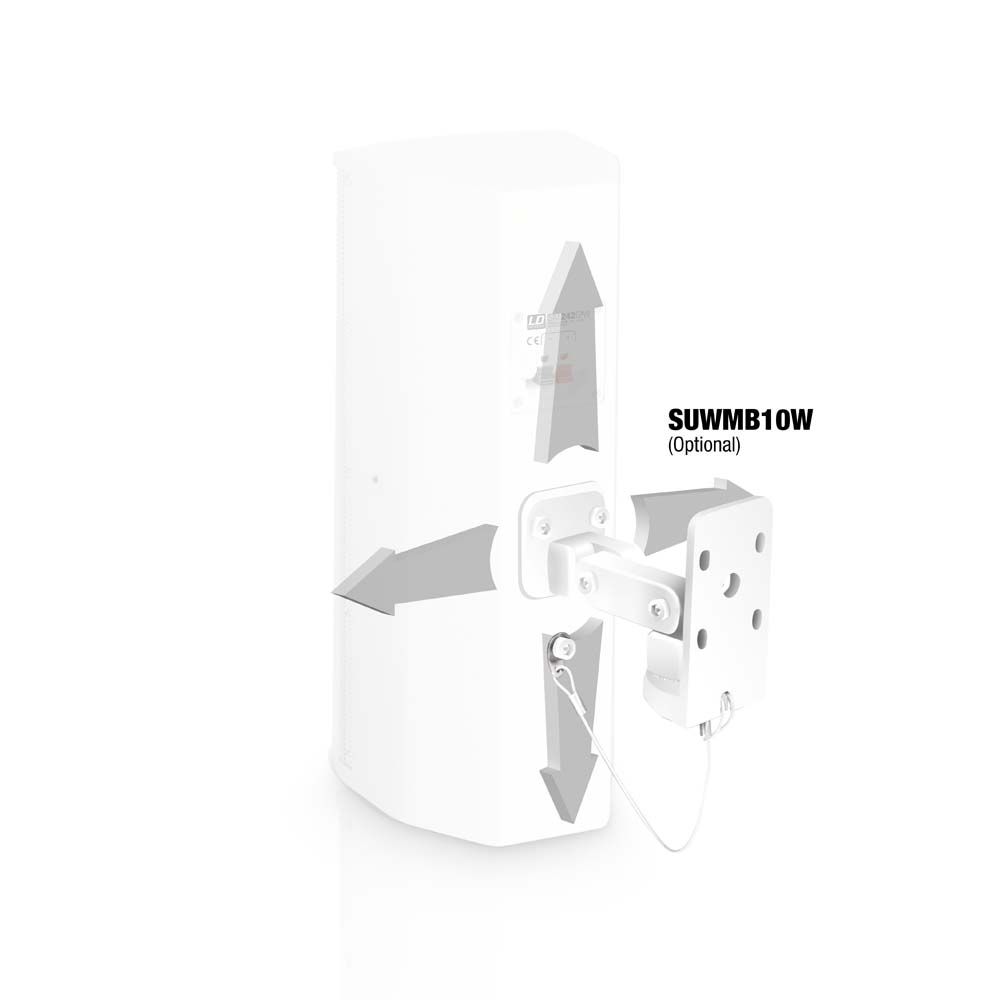

The cabinet of the SAT242G2 is made of 12mm MDF with a durable textured finish and is available in black and white. It is connected via spring terminals. M6 inserts and an included mounting bracket provide numerous possibilities for mounting; a universal joint mount is available as an accessory.
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (RMS) | 100 W |
| SPL (1 W/1 m) | 88 dB |
| Max. SPL peak | 108 dB |
| Frequency response | 75 Hz |
| Impedance | 8 Ω |
| Dispersion | Hor.: 60° / Vert.: 60° |
| Number of inputs | 1 |
| Input connector types | Speaker terminal 2-pole |
| Colour | White |
Bass driver
| Size | 4 " |
|---|---|
| Quantity | 2 |
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
Housing
| Design | Closed |
|---|---|
| Mounting type | Ceiling bracket |
| Cabinet material | Medium-density fibreboard MDF |
| Material thickness | 12 mm |
| Coating | Painted (textured lacquer) |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 140 mm |
|---|---|
| Height | 378 mm |
| Depth | 135 mm |
| Weight | 4.15 kg |
Other properties
| Included accessories | Mounting bracket |
|---|
