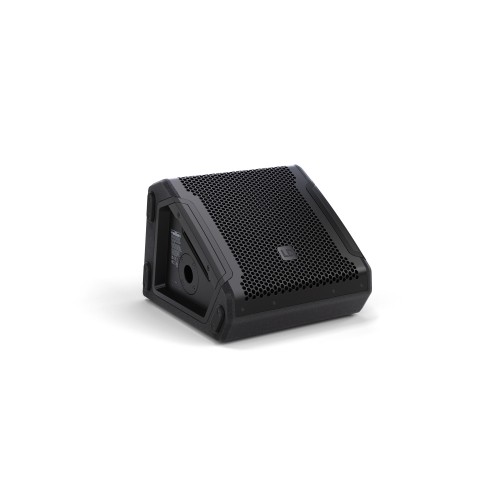

The MON 8 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.
As the smallest member of the new stage monitor family, the MON 8 A G3 is particularly inconspicuous and flexible in use: as a stage monitor, in a DJ setup or on a speaker stand as a FOH speaker, as a satellite in 2.1 systems or as a delay line speaker. At the same time, the MON 8 A G3 offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound.
Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.
- Compact high-performance stage monitor with top-of-the-range technologies
- Class-D power amplifier with 300 W RMS/1200 W peak and 121 dB max. SPL
- Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver
- 8" woofer with 2.5" voice coil
- Optimised, practical radiation pattern due to 50° x 90° CD horn
- DynX® DSP (Gen.2) for distortion-free sound even at maximum volume
- 3-band EQ, Notch filter, 4 application presets and delay function
- PowerCON compatible loop-through professional power connection
- 35 mm speaker stand flange for FOH applications
- Durable Polyurea coating and heavy-duty front grille
General
| Type (active/passive) | Active |
|---|
| Peak output power | 1200 W |
|---|
| RMS output power | 300 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %) | 121 dB |
|---|
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 116 dB |
|---|
| Frequency response (-3 dB, rel. Avg) | 68 Hz |
|---|
| Frequency response (-10 dB, rel. Avg) | 59 Hz |
|---|
| Speaker system | 2-way coaxial system |
|---|
| Crossover frequency | 2500 Hz |
|---|
| Dispersion | Hor.: 50° / Vert.: 90° |
|---|
| Monitor angle | 33 ° |
|---|
| Number of inputs | 2 |
|---|
| Input connector types | XLR combo socket, 6.3 mm Jack TRS female |
|---|
| Number of outputs | 2 |
|---|
| Output connector types | XLR 3-pole female |
|---|
| Protection features | Multiband Limiter, Overheating, Overload, Overvoltage |
|---|
| Colour | Black |
|---|
Inputs
| Number of mic/line inputs | 2 |
|---|
| Number of line inputs | 2 |
|---|
| Line-In connector type | XLR combo socket, 6.3 mm Jack TRS female |
|---|
Outputs
| Number of line outputs | 2 |
|---|
| Line outputs connector type | XLR 3-pole female |
|---|
Signal processing
| Mixer | 1 |
|---|
| Audio processing | 3 band EQ (High, Mid, Low), Delay Line, Notch filter, Presets |
|---|
Bass driver
| Size | 8 " |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 2 " |
|---|
Tweeter
| Driver size | 1 " |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 1 " |
|---|
Mains operation
| Operation voltage | 100 V AC - 230 V AC / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 150 W |
|---|
| Mains fuse | T4AL/250 V |
|---|
Housing
| Design | Bass reflex |
|---|
| Number of handles | 2 |
|---|
| Flange | 36 mm (0°/5°) |
|---|
| Cabinet material | Birch multiplex, Medium-density fibreboard MDF |
|---|
| Material thickness | 15 mm |
|---|
| Front grille material | Aluminium |
|---|
Environmental
| Ambient temperature | 0 °C |
|---|
| Maximum air humidity (non-condensing) | 80 % |
|---|
Dimensions & weight
| Width | 340 mm |
|---|
| Height | 278 mm |
|---|
| Depth | 368 mm |
|---|
| Weight | 13.2 kg |
|---|
Other properties
| Included accessories | Mains cable |
|---|
