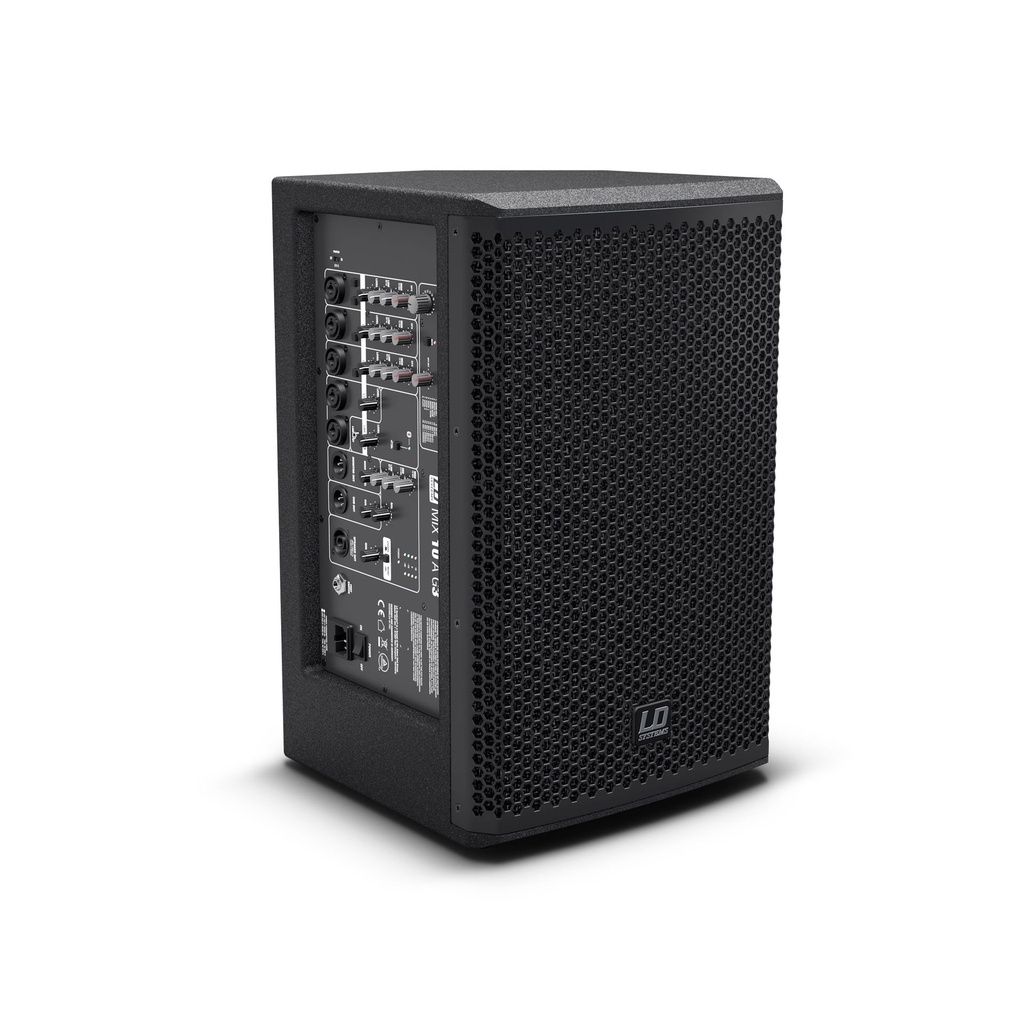

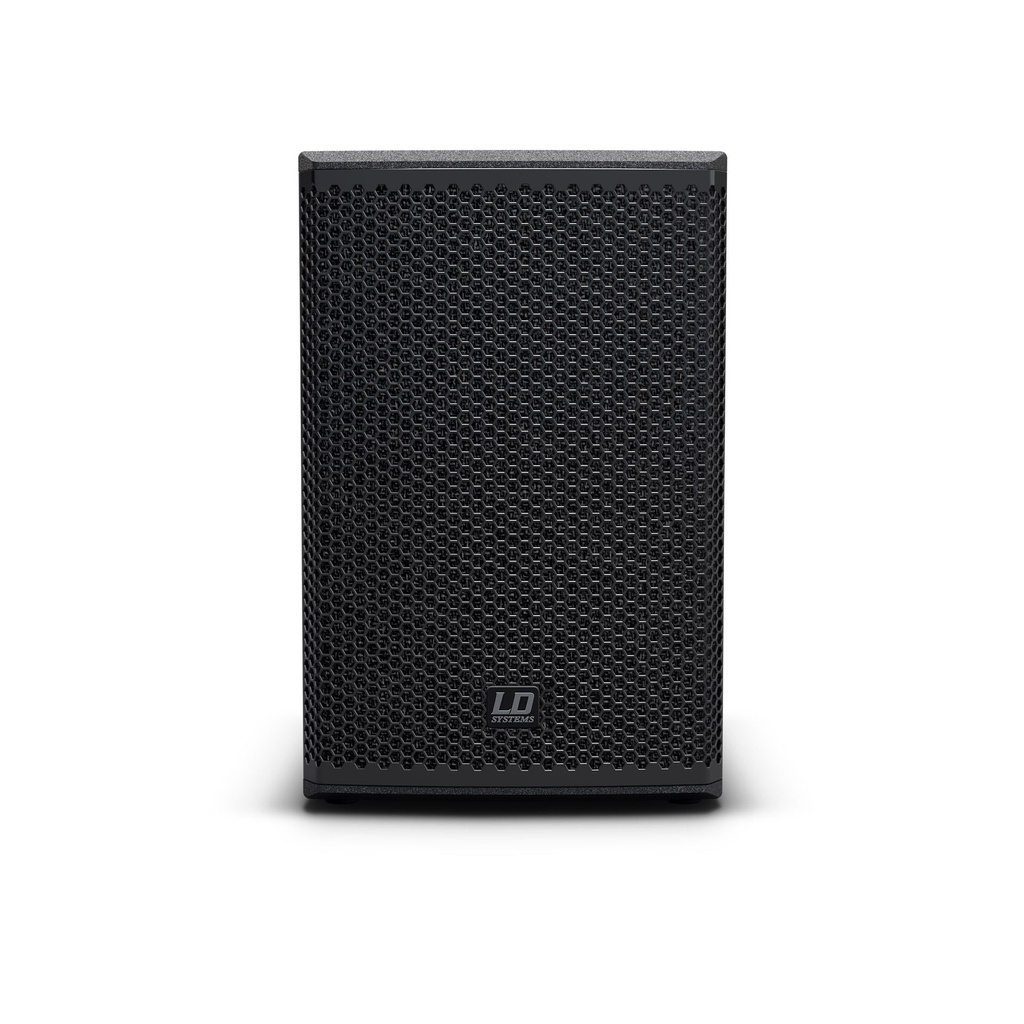

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.
Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

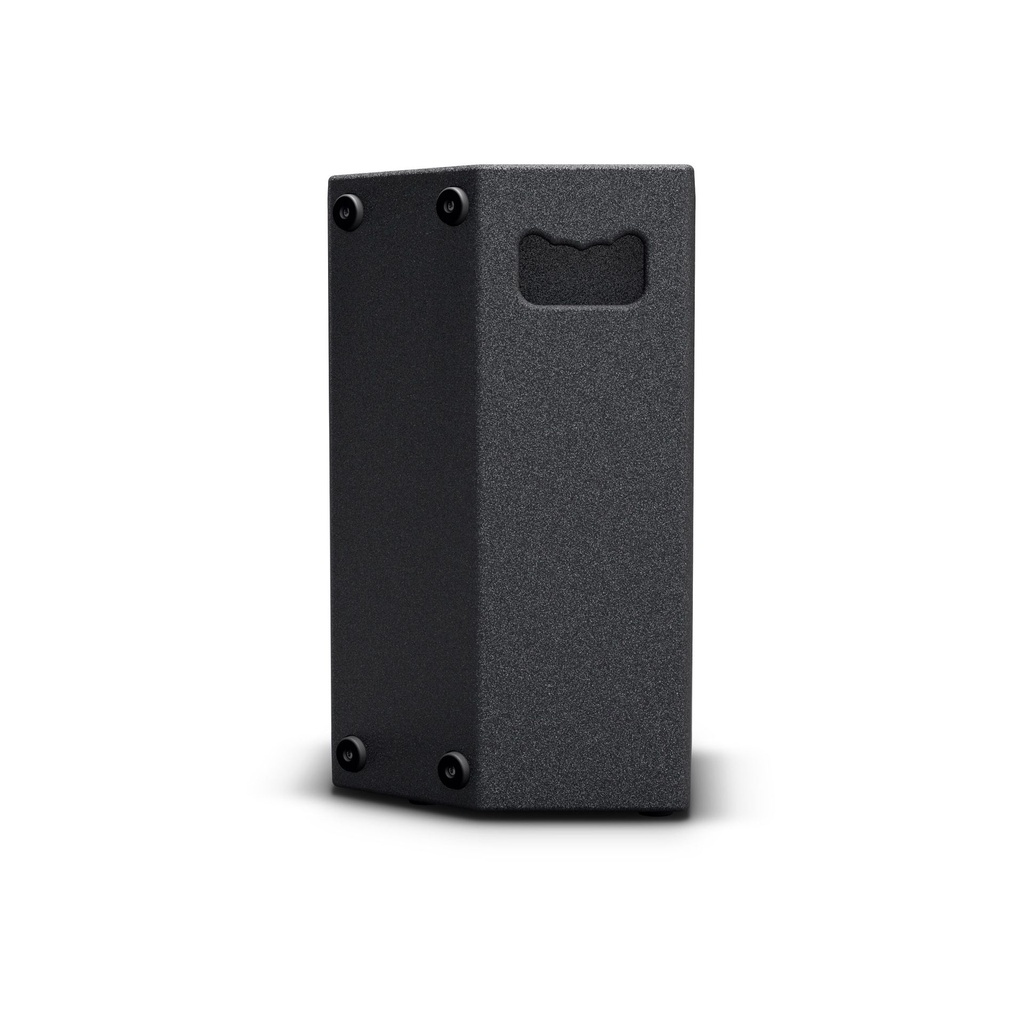

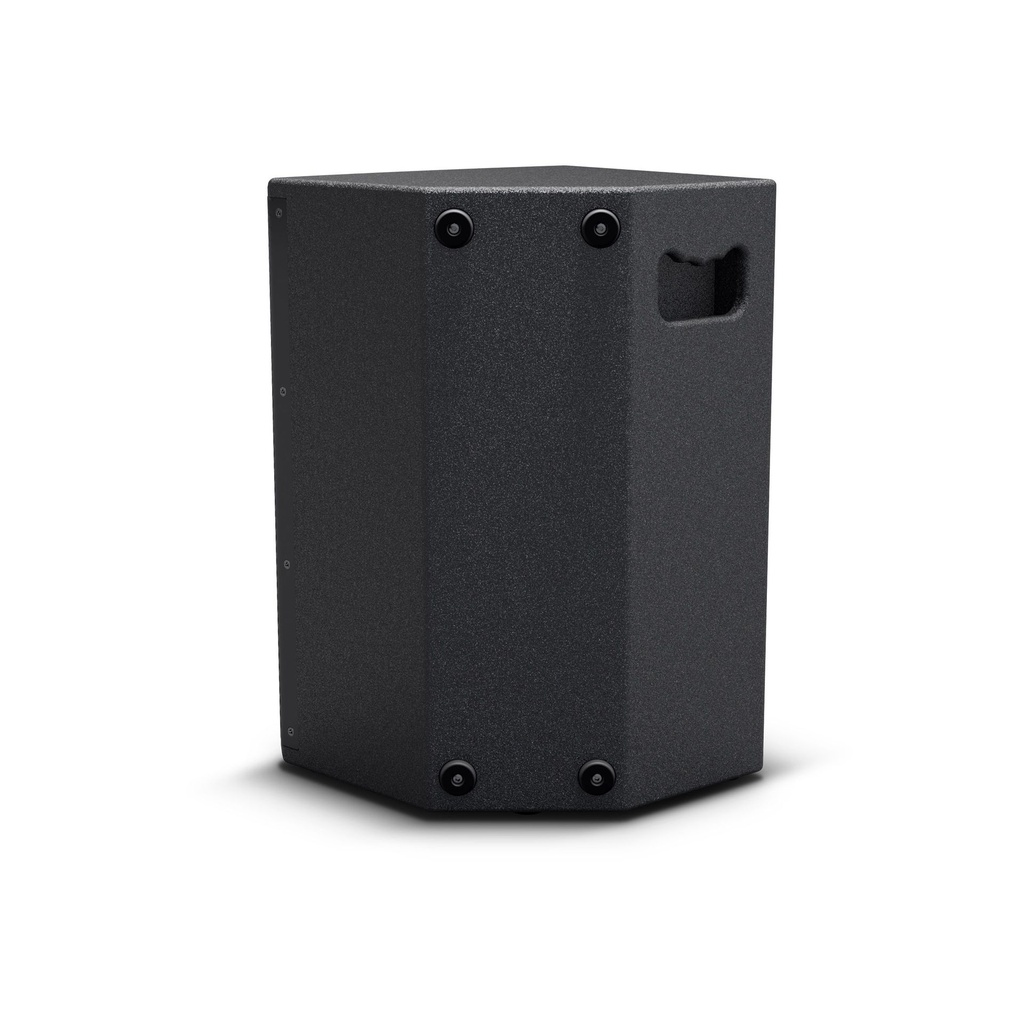

The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.
- 2 x 200 watts RMS class D amplification
- 10” custom woofer and 1” Celestion HF driver
- Integrated 7-channel mixer
- DSP with 16 FX Presets
- Bluetooth® audio streaming
- Standalone mono or stereo applications with LD MIX 10 G3
- Subwoofer and monitor outputs
- Rigid plywood enclosure
- Dual-Tilt pole mount for 0° or 5° orientation
General
| Type (active/passive) | Active |
|---|
| Peak output power | 800 W |
|---|
| RMS output power | 400 W |
|---|
| Amp class | Class D |
|---|
| SysLink® | 0 |
|---|
| Max. SPL peak | 124 dB |
|---|
| Frequency response | 65 |
|---|
| Speaker system | 2-way system |
|---|
| Dispersion | Hor.: 80° / Vert.: 70° |
|---|
| Number of inputs | 6 |
|---|
| Number of outputs | 3 |
|---|
| Output connector types | XLR 3-pole male, Standard speaker connector 4-pole male & speakON® |
|---|
| Protection features | Short circuit, Limiter, Overheating, Overload, Overvoltage |
|---|
| Colour | Black |
|---|
Bluetooth®
| Features | Audio Streaming (A2DP) |
|---|
| Receiver (client) | 0 |
|---|
| Transmitter (host) | 0 |
|---|
Inputs
| Number of microphone inputs | 3 |
|---|
| Mic-in connector type | XLR combo socket |
|---|
| Phantom power | 48 V |
|---|
| Number of instrument inputs | 1 |
|---|
| Inst-in connector type | XLR combo socket |
|---|
| Number of line inputs | 2 |
|---|
| Line-In connector type | XLR combo socket |
|---|
| Number of aux inputs | 1 |
|---|
| Aux inputs connector types | 3.5 mm Jack TRS female |
|---|
Microphone input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. gain) | 70 mV |
|---|
| Input impedance | 14 kΩ |
|---|
Instrument (Hi-Z) input performance
Line input performance
| Nom. Sensitivity (< 1% THD, 1 kHz, max. Gain) | -5 dBu |
|---|
| Input impedance (balanced) | 44 kΩ |
|---|
Signal processing
| Mixer | 1 |
|---|
| Mixer channels | 4 |
|---|
| Audio processing | Digital effects (DFX), 2 band EQ (High, Low), 3 band EQ (High, Mid, Low) |
|---|
Bass driver
| Size | 10 " |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
Tweeter
| Driver size | 1 " |
|---|
| Manufacturer | Celestion |
|---|
Mains operation
| Operation voltage | 110 V AC - 120 V AC / 50 - 60 Hz, 220 V AC - 240 V AC / 50 - 60 Hz |
|---|
| Power supply type | Switched-mode power supply (SMPS) |
|---|
| Rated power | 500 W |
|---|
| Mains connector | IEC C14 plug male |
|---|
Housing
| Design | Bass reflex |
|---|
| Number of handles | 1 |
|---|
| Flange | 36 mm (0°/5°) |
|---|
| Cabinet material | Birch plywood |
|---|
| Material thickness | 16 mm |
|---|
Dimensions & weight
| Width | 315 mm |
|---|
| Height | 489 mm |
|---|
| Depth | 307 mm |
|---|
| Weight | 12.3 kg |
|---|
Other properties
| Included accessories | Mains cable |
|---|
