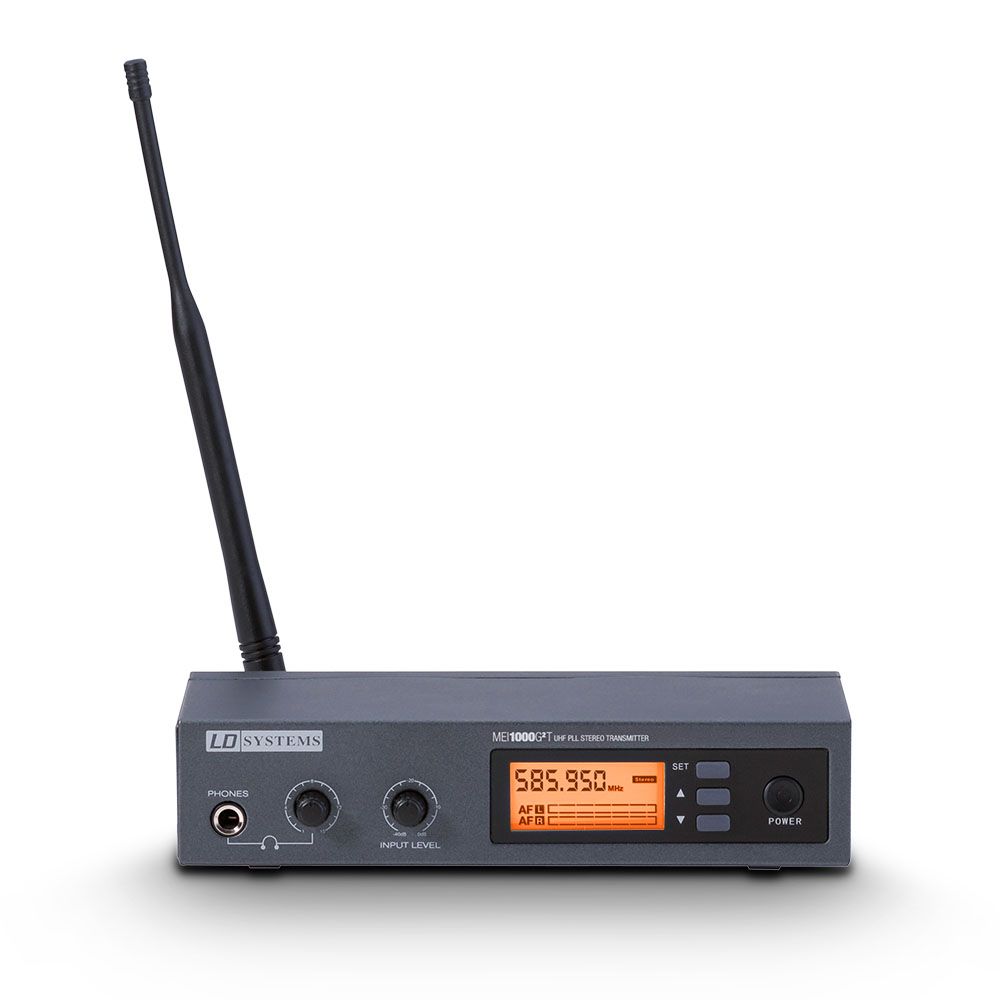

The new LD Systems MEI 1000 G2 B 5 is a In-Ear Monitoring-System with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 584 - 608 Mhz frequency band.
Switchable mono, stereo, and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60 Hz – 16 kHz, a high S/N ratio, and low THD. The LD MEI 1000 G2 permits simultaneous operation of up to 5 systems.
The earphones are very comfortable to wear, and the multifunctional display on the receiver shows all relevant system information. With high quality batteries, it is possible to attain operating times of 12 hours and more. A 19" rackmount kit and a rugged ABS plastic carrying case complete the MEI 1000 G2 package.
General
| Material | Steel sheet |
|---|---|
| Coating | Powder coated |
| Wireless frequencies | 584 - 608 MHz |
| Frequency response (±0.5 dB, rel. Avg) | 60 Hz |
| Colour | Black |
Radio transmission
| Channel groups number | 8 |
|---|---|
| Channels | 96 (8 groups with 12 channels per each) |
| Transmitting power | 10 mW |
| Antennas | BNC female |
| Frequency synchronization via IR | 0 |
Inputs
| Number of line inputs | 2 |
|---|---|
| Line-In connector type | XLR combo socket |
| Input impedance | 14 kΩ |
Signal processing
| Min. Signal-to-noise ratio (SNR) | 85 dB |
|---|
Mains operation
| Operation voltage | 12 V DC - 18 V DC (external power supply) |
|---|
Dimensions & weight
| Width | 200 mm |
|---|---|
| Height | 44 mm |
| Depth | 96 mm |
| Weight | 1.116 kg |
Other properties
| Included accessories | BNC antenna |
|---|
