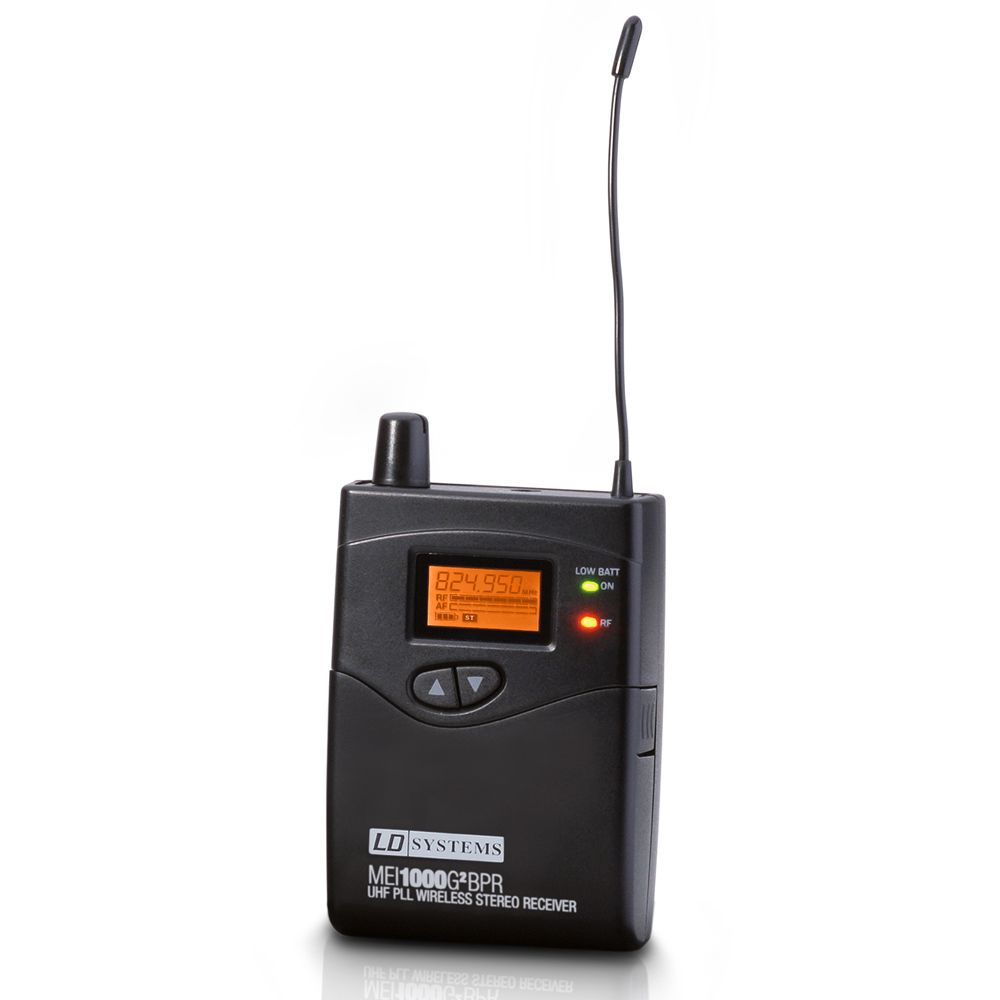

The new LD Systems MEI 1000 G2 is a license-free In-Ear Monitoring-System with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 823 – 832 and 863 – 865 MHz frequency bands.
Switchable mono, stereo, and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60 Hz – 16 kHz, a high S/N ratio, and low THD. The LD MEI 1000 G2 permits simultaneous operation of up to 5 systems. rugged ABS plastic carrying case complete the MEI 1000 G2 package.
* license-free: ISM band license-free in Europe, please check duplex gap for your specific country
General
| Material | ABS |
|---|---|
| Wireless frequencies | 823 - 832 MHz / 863 - 865 MHz |
| Frequency response (±0.5 dB, rel. Avg) | 60 Hz |
| Frequency response (±1 dB, rel. Avg) | 60 Hz |
| Frequency response (-3 dB, rel. Avg) | 60 Hz |
| Frequency response (-6 dB, rel. Avg) | 60 Hz |
| Colour | Black |
Radio transmission
| Channel groups number | 8 |
|---|---|
| Channels | 96 (8 groups with 12 channels per each) |
| Antennas | BNC female |
Outputs
| Headphone out connector type | 3.5 mm Jack TRS female |
|---|---|
| Max. headphone out power | 100 mW |
Signal processing
| Min. Signal-to-noise ratio (SNR) | 80 dB |
|---|---|
| Max. THD+N (1 kHz, +4 dBu, unity, unweighted) | 1 % |
Battery operation
| Batteries | 2 x 1.5 V AA/LR6 @ max.12 h |
|---|---|
| Built in battery tester | 0 |
Dimensions & weight
| Width | 65 mm |
|---|---|
| Height | 90 mm |
| Depth | 24 mm |
| Weight | 100 g |
