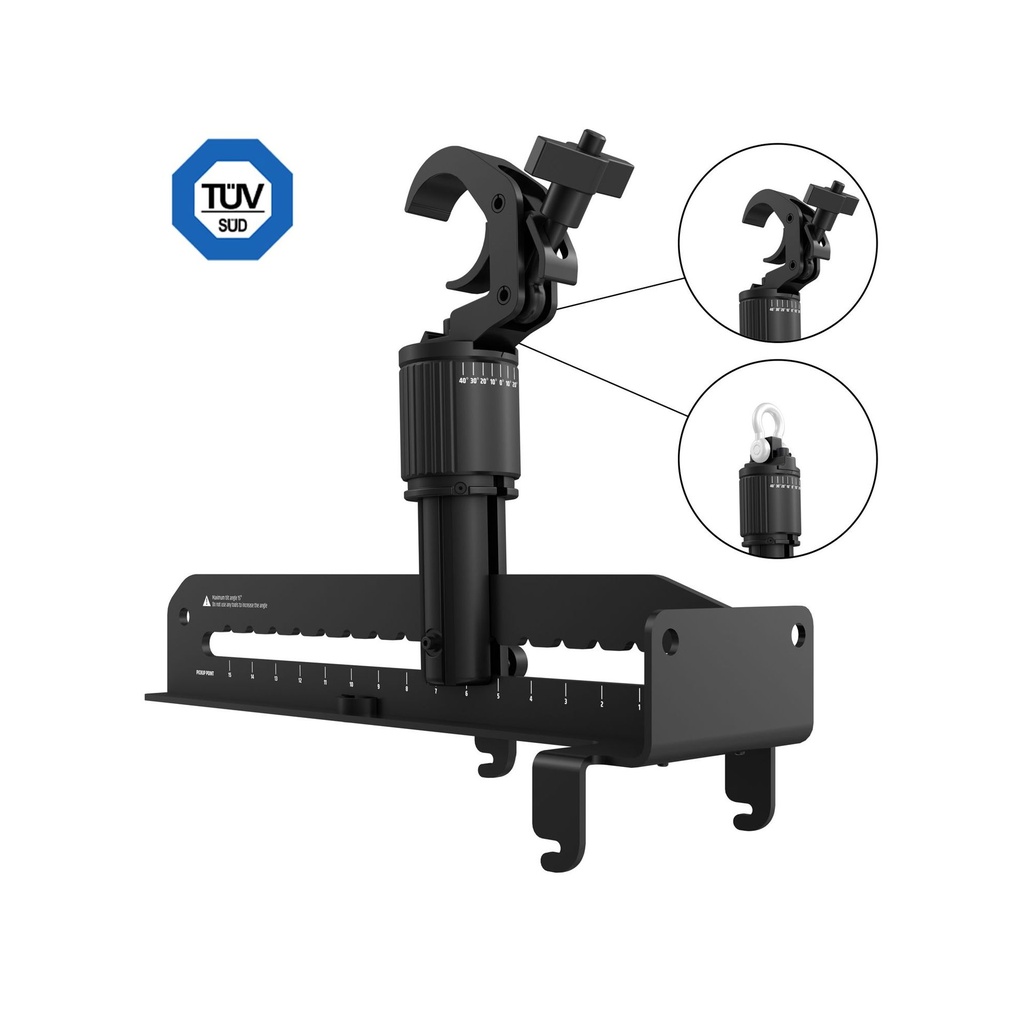

The EasyMount+® mounting adapter enables truss or shackle mounting of MAILA array configurations in flown applications. The “DGUV regulation 17”-compliant mounting adapter made of steel with a robust powder coating can be attached to the MAILA SPA and COL amplifier module - the basis of every flown MAILA configuration - without the use of tools and suspended from the truss via a "self-lock" tube clamp. A "self-lock" rake is included in the scope of delivery for attaching to the truss. Alternatively, the system can be suspended using the shackle bracket included in the scope of delivery.
Once mounted, the EasyMount+® bracket enables convenient 360° rotation and alignment of flown MAILA configurations - even under load with several attached MAILA SAT or MAILA COL modules. The mount can be equipped with a maximum of 8x SAT + 1x COL. A clever collar secures the vertical alignment of the loudspeaker array and allows it to be adjusted in the blink of an eye.

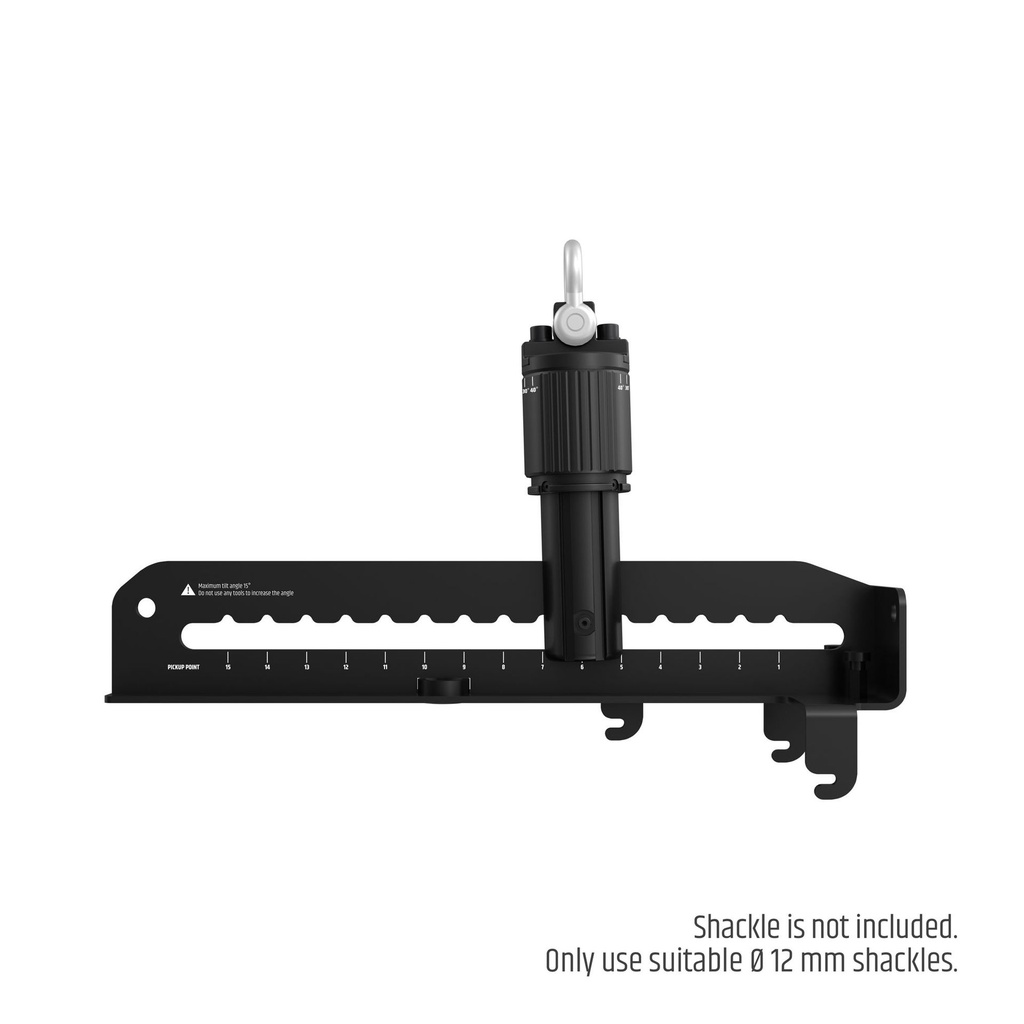

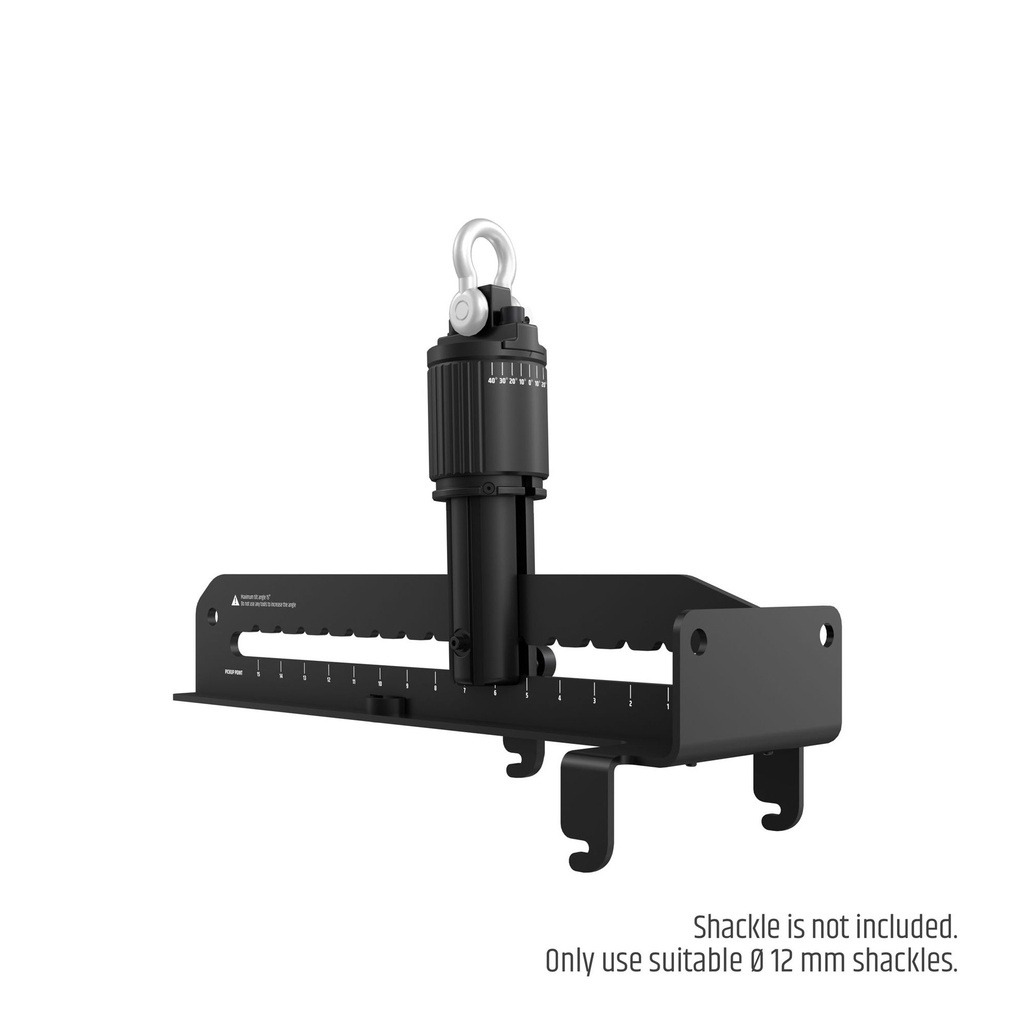

Note: A shackle is not included in the scope of delivery.Only use suitable shackles Ø 12 mm!
- Truss mount adapter for flown MAILA set-ups
- Enables truss or shackle mounting
- Easy 360° alignment even under load
- Tool-free assembly

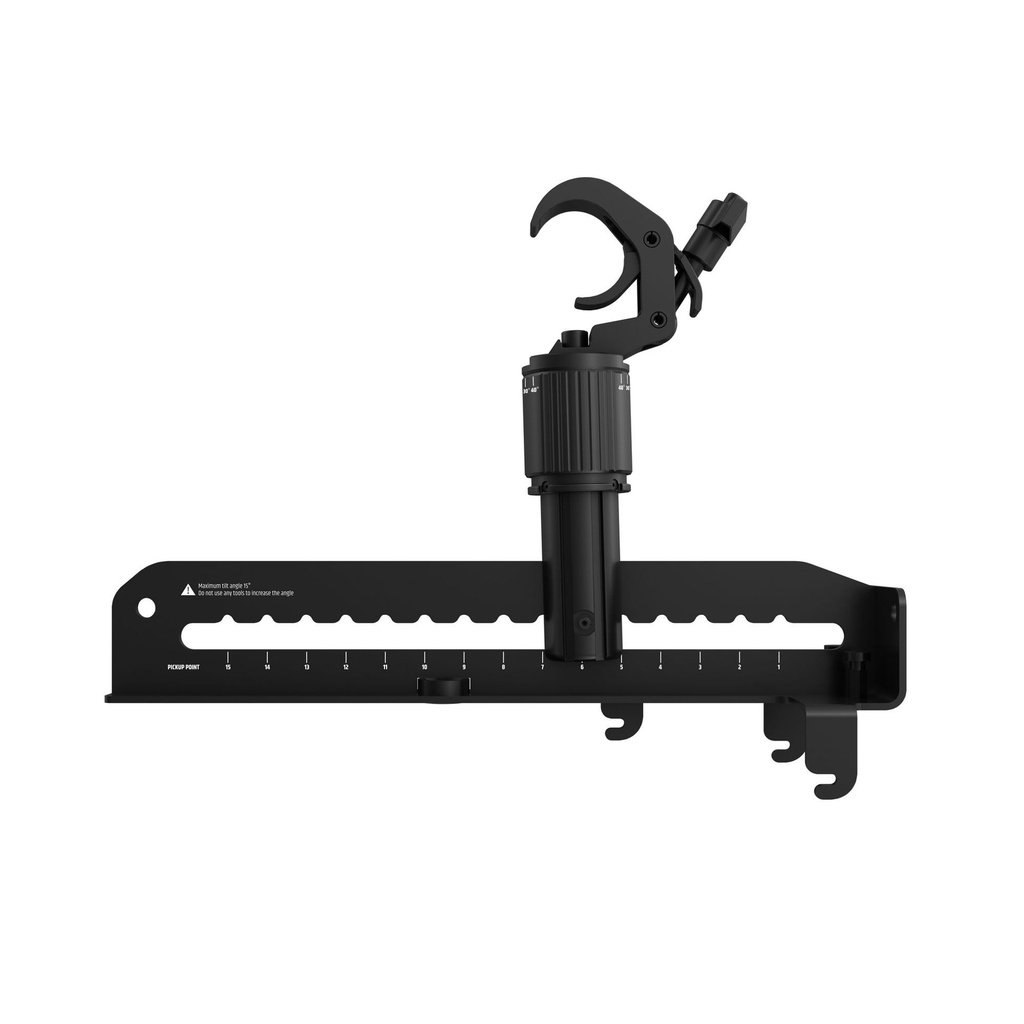

- Selflock tube clamp for easy truss attachment
- Steel construction with powder coating
- Conform to DGUV regulation 17 (BGV C1).
- Max. load capacity: 105 kg
General
| Mounting | Clamp |
|---|---|
| Maximum load | 105 kg |
| Material | Steel |
| Coating | Powder coated |
| Held object detachable | 0 |
| Colour | Black |
Dimensions & weight
| Tilt angle | 15 ° |
|---|---|
| Clamp range | 35 mm |
| Width | 149 mm |
| Height | 356.5 mm |
| Depth | 458.9 mm |
| Weight | 5.41 kg |
