LD Systems MAILA SUB 15 FB

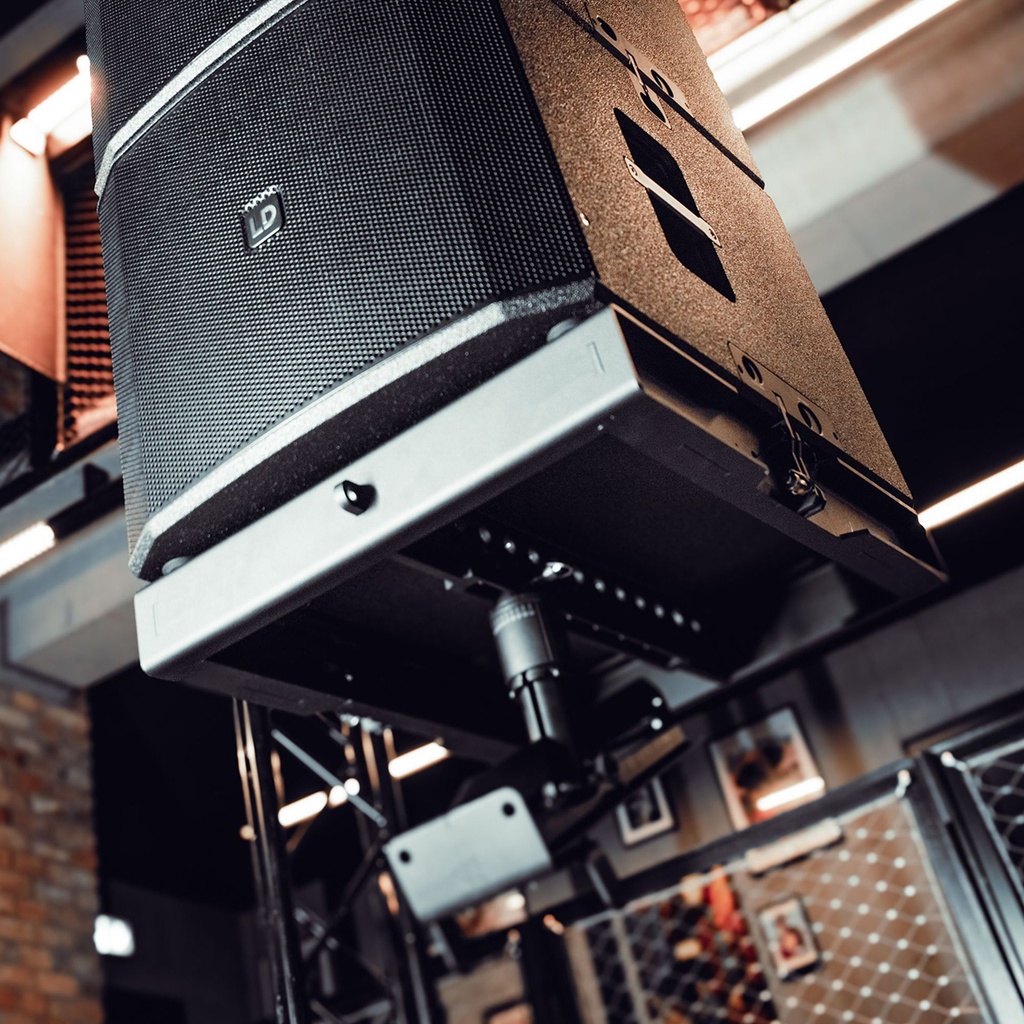

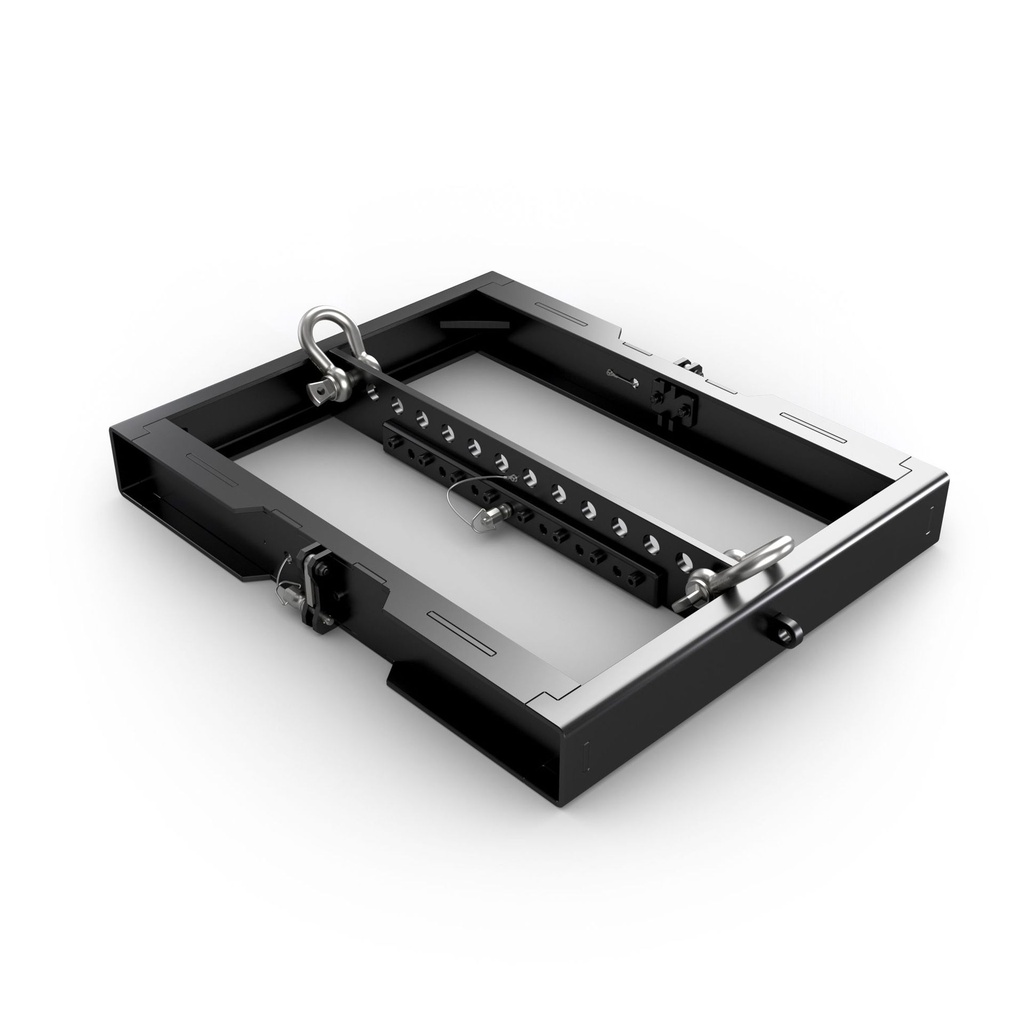

MAILA SUB 15 FB is the dedicated flying bracket to hang MAILA SUB 15 F (P). Designed for fast, secure and convenient rigging workflows on site, it attaches without tools via ball lock pins to the FastRig® mechanism built into the subwoofers. Multiple shackle positions provide flexibility when configuring the rig.

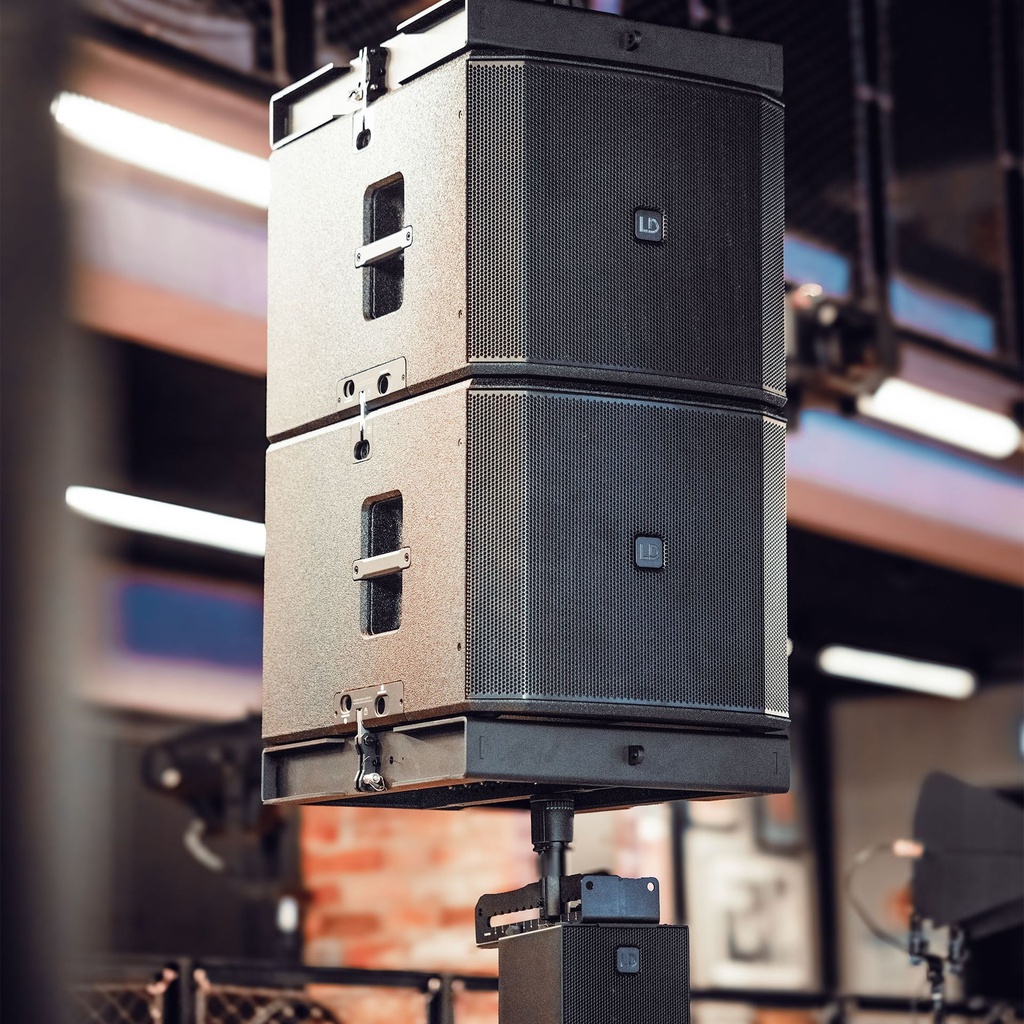

The flying bracket can also be fitted to the lowest subwoofer to suspend a MAILA array underneath the flown sub hang, in combination with EasyMount+® . The bracket supports up to six SUB 15 F (P) per hang or combined subwoofer/array configurations up to a maximum total load of 300 kg / 660 lbs.

• Flight hardware for mounting MAILA SUB 15 F (P)
• Supports 6 × SUB 15 F (P) or up to 300 kg total load
• Can be attached to the bottom of the subwoofer to suspend a MAILA array underneath via EasyMount+®

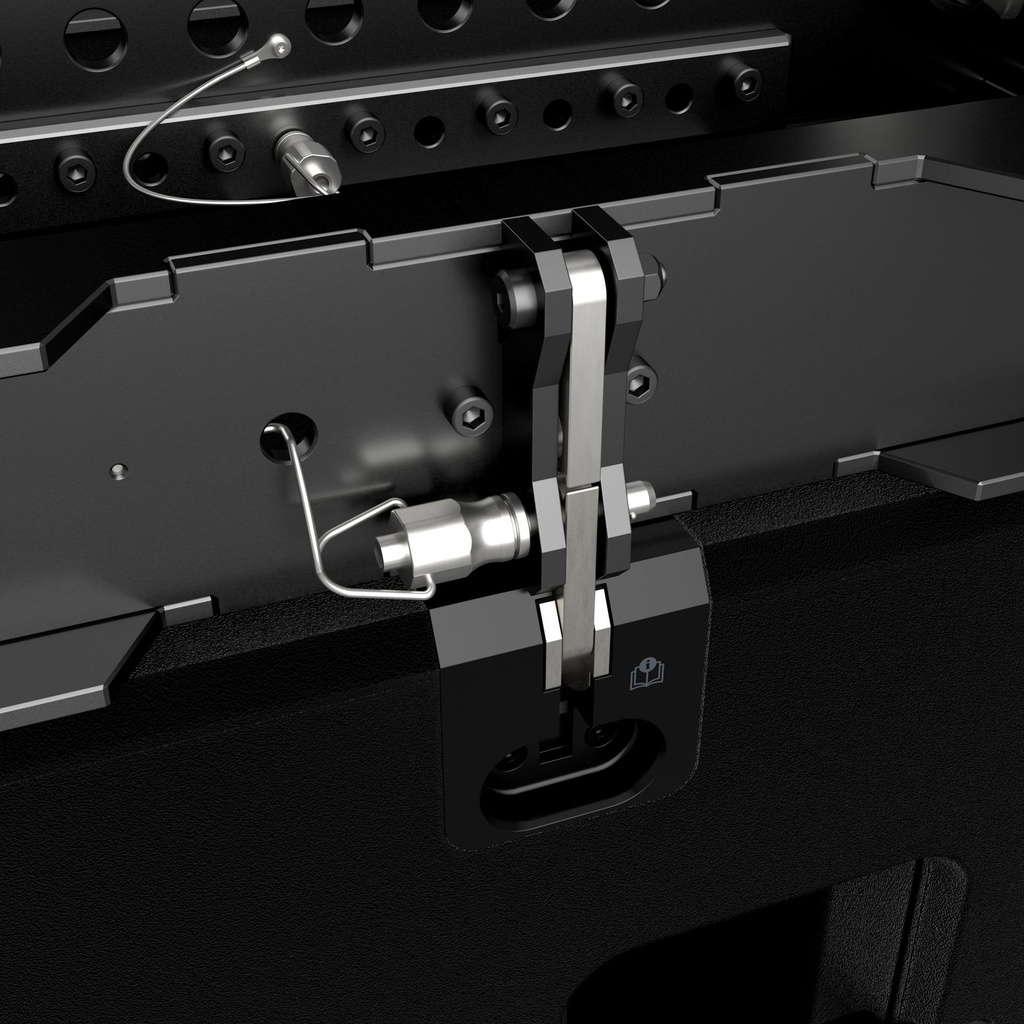

• Tool-free and quick attachment via ball-lock pins
• Multiple shackle positions for flexible rigging set-ups
