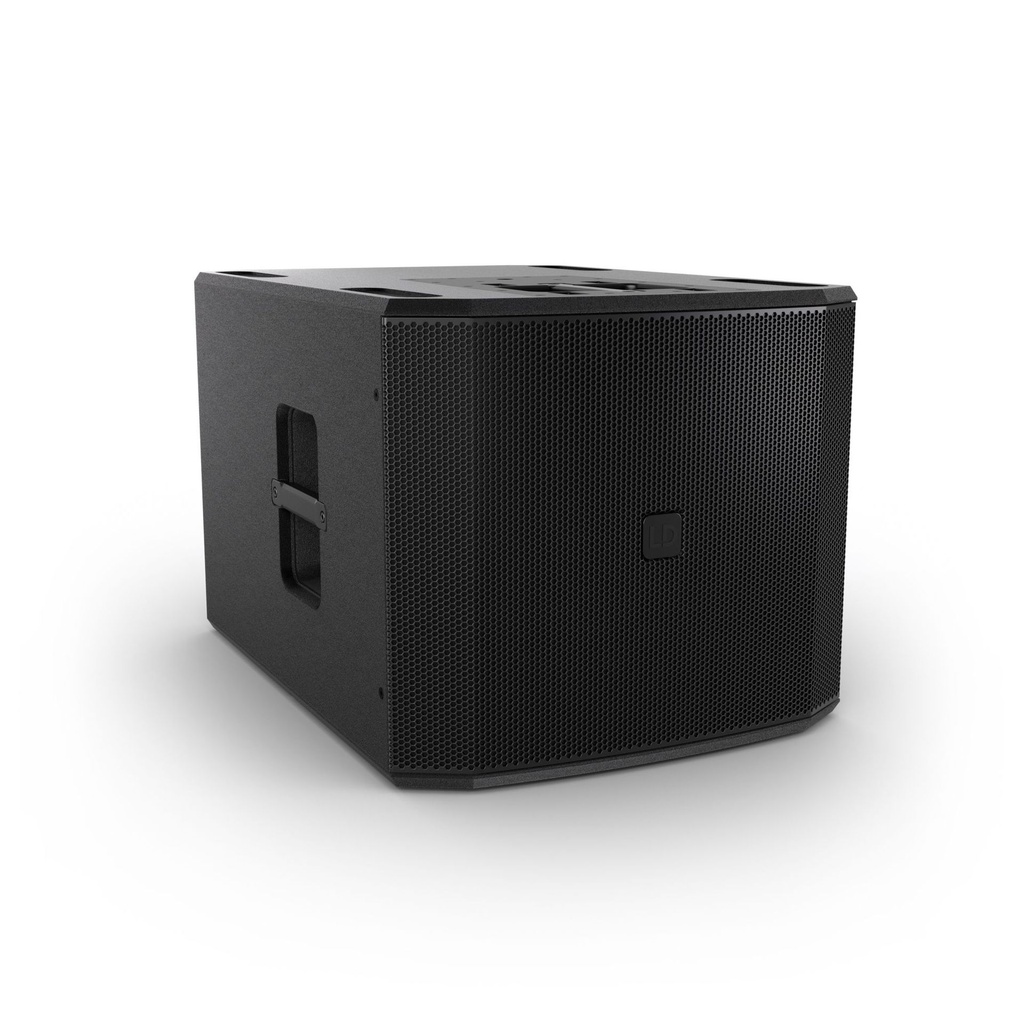

MAILA SUB 15 is the compact, low-frequency option within the active MAILA system, delivering strong bass extension in a compact housing. The 1.25 kW 1 × 15" bass reflex subwoofer, with its SysCore® DSP delivers controlled low-end with the punch and definition required for modern live sound.
SUB 15 supports ground stacks of up to three units. The docking plate on the top side allows a M20 speaker pole or a MAILA COL to be mounted directly onto the subwoofer.

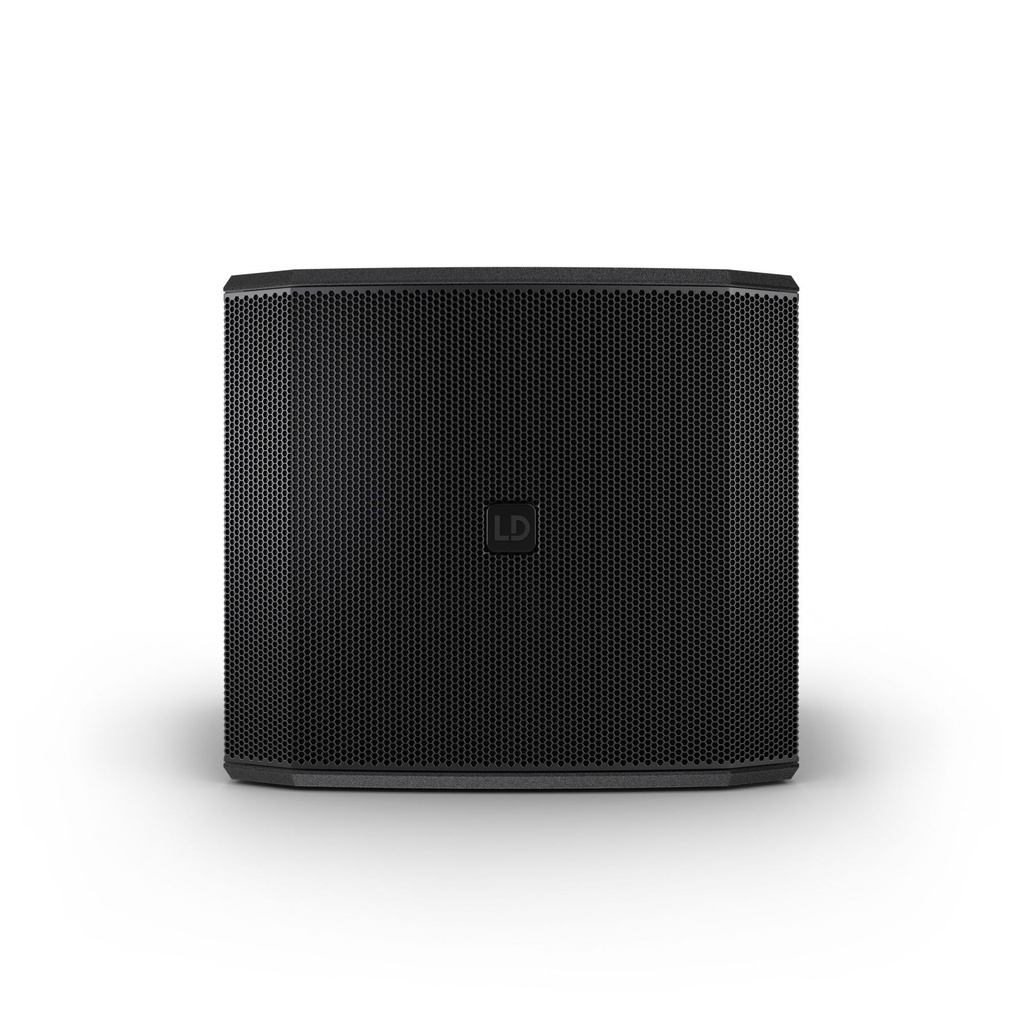

The free MAILA app (iPadOS) connects via LogoLink® wirelessly to the subwooder, for quick setup, control and updates. Once connected, the app recognises the available MAILA components and enables the system to be set up quickly and easily. The wireless LogoLink® antennas are invisibly integrated into the LD logo of the MAILA SUB 15.
Built in a rugged wooden cabinet with a durable touring-grade polyurea coating, MAILA SUB 15 is designed to withstand demanding day-to-day use.
- 1 × 15" high power bass reflex subwoofer
- Integrated power amplifier with SysCore® DSP and 1.25 kW total output power
- Bass reflex design with airflow-optimised ports
- Frequency response (-6 dB): 34 Hz - fx
- DSP control on the device or via the free MAILA app (iPadOS)
- Cardioid presets for reduced rear sound radiation
- Docking plate for set-ups with pole (M20) or MAILA COL
- Wink-LED for individual speaker identification
- Scalable deployment in ground stacks (up to three units)
- LogoLink®: wireless antennas integrated into the LD logo for app connection
- Rugged wooden cabinet with polyurea coating
General
| RMS output power | 1250 W |
|---|---|
| Amp class | Class D |
| SysLink® | 0 |
| Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %) | 126 dB |
| Max. SPL peak (pink noise, halfspace/1 m, CF 4) | 132 dB |
| Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %) | 124 dB |
| Low frequency limit (-3 dB, rel. Avg.) | 37 Hz |
| Low frequency limit (-6 dB, rel. Avg.) | 34 Hz |
| Low frequency limit (-10 dB, rel. Avg.) | 31 Hz |
| Number of inputs | 1 |
| Input connector types | XLR 3-pole female |
| Number of outputs | 1 |
| Output connector types | XLR 3-pole male |
| Protection features | Limiter, Overheating, Overload |
| Colour | Black |
Bluetooth®
| Bluetooth® version | 4.2 |
|---|---|
| Features | App control |
| Receiver (client) | 0 |
| Transmitter (host) | 0 |
Line input performance
| Input impedance (balanced) | 20 kΩ |
|---|
Signal processing
| Mixer | 0 |
|---|---|
| Audio processing | Fully parametric 10-band EQ, Delay Line, Presets |
| AD/DA converter bit depth | 24 Bit |
| AD/DA converter sampling rate | 48 kHz |
Bass driver
| Size | 15 " |
|---|---|
| Magnet | Neodymium |
| Voice coil | 4 " |
Mains operation
| Operation voltage | 100 V AC - 240 V AC / 50 - 60 Hz |
|---|---|
| Power supply type | Switched-mode power supply (SMPS) |
| Rated power | 750 W |
| Mains connector | Mains socket indoor power in male & powerCON® |
Housing
| Design | Bass reflex |
|---|---|
| Number of handles | 3 |
| Cabinet material | Birch multiplex |
| Coating | Polyurea |
| Front grille material | Aluminium |
Cooling
| Cooling system | Convection cooling |
|---|
Environmental
| Ambient temperature | 0 °C |
|---|---|
| Maximum air humidity (non-condensing) | 80 % |
Dimensions & weight
| Width | 540 mm |
|---|---|
| Height | 474 mm |
| Depth | 761 mm |
| Weight | 38 kg |
