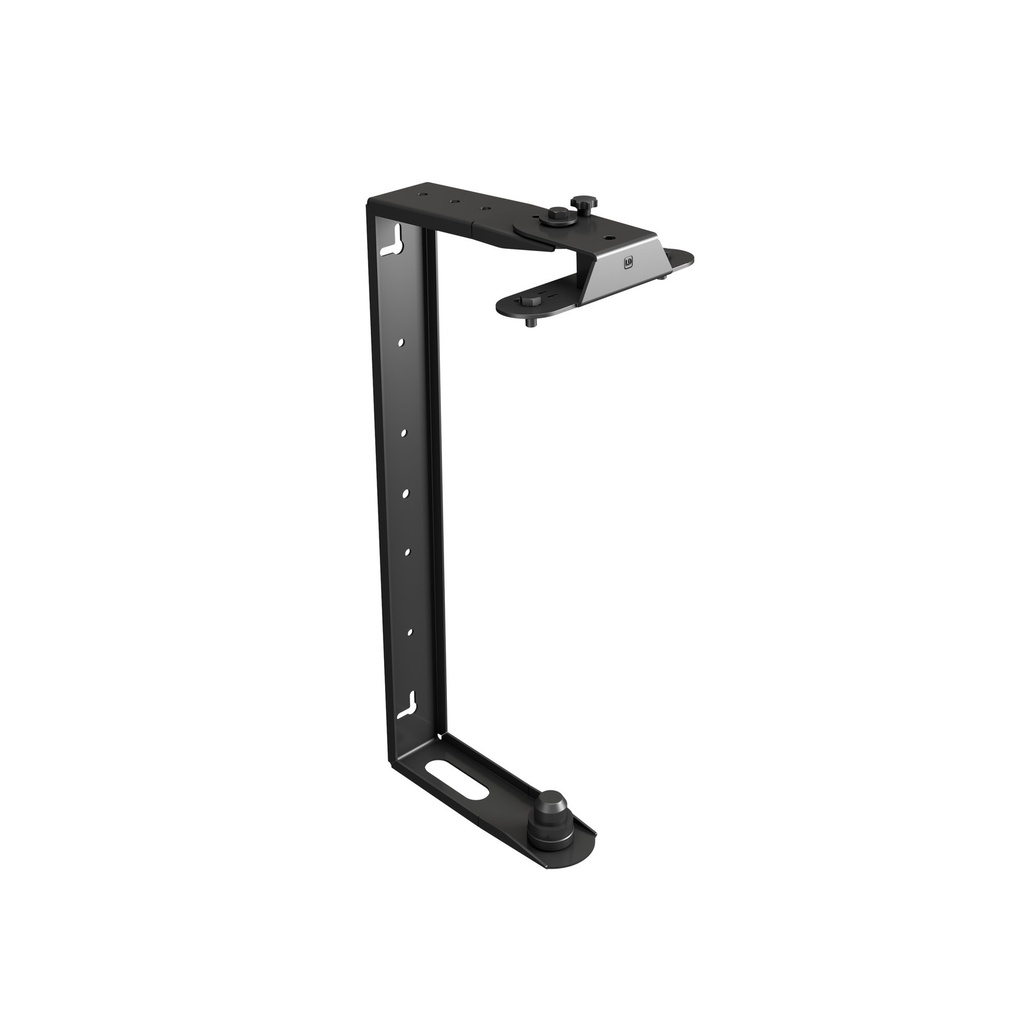

The freedom to achieve the sound you want is the concept behind the ICOA® and its matching U-mounting bracket as well.
It gives you complete flexibility to mount the ICOA® in different ways - to the wall, either horizontally or vertically, or to a truss using an optional clamping tool.
You can install the bracket on the wall with six screws and quickly and effortlessly "click" your ICOA® into place with the Easy-Click system. All that's left to do is to fasten everything down with a safety screw.
The U-bracket's cable feedthrough behind the ICOA® keeps things looking neat and tidy. Once the ICOA® is installed, you can freely swivel it around in 10°-increments up to 180°. Enough flexibility to find your ideal angle.
- Universal bracket for horizontal or vertical wall attachment
- Truss mounting with optionally available clamp
- Easy-Click System
- Rotatable in 10° increments up to 180° with scaling indicator
- Five holes for M10 screws
- Six holes for wall installation
- Cable feedthrough
- Load capacity up to 24 kg
General
| Material | Steel |
|---|---|
| Coating | Powder coated |
| Colour | Black |
Dimensions & weight
| Weight | 3.7 kg |
|---|
