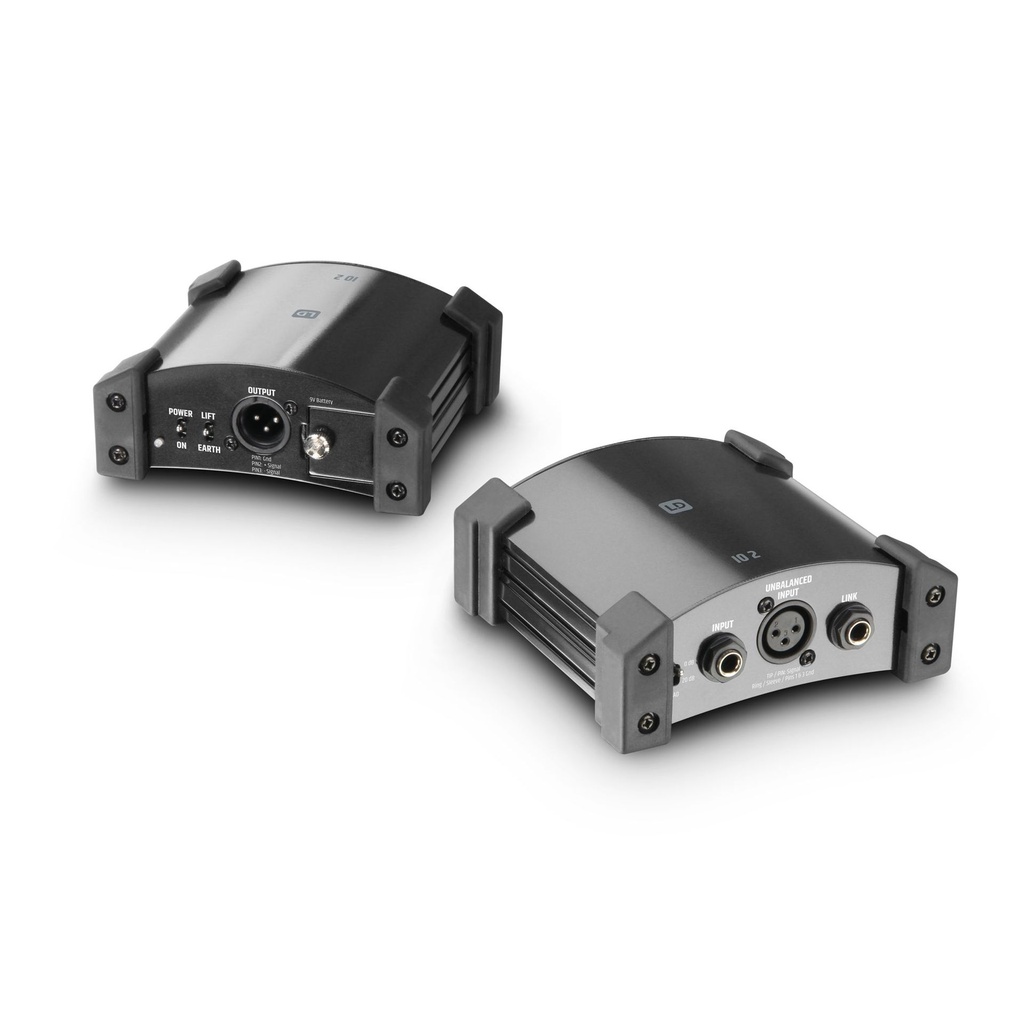

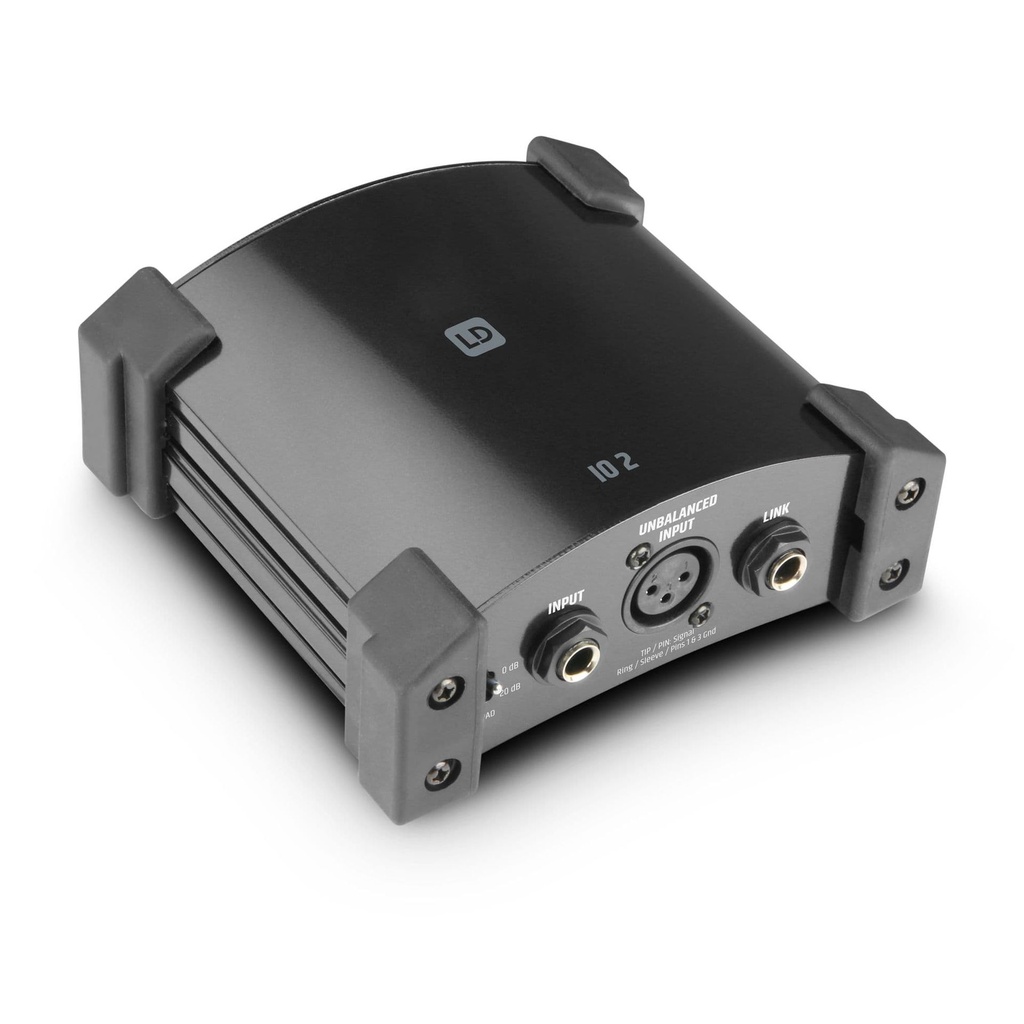

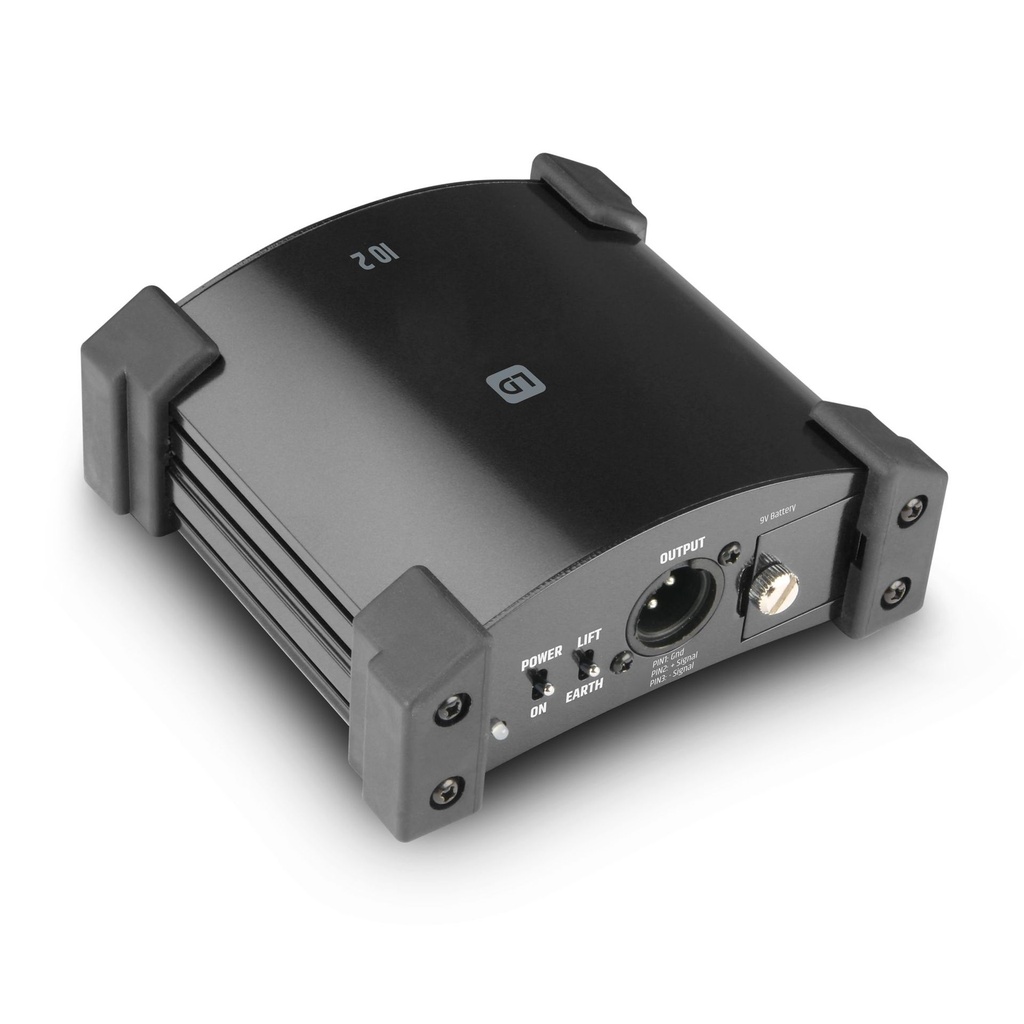

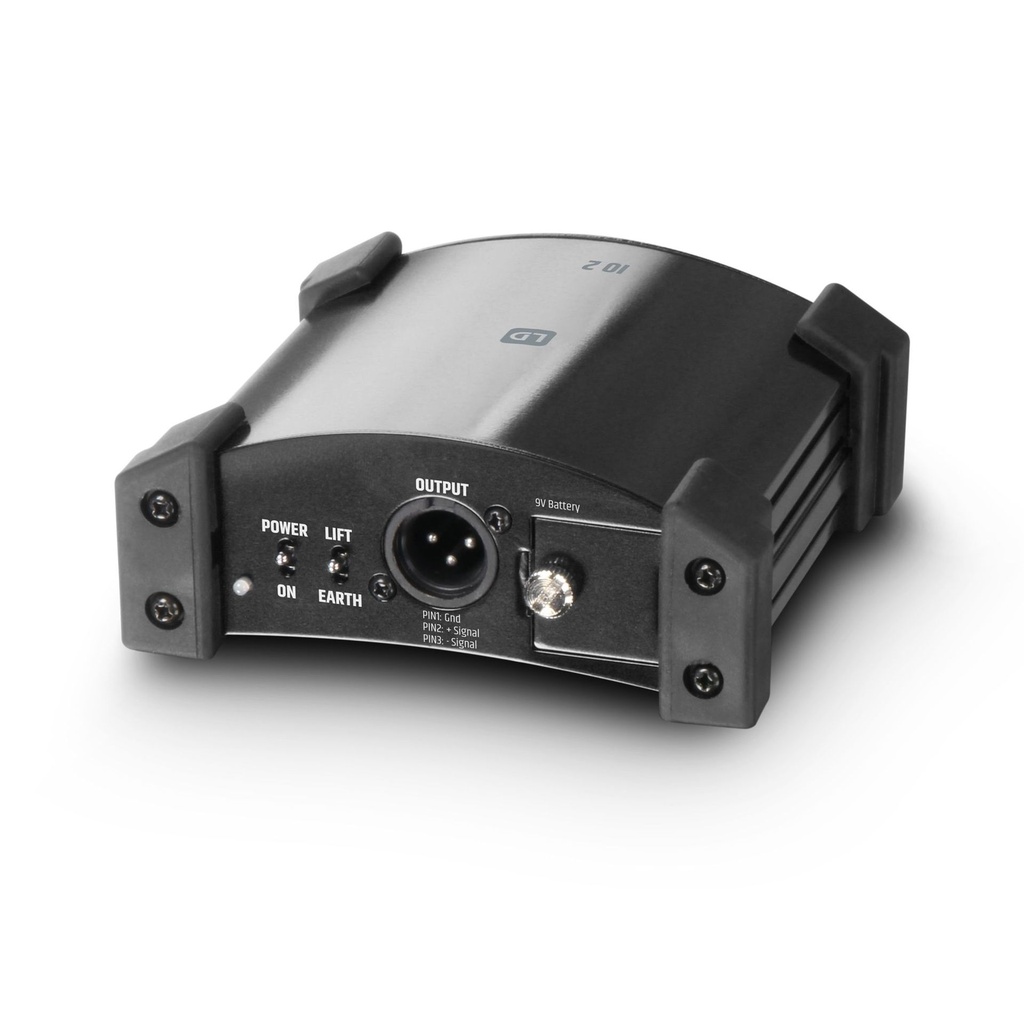

Active DI box in a sturdy metal housing (aluminium/steel) with protective corners, silver-blue metallic, internal battery (9 V flashes during operation) is switched off automatically when phantom power is used (LED permanently illuminated),
extremely low battery consumption. Battery: 9 V block (not included).
General
| Product type | DI boxes |
|---|---|
| Channels | 1 |
| Inputs | 2 |
| Input connectors | XLR, 6.3 mm jack |
| Max. input level | + 10 / + 30 dBu dBu |
| Input impedance | 1 M |
| Number of outputs | 1 |
| THRU outputs/channel | 1 |
| Output connectors | XLR |
| Frequency response | 20 - 20,000 |
| Total Harmonic Distortion (THD) | < 0.0015 % @ 1 kHz |
| Indicators | Power |
| Controls | Power, ground lift |
| Power supply | 9 V block, +48 V phantom power |
| Cabinet material | Metal |
| Cabinet surface | painted |
| Width | 135 mm |
| Depth | 128 mm |
| Height | 53 mm |
