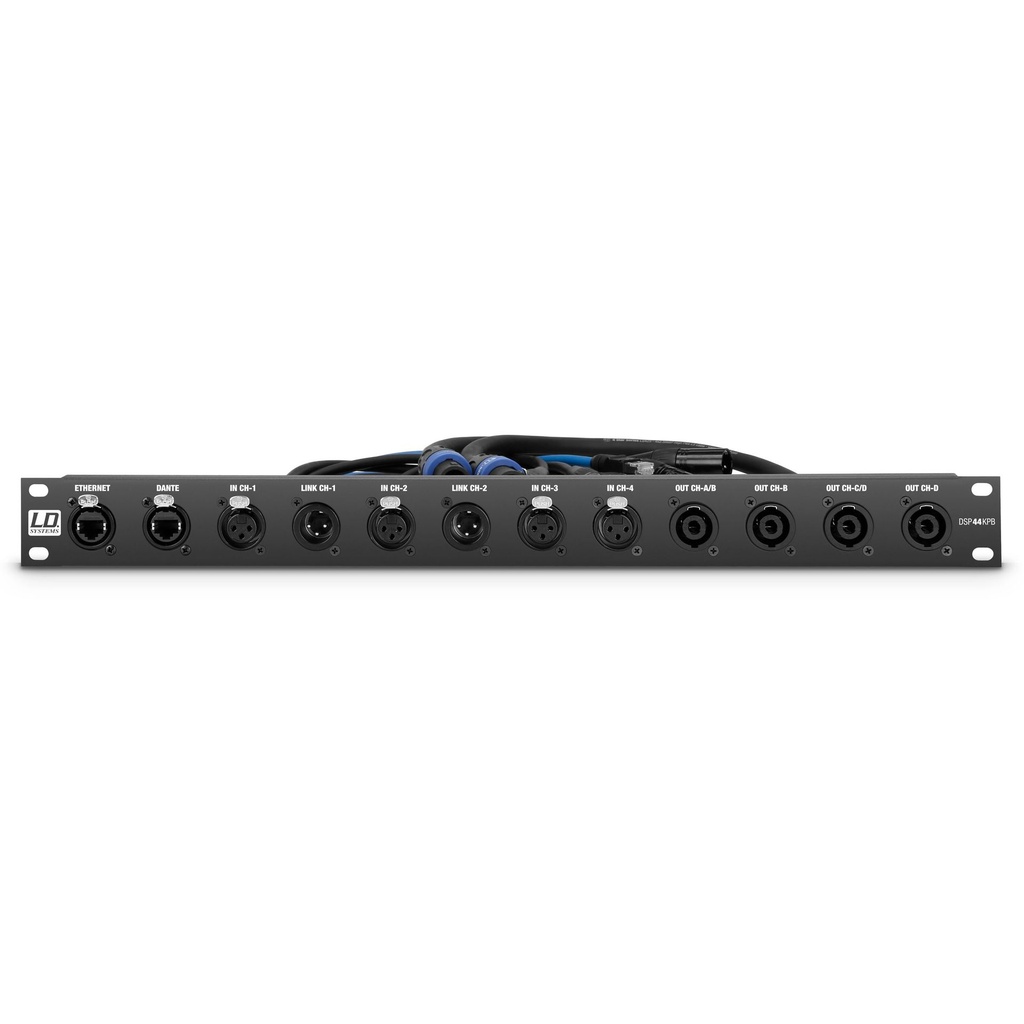

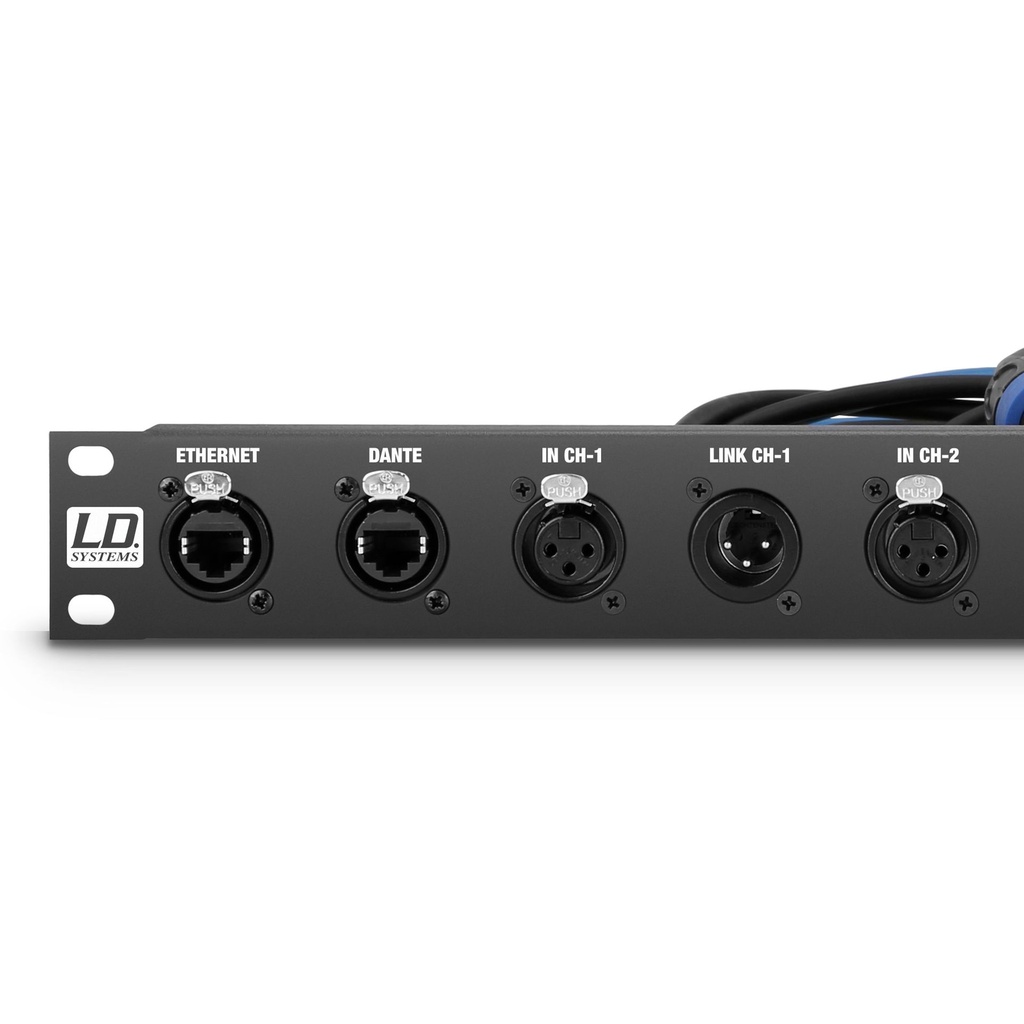

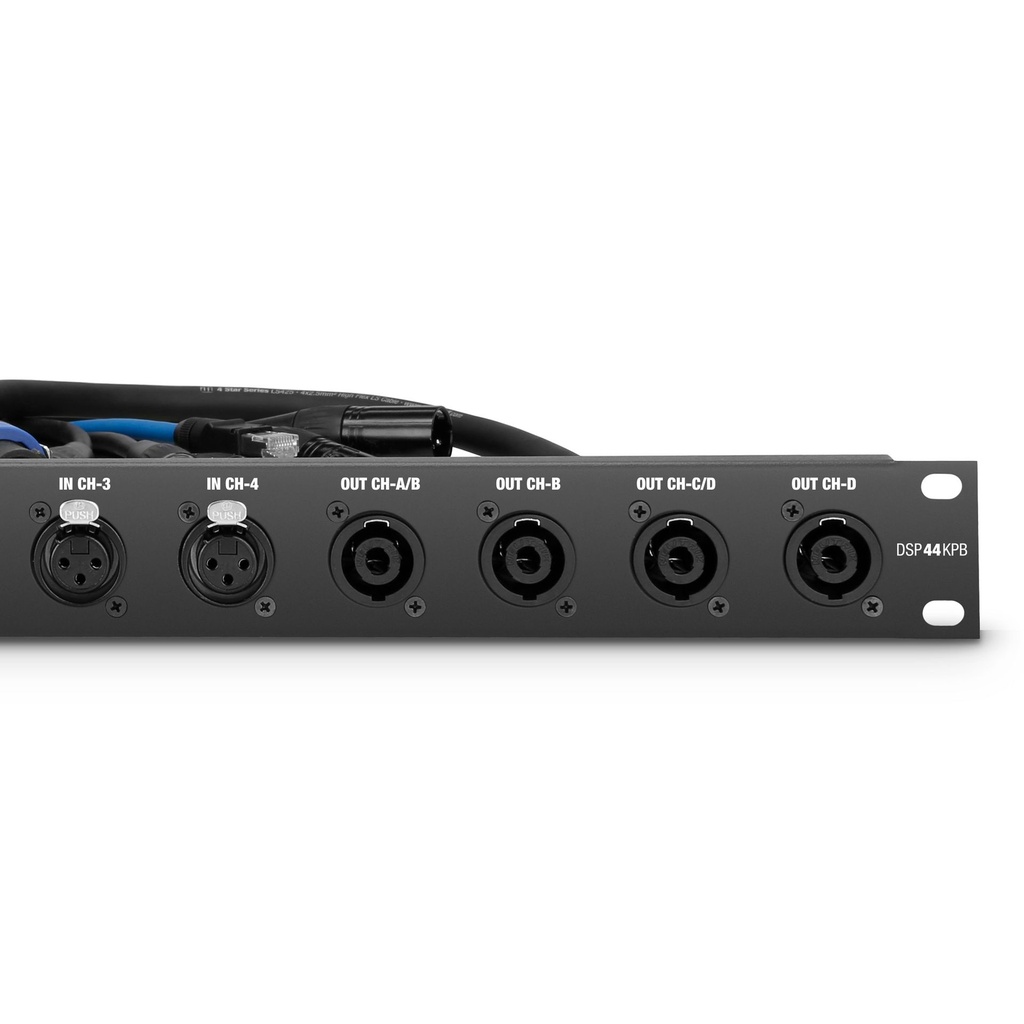

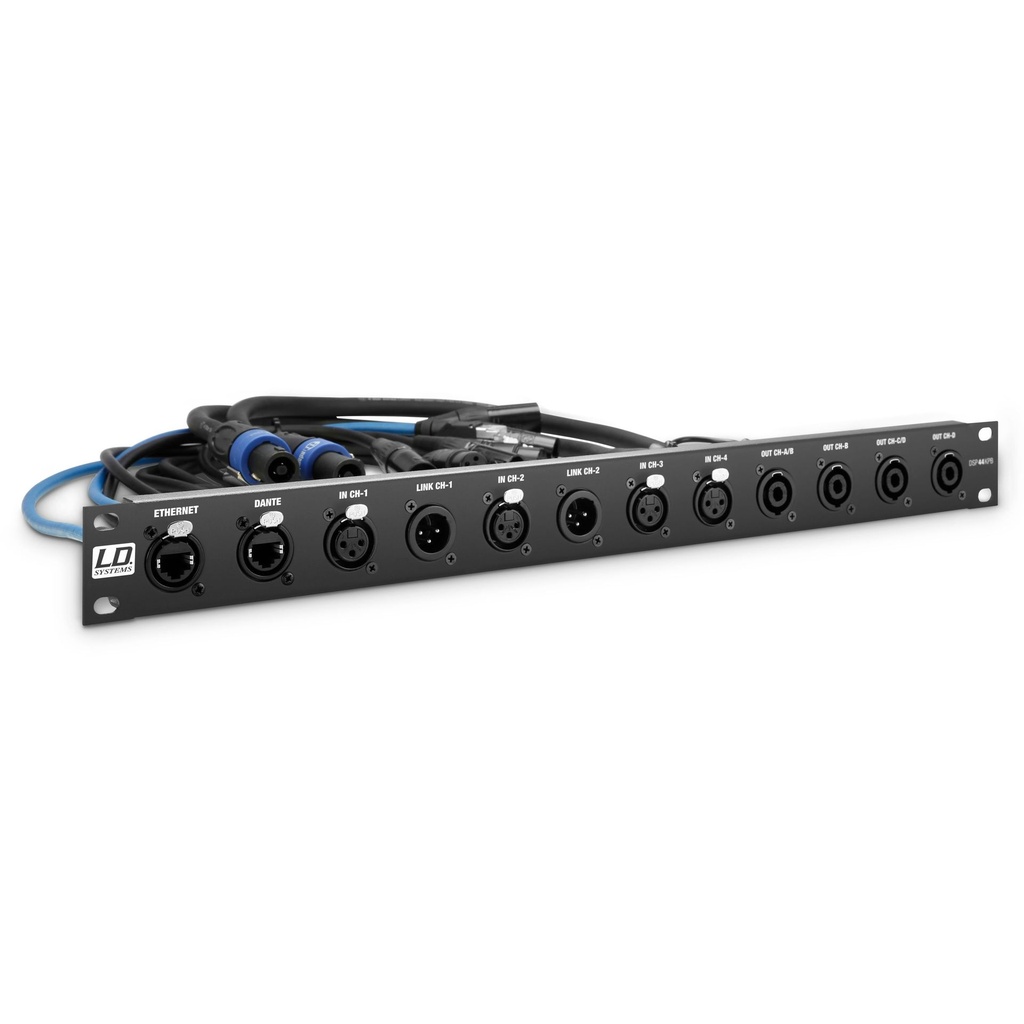

This 19-inch patch bay for the LD Systems DSP 44 K facilitates convenient access to the power amplifier’s inputs and outputs from the rack front. The powder-coated 1 U steel panel features 4 x Neutrik speakON, 4 x Neutrik XLR female, 2 x Neutrik XLR male and 2 x RJ45 sockets for connection and signal routing flexibility.
- 1 U 19-inch power amplifier patch bay
- Steel with black powder coating
- 4 x speakON, 4 x XLR/f, 2 x XLR/m, 2 x RJ45
- Neutrik sockets
General
| Product type | Power Amplifier Accessories |
|---|---|
| Connectors | 4 x Neutrik XLR Chassis Socket, 2 x Neutrik XLR Chassis Connector, 2 x RJ45, 4 x Neutrik Speakon |
| Type | 19" / 1 U |
| Length | 483 mm |
| Height | 44.5 mm |
| Depth | 110 mm |
| Material | Steel |
| Material thickness | 1.5 mm |
| Surface | Powder coated |
