LD Systems DIO 04

4 output Dante interface

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: LDDIO04

الفئة: واجهات ومحوّلات صوت

العلامة التجارية: LD Systems

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

Part of the TICA® series, the DIO 04 is a four output Dante interface that delivers the capabilities that audio and AV professionals really need. Equipped with four balanced outputs to connect to any analogue audio device such as power amplifiers. Signal presence lights on each channel speed installation and fault-finding.

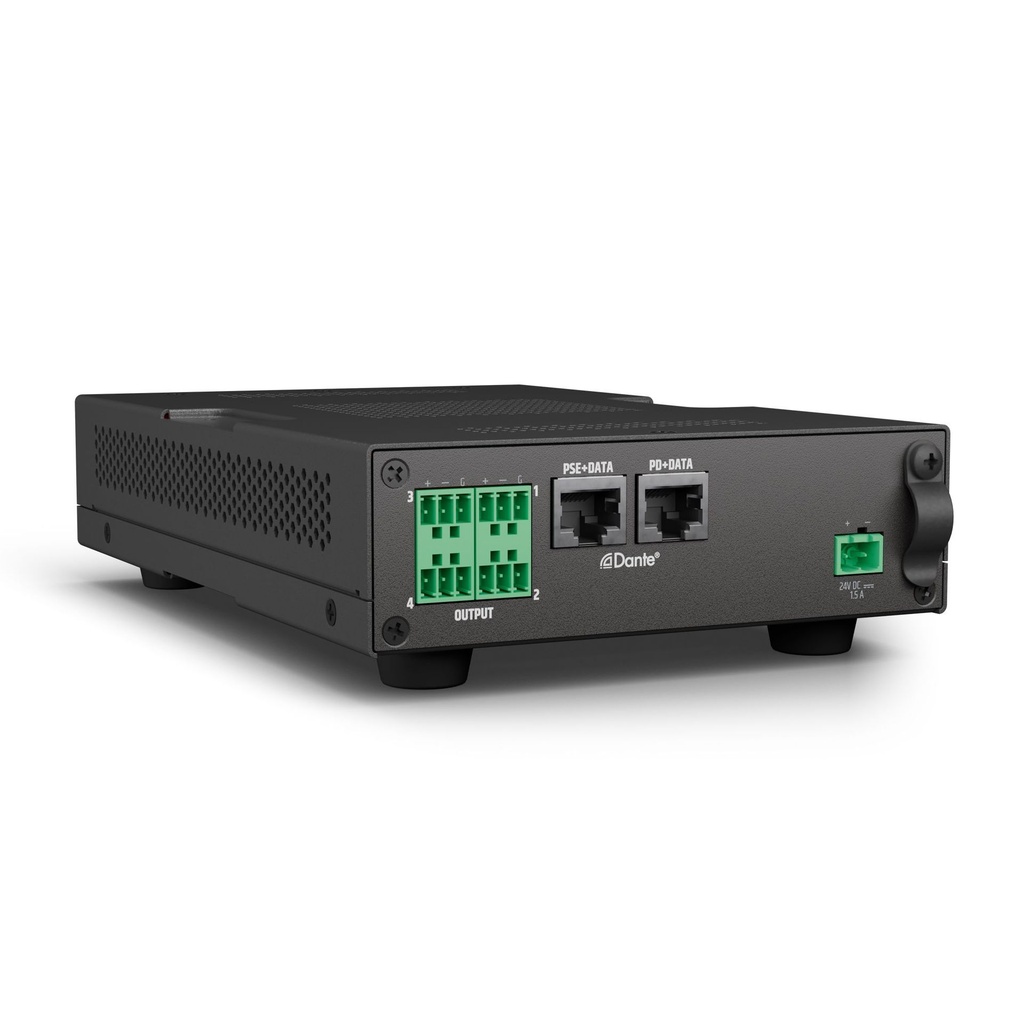

Power from any PoE+ network switch or use the optional, external power supply. Since it comes with two Dante networked ports, you can daisy chain devices together. It also works as a PoE+ injector: if you use the external power supply, you can power one further networked device in the chain.

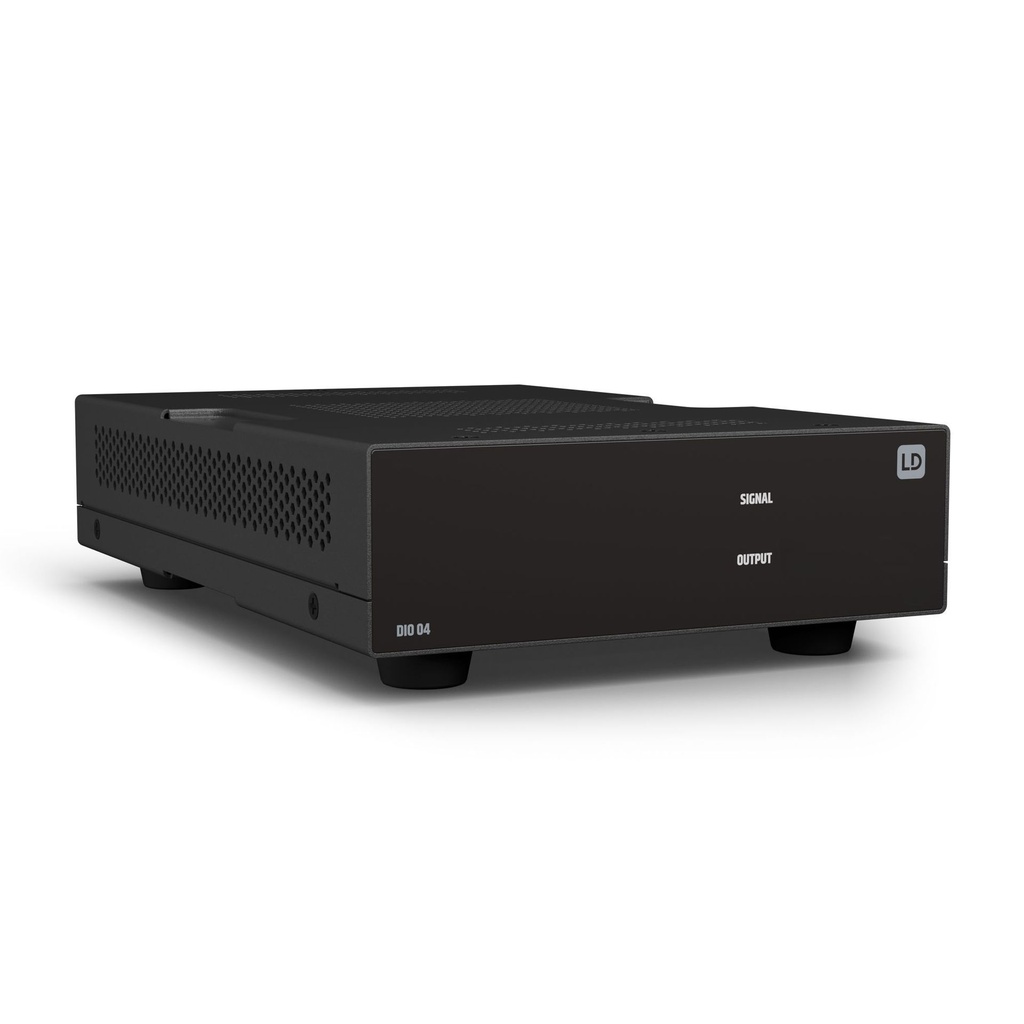

Its tiny form factor (142 x 53 x 221mm) and included mounting plates allow it to be installed discreetly behind screens or under tables. Alternatively, it fits into 1/3 19 inch rack. Use the optional rack tray to slot up to three TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

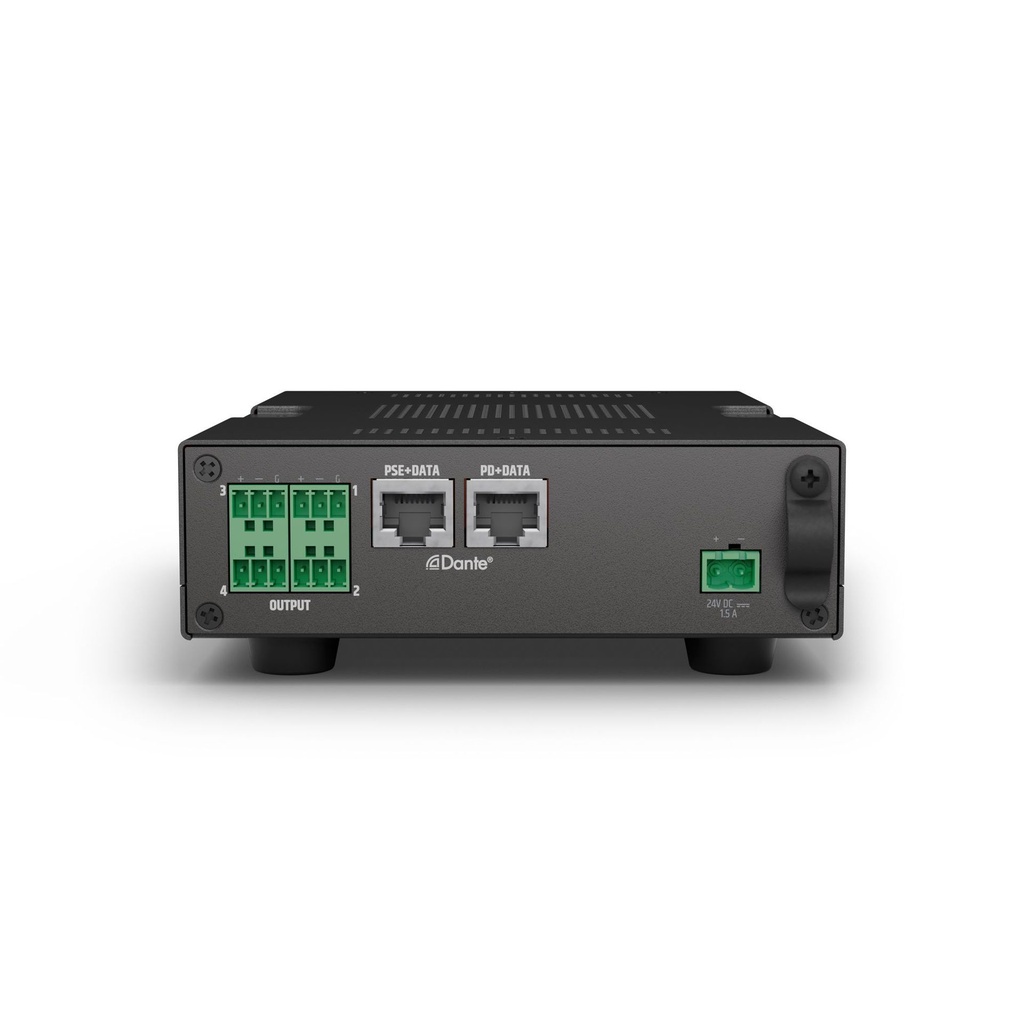

Terminal block connections on the analogue outputs make wiring easy.

The perfect solution for professional installers wanting to interface into Dante equipment.

Dante Domain Manager and AES 67 compliant.

Four output Dante interface
Connect Dante to line level audio equipment
Terminal blocks for all analogue connections

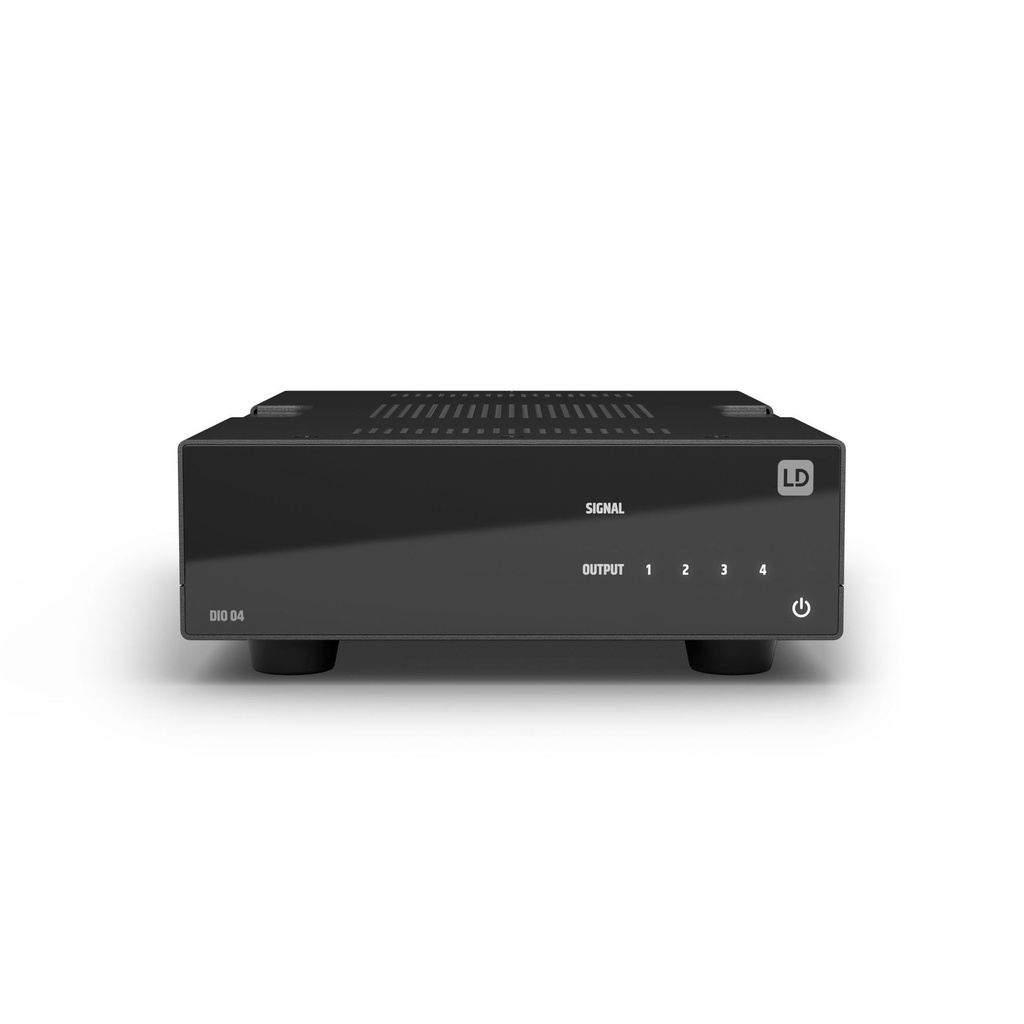

Signal indicators on each channel
Use PoE or an external power supply
Use as a PoE injector to power another networked device
Daisy-chain Dante devices together

General

Material	Steel sheet, Plastic
Coating	Powder coated
Colour	Black

Dante®

Dante® channels (In x Out)	4 x 0
Dante® connector type	RJ-45 socket
Max. channels (44.1 kHz/48 kHz)	4
Sample rate	48 kHz
Bit depth	24 Bit
Latency	1 ms

Outputs

Number of balanced line outputs	4
Balanced line outputs connector type	Terminal block 3 pin (Euroblock) / 3.81 mm pitch

Line output performance

Max. output level	18 dBu
Intermodulation distortion (SMPTE)	0.005 %
THD (+10 dBu)	0.002 %
Idle noise	-92 dBu
Dynamic range (AES17)	> 107 dB
Frequency response (±0.5 dB, rel. Avg)	15 Hz

Mains operation

Operation voltage	230 V AC / 50 Hz, PoE+ (42.5-57 V DC, IEEE 802.3at, Class 4/Type 2, ≤ 30 W), 24 V DC (external power supply)
Power supply type	External switched-mode power supply (SMPS)
Rated power	10 W
Max. Stand-by power consumption	7.5 W
Mains connector	Terminal block 2 pin (Euroblock) / 5.08 mm pitch
Output voltage	PoE+ (42.5-57 V DC, IEEE 802.3at, Class 4/Type 2, ≤ 30 W)
