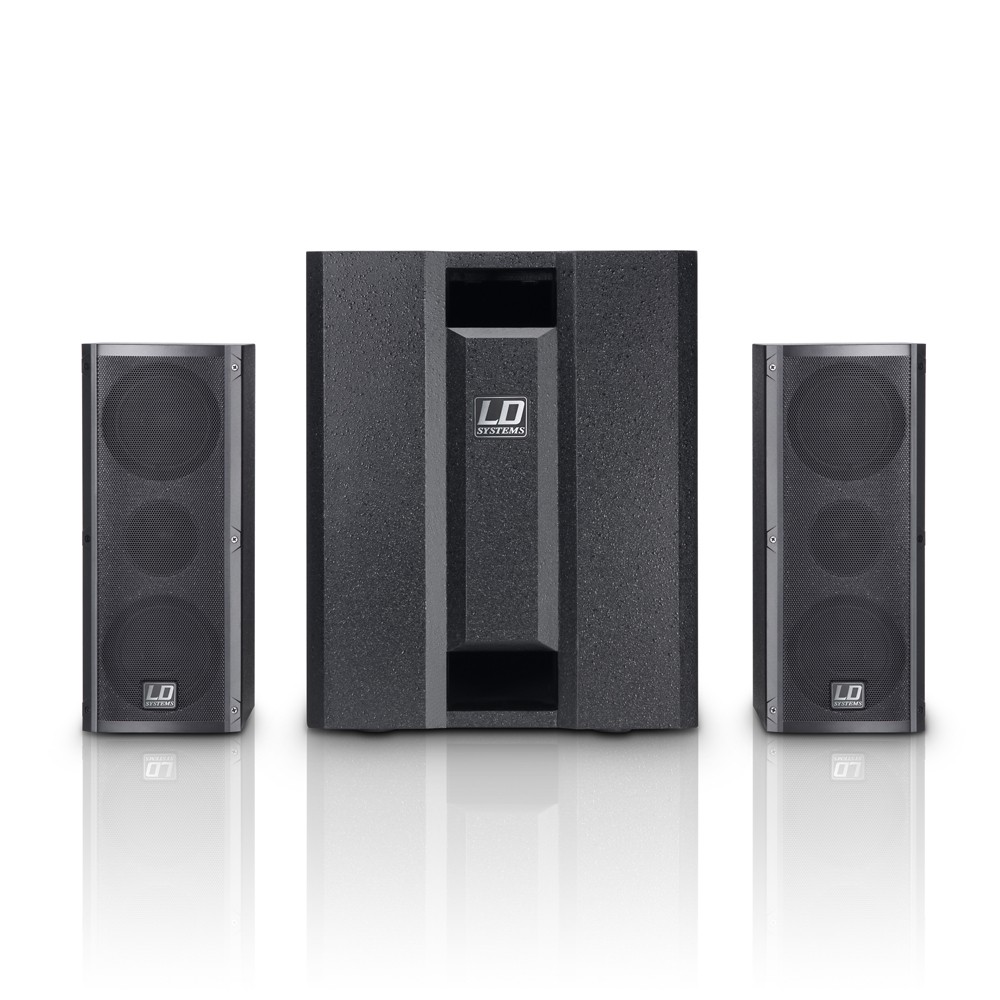

With the DAVE 8 Roadie, LD Systems are successfully implementing their motto "pro audio in motion". This complete PA system with its powerful 1400-watt (Peak) power amp delivers astounding performance for mobile applications. The system is equipped with a high-performance 8" band-pass subwoofer and two satellite speakers (2 x 4" + 1") and was designed as a flexible and portable mini PA system especially for musicians.
The DAVE 8 Roadie features three different inputs, which can be used simultaneously. One channel has a combo socket (XLR/jack) for dynamic microphones. One channel offers dual RCA connectors for computers as well as a combo socket (XLR/jack) for mixers or keyboards. Finally, the third channel has a 3.5 mm stereo and a 6.3 mm mono jack input for MP3 players or guitars with a switch for selecting the desired input. The high-performance Class A/B power amp module integrated in the subwoofer powers both the subwoofer and the satellites.
The systems features all of the usual protection circuits. The built-in limiter keeps the system safe from overload and ensures a long service life. On the side of the subwoofer, in addition to an ON/OFF switch and a phase reverse switch (180°), there is a separate subwoofer volume knob that allows you to find the perfect mix of brilliant treble, punchy mids, and powerful bass.
Sturdy front grilles and ergonomic handles on both the subwoofer and the satellites underscore the roadworthiness of the DAVE 8 Roadie and make the system an ideal companion for musicians.
- 2.1 Portable PA-System for Musicians, DJs, Gaming, Business Conferences
- 3-channel mixer integrated
- Connectivity for Microphone, Guitar, Keyboard, E-Drums, MP3 player, Laptop or PC, Mixer and more
- 1400 W peak
- For up to 70 people
- 8" Bandpass subwoofer for punchy bass reproduction
- Satellite speakers: 2 x 4" mid/high driver + 1" tweeter in a d'Appolito arrangement
- D'Appolito arrangement provides coherent frequency dispersion
- Integrated limiter: Protects the speakers from overload
- Subwoofer volume control for perfect balance between bass and mid/high frequencies
- Mobile: Compact design, sturdy front grilles, carrying handles
General
| Type (active/passive) | Active |
|---|
| Peak output power | 1400 W |
|---|
| RMS output power | 350 W |
|---|
| Amp class | Class A/B |
|---|
| SysLink® | 0 |
|---|
| Max. SPL peak | 123 dB |
|---|
| Max. SPL average | 117 dB |
|---|
| Frequency response | 45 Hz |
|---|
| Speaker system | 2.1 system with d’Appolito satellites |
|---|
| Dispersion | Hor.: 60° / Vert.: 60° |
|---|
| Number of inputs | 5 |
|---|
| Input connector types | XLR combo socket, RCA female, 6.3 mm Jack TRS female, 3.5 mm Jack TRS female |
|---|
| Number of outputs | 2 |
|---|
| Output connector types | XLR combo socket |
|---|
| Colour | Black |
|---|
Inputs
| Number of microphone inputs | 1 |
|---|
| Mic-in connector type | XLR combo socket |
|---|
| Number of instrument inputs | 1 |
|---|
| Inst-in connector type | 6.3 mm Jack TRS female |
|---|
| Number of line inputs | 3 |
|---|
| Line-In connector type | XLR combo socket, RCA female |
|---|
| Number of aux inputs | 1 |
|---|
| Aux inputs connector types | 3.5 mm Jack TRS female |
|---|
Outputs
| Number of speaker outputs | 2 |
|---|
| Speaker output connection type | Standard speaker connector 4-pole male & speakON® |
|---|
Signal processing
| Mixer | 1 |
|---|
| Mixer channels | 3 |
|---|
| Audio processing | 3 band EQ (High, Mid, Low) |
|---|
Bass driver
| Size | 8 " |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 1.5 " |
|---|
Mid range
| Size | 4 " |
|---|
| Quantity | 2 |
|---|
| Manufacturer | Custom Made |
|---|
| Voice coil | 1 " |
|---|
| Magnet | Ferrite |
|---|
Tweeter
| Driver size | 1 " |
|---|
| Design | Softdome tweeter with CD waveguide |
|---|
| Manufacturer | Custom Made |
|---|
| Magnet | Ferrite |
|---|
| Voice coil | 1 " |
|---|
Mains operation
| Operation voltage | 220 V AC - 240 V AC / 50 - 60 Hz |
|---|
| Power supply type | External switched-mode power supply (SMPS) |
|---|
| Mains connector | IEC C14 plug male |
|---|
Housing
| Front grille material | Metal |
|---|
Cooling
| Cooling system | Convection cooling |
|---|
Satellites/columns
| Design | Closed |
|---|
| Flange | 16 mm flange |
|---|
| Chassis material | Medium-density fibreboard MDF |
|---|
| Housing coating | Painted |
|---|
| Front grille material | Aluminium |
|---|
| Width | 150 mm |
|---|
| Height | 350 mm |
|---|
| Depth | 170 mm |
|---|
| Weight | 4.2 kg |
|---|
Subwoofer
| Design | Bandpass |
|---|
| Number of handles | 1 |
|---|
| Flange | M20 |
|---|
| Material | Medium-density fibreboard MDF |
|---|
| Surface coating | Painted |
|---|
| Front grille material | Aluminium |
|---|
| Width | 352 mm |
|---|
| Depth | 434 mm |
|---|
| Height | 430 mm |
|---|
Dimensions & weight
Other properties
| Included accessories | Mains cable |
|---|
