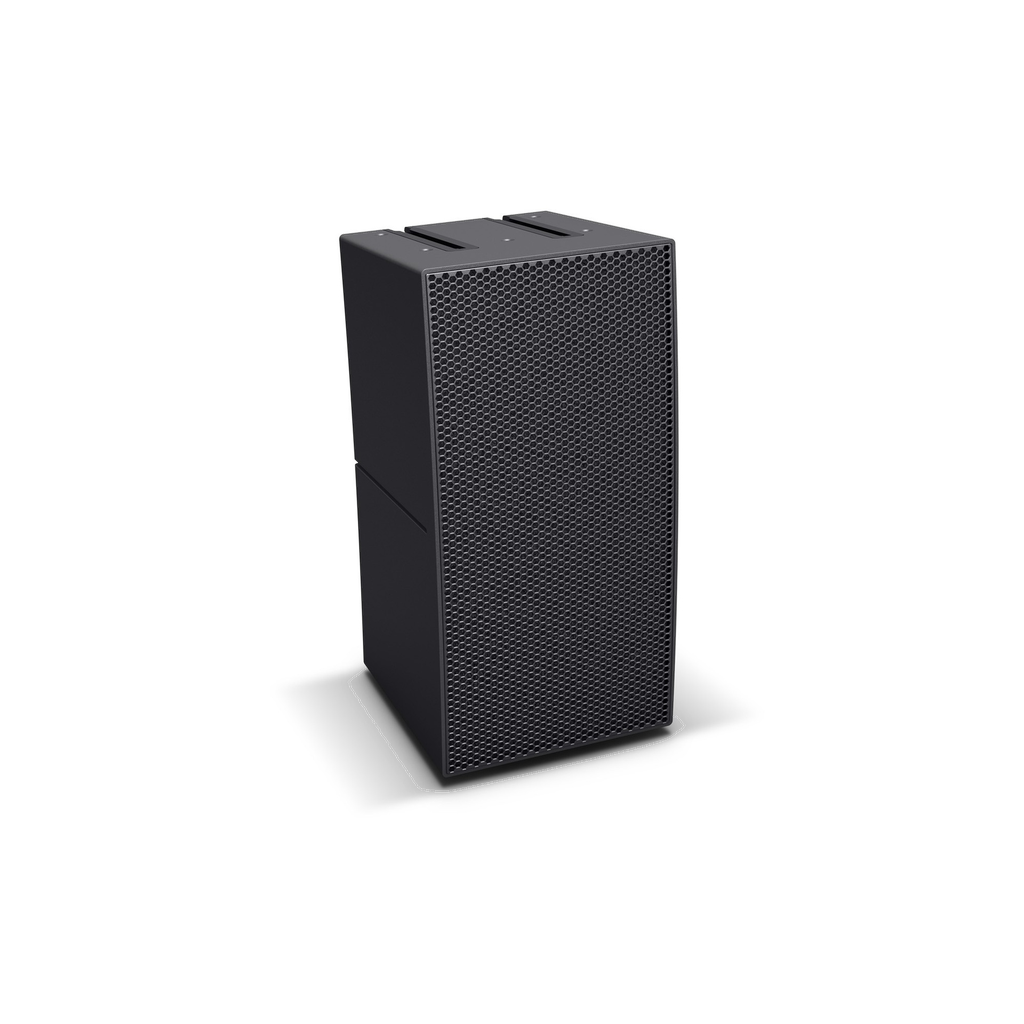

Providing tightly focused long-throw coverage, the CURV 500® Duplex Satellite expands the system’s configuration options in on-stage applications and fixed installations. The unique unibody enclosure of die cast aluminium features two 4" midrange drivers and six 1" high frequency drivers with patented WaveAhead® technology delivering balanced high-definition audio. The Duplex is primarily intended for creating spiral arrays in combination with multiple standard satellites making up the bottom curvature. This allows you to configure the system for optimum coverage throughout the listening area from front to rear. The CURV 500® Duplex is ready for cableless SmartLink® plug-and-play connection and available in black (LDCURV500DSAT) or white (LDCURV500DSATW).
- Two standard CURV 500® satellites in single enclosure
- 2 x 4” midrange drivers
- 6 x 1” high frequency drivers
- WaveAhead® technology for high-definition audio
- Cableless SmartLink® connection
- Impedance 8 ohms
- Perfect for creating spiral-arrays with standard CURV satellites
- Compatible with all CURV500® systems
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 160 W |
| Power handling (RMS) | 80 W |
| SPL (1 W/1 m) | 91 dB |
| Max. SPL peak | 110 dB |
| Impedance | 8 Ω |
| Dispersion | Hor.: 110° / Vert.: 7° |
| Colour | Black |
Mid range
| Size | 4 " |
|---|---|
| Quantity | 2 |
Tweeter
| Driver size | 1 " |
|---|---|
| Quantity | 6 |
Housing
| Cabinet material | Aluminum continuous casting |
|---|---|
| Coating | Powder coated |
Dimensions & weight
| Width | 122 mm |
|---|---|
| Height | 240 mm |
| Depth | 126 mm |
| Weight | 3.3 kg |
