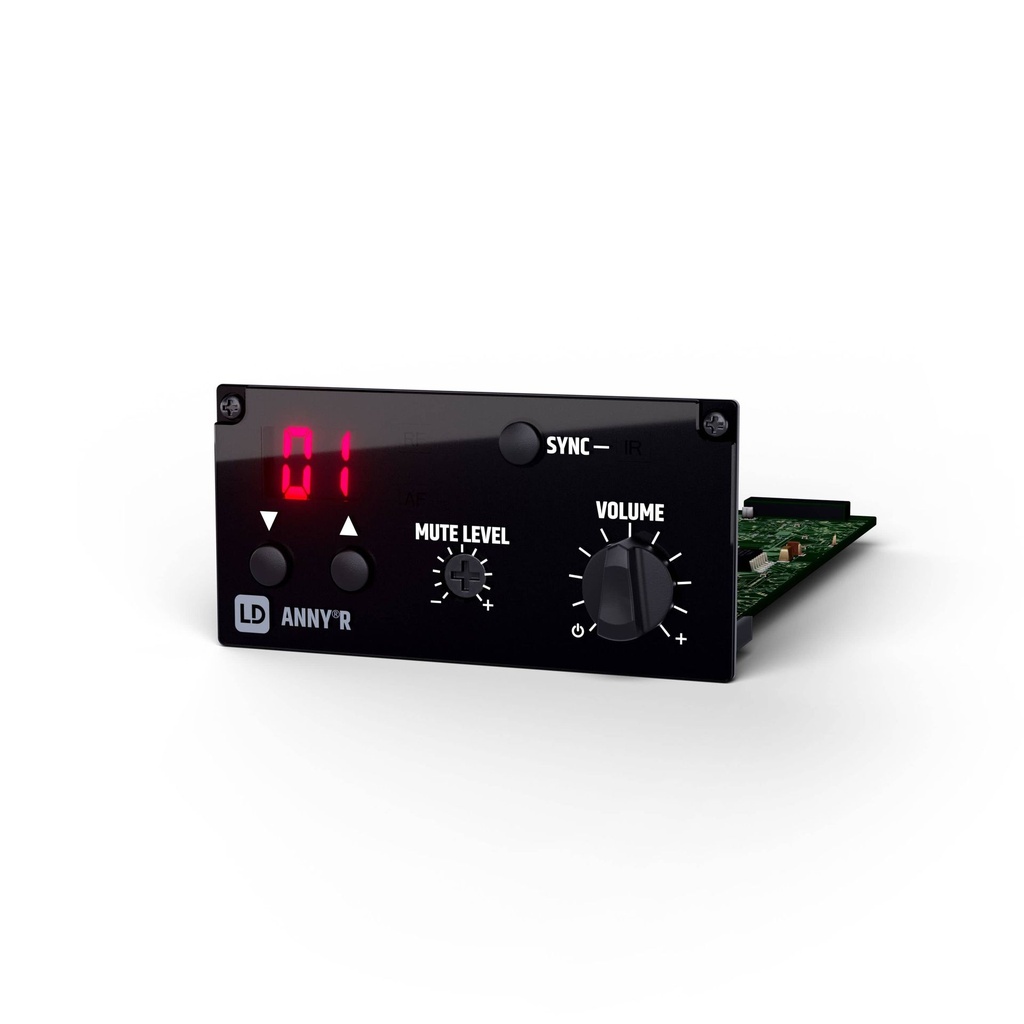

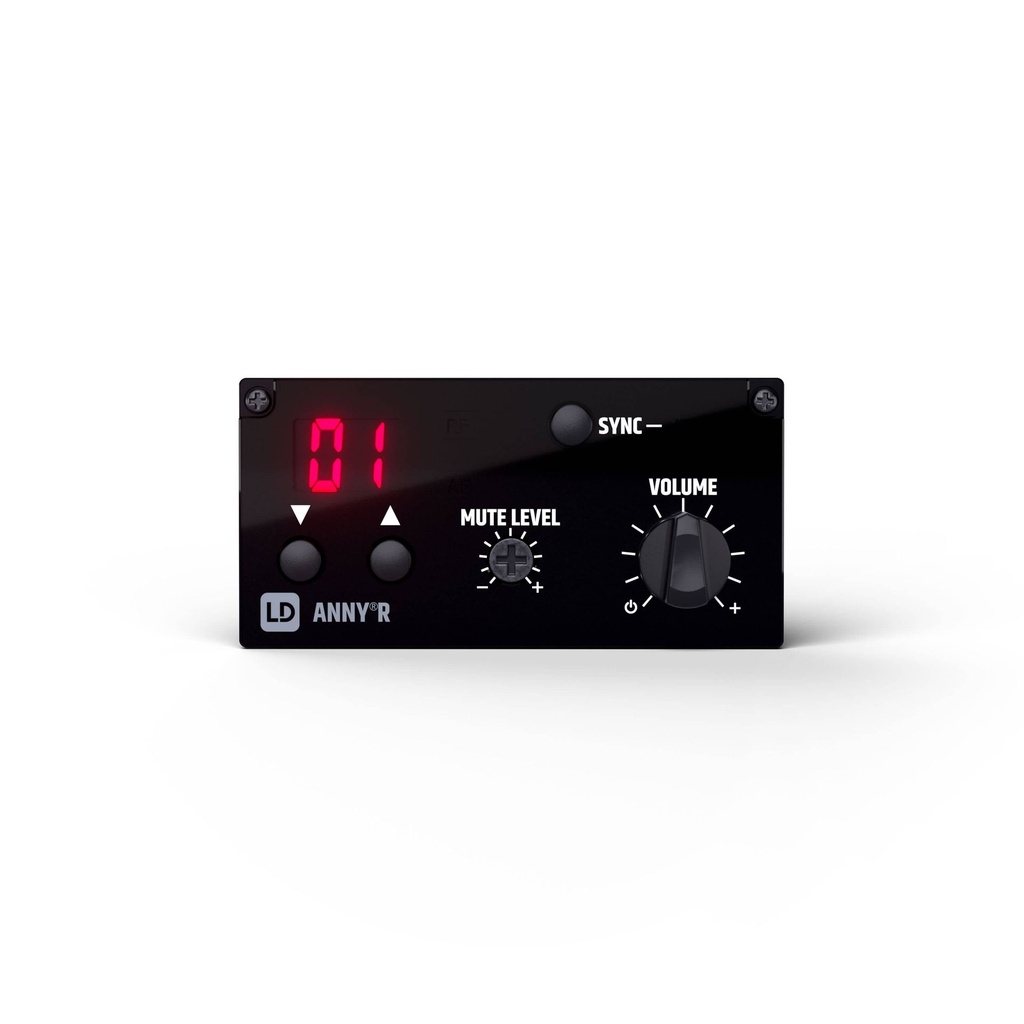

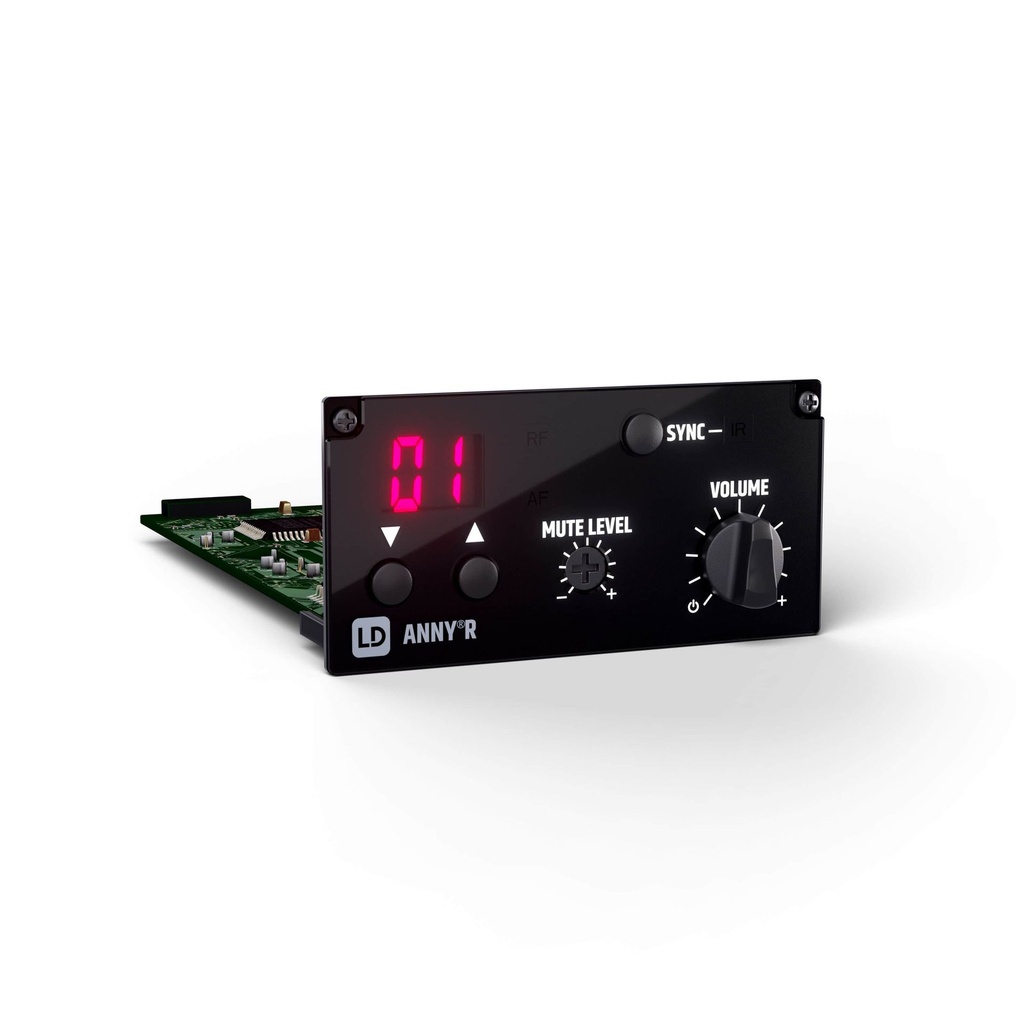

This ANNY® Receiver Module allows retrofitting of an ANNY® wireless microphone by installing it in a free receiver module slot of the ANNY® loudspeaker. It receives with the frequency band B6 the frequency range of 655 - 679 MHz. A volume control on the module allows you to set the volume level to suit your needs, while a mute level control effectively eliminates noise and interference caused by weak signals. Radio signals can be received up to 80 metres using the supplied antenna with TNC connector. The receiver is easily and conveniently synchronised via infrared with the matching ANNY® bodypack transmitter or wireless handheld microphone.
- Radio system with FM technology incl. separate antenna
- Can be retrofitted to all ANNY® loudspeakers
- Reception range up to 80 m
- Separate volume control
- 12 selectable radio channels
- Mute level control (squelch)
General
| Material | Steel sheet |
|---|---|
| Coating | Powder coated |
| Wireless frequencies | 655 - 679 MHz |
| Frequency response (-3 dB, rel. Avg) | 50 Hz |
| Colour | Black |
Radio transmission
| Channels | 12 |
|---|---|
| Antennas | BNC female |
Battery operation
| Built in battery tester | 0 |
|---|
Dimensions & weight
| Width | 72.8 mm |
|---|---|
| Height | 39.6 mm |
| Depth | 118.5 mm |
| Weight | 80 g |
