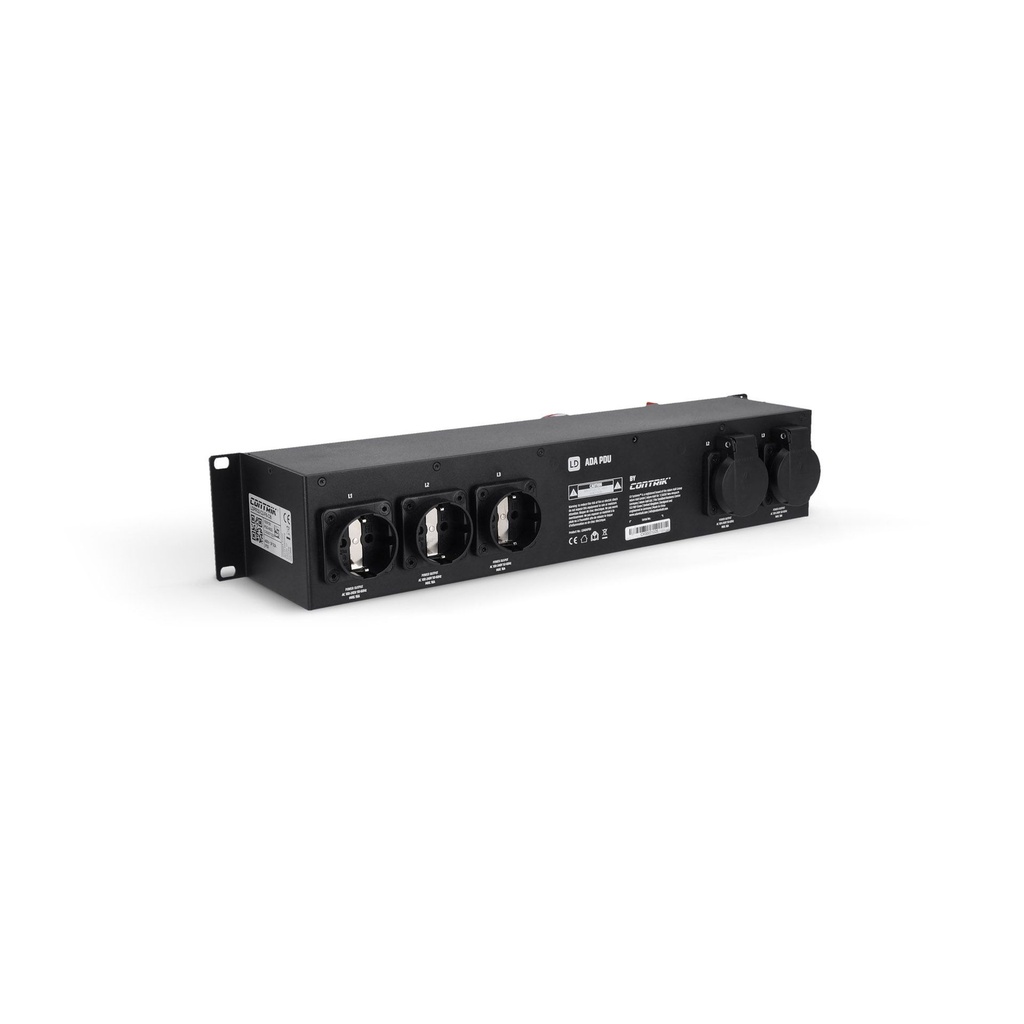

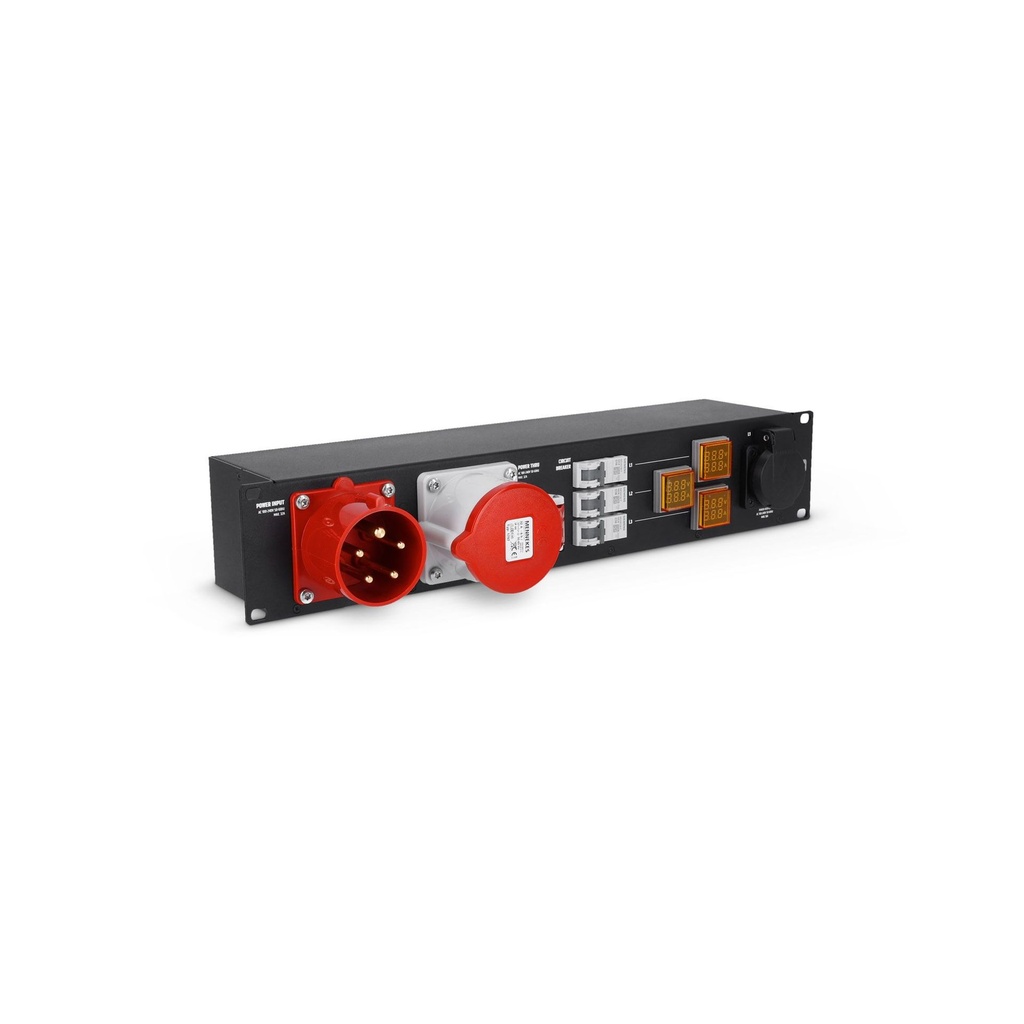

The ADA PDU is a 2U, 19" three-phase rack power distribution unit with 32A capacity, designed for clean and reliable power distribution in touring and installation systems. It features a 32A three-phase CEE input with a 32A CEE link output for daisy-chaining, plus 6 × Schuko outputs (IP54). Power is safely segmented via three independent circuit breakers, while per-phase voltage and current are monitored on LED segment displays for quick on-site checks. Built in a rugged, black powder-coated steel enclosure and fitted with MENNEKES® connectors throughout.
- Rack power distribution unit for 3 × ADA 12K4 / ADA 8K4

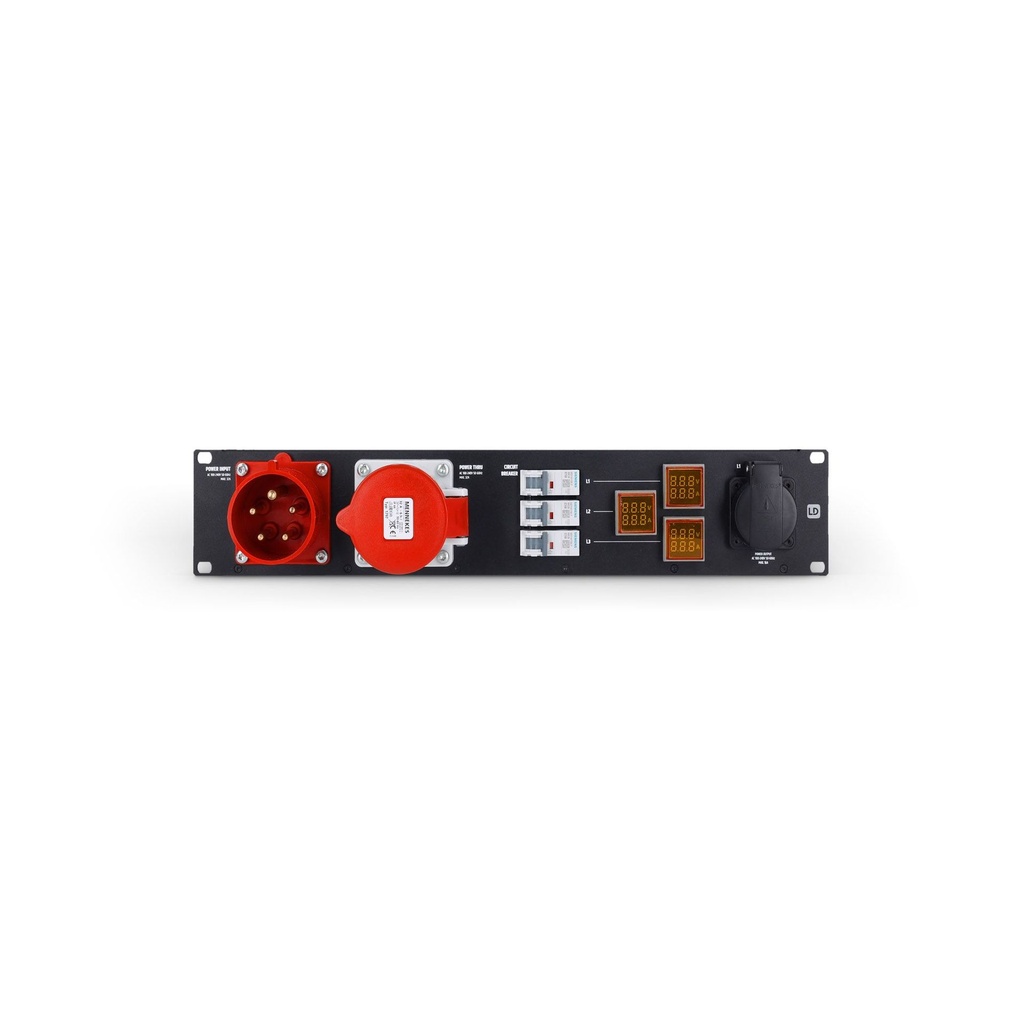

- 32A three-phase CEE input with 32A CEE link output (daisy-chain)

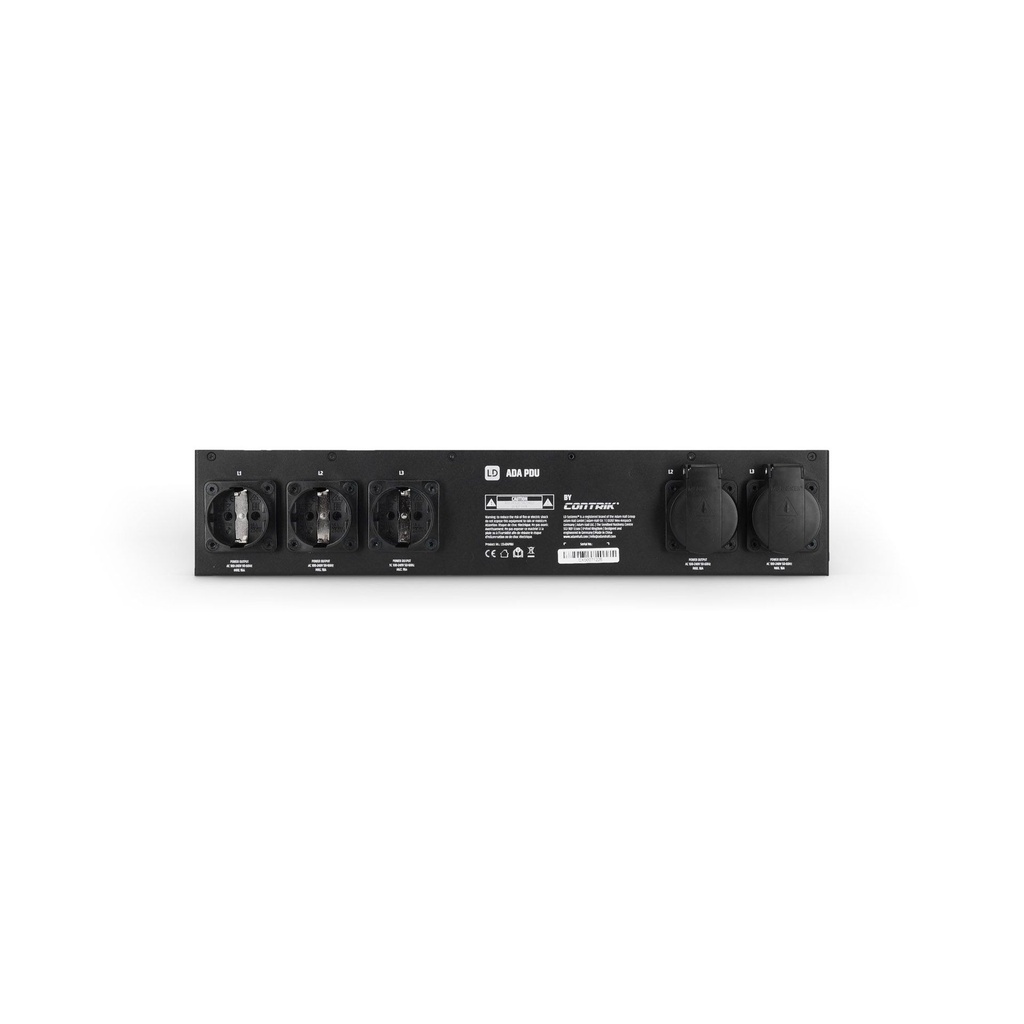

- 6 × Schuko outputs (IP54)
- 3 independent circuit breakers
- LED segment displays for voltage and current monitoring Per-phase
- MENNEKES® connectors for input and outputs
General
| Input connector type | CEE plug 32A male |
|---|---|
| Output connector type | Schuko socket female |
| Output protection class | IP54 |
| Output 2nd connector type | CEE plug 32A female |
| Material | Steel |
| Cable detachable | 0 |
| On/Off switch | 0 |
| Number of outputs | 7 |
| Colour | Black |
Dimensions & weight
| Width | 483 mm |
|---|---|
| Height | 88 mm |
| Depth | 191.1 mm |
| Rack width | 19" |
| Rack height | 2 U |
| Installation depth | 124.1 mm |
| Weight | 3.75 kg |
