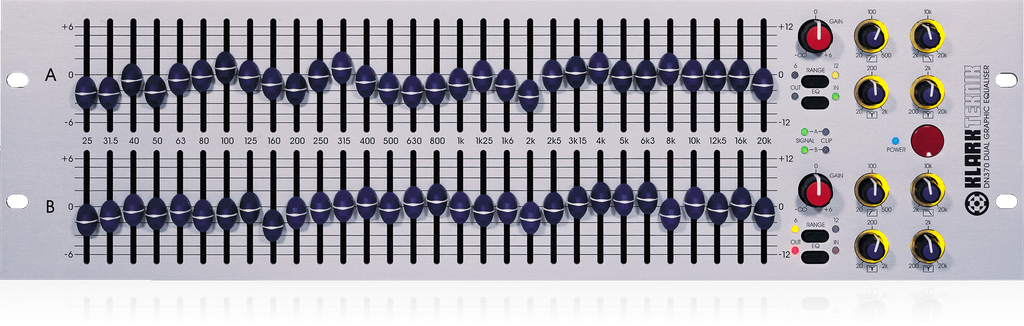

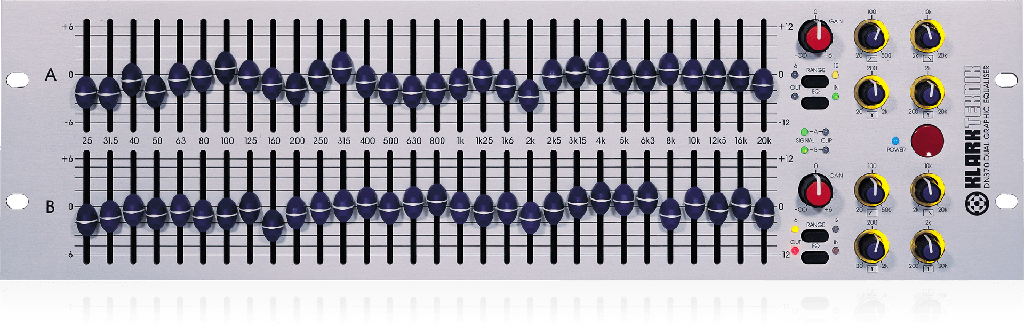

The Klark Teknik DN370 is a dual channel, 30 band, 1/3 octave analogue graphic equaliser with an enhanced Proportional-Q response. Each channel adds swept high-pass and low-pass filters and two swept notch filters, making it suited to both Front of House and stage monitoring applications. The Proportional-Q response gives gentle contouring at low amounts of cut or boost and becomes progressively narrower as cut or boost is increased.
- 12 dB/oct high-pass filter (20 Hz to 500 Hz) and low-pass filter (2 kHz to 20 kHz) per channel
- Two overlapping swept notch filters per channel (20 Hz to 2 kHz and 200 Hz to 20 kHz)
- Long-throw 45 mm oil-damped faders with selectable ±12 dB or ±6 dB range

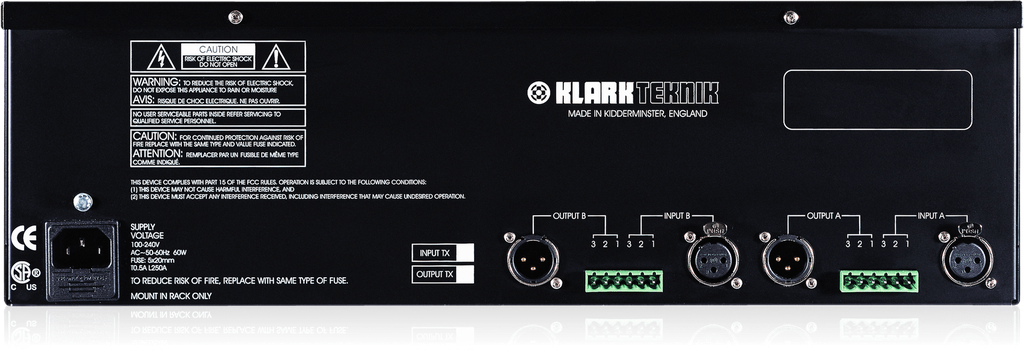

- Electronically balanced inputs and outputs on XLR and Phoenix connectors
- Power-off bypass relays
- 3U rackmount chassis with auto-ranging universal switch-mode power supply
