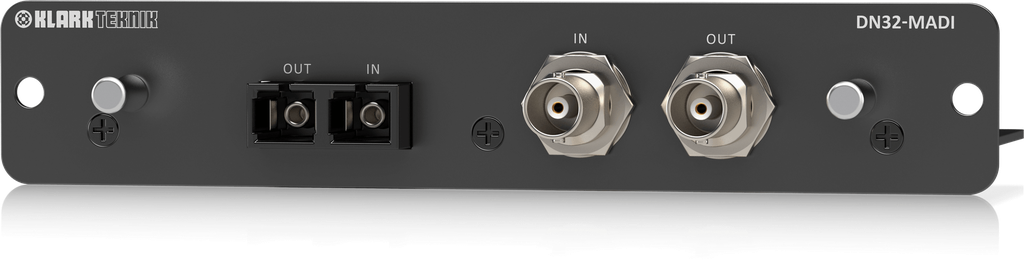

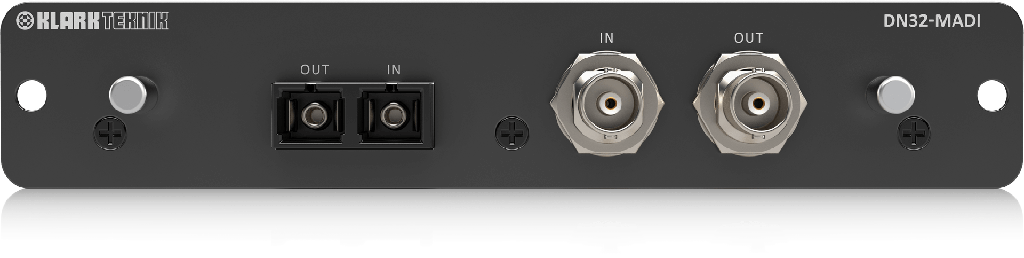

The Klark Teknik DN32-MADI is a MADI (AES10-compliant) expansion module for Midas M32 and Behringer X32 digital consoles. It lets the console exchange 24-bit multichannel audio at 44.1 or 48 kHz with other MADI compatible devices, with up to 32 bidirectional channels selected from a 64 channel MADI stream. Optical and coaxial connections can be used together, with the coaxial link acting as a redundant connection that takes over automatically if the optical link becomes unavailable.
- Up to 32 bidirectional channels at 48 kHz sample rate
- Optical transmission on SC-Duplex connector, up to 500 m over optical fibre
- Copper transmission on 75 ohm coaxial BNC connectors, up to 100 m
- Operates as either MADI clock master or MADI clock slave
- Selection of input and output channels 1-32 or 33-64
