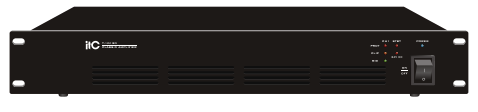

1 Channel Class-D Digital Amplifier
The range of one channel power amplifier is Class-D series. From one hand, switch power technology with APFC (Active power factor correction), had enhanced the efficiency up to 85%. From another hand, this amplifier is also preferable for much more heat generation of less than 55 degrees even at severe working conditions, thus this benefits are not only good for extension of life span.
The amplifiers are designed to be both tabletop and rack mount in 1.5U height. The output power of this series is 120W, 240W, 350W and 500W. On the real, there is one line 100V output to connect with speaker. A line input by phoenix connector for remote control and status monitor. Extensive protection includes high temp, overload and short-circuit.
Specifications
| Model | T-1D240 |
| Rated Power Output | 240W |
| Speaker Output | 100V |
| Input Sensitivity & Impedance | ±385mV/20KΩ,balanced H5.08 European connector input |
| Overload Electromotive Force | ＞11dB, balanced H5.08 European connector input |
| Frequency Response | 80Hz~18KHz(+1dB, -3 dB) |
| S/N Ratio | ≥85dB |
| THD | ≤0.5% at 1KHz, 1/3 rated power |
| Controls | Remote volume control, power control, standby control and status monitor (phoenix connector) |
| Indicators | signal, peak, protection, power |
| Protection | high temp, speaker, DC output ,overload and short-circuit |
| Cooling | Forced cooling (half speed control start up 50℃; full speed control start up 70℃) |
| Power Consumption | 300W |
| Power Supply | ~230V 50Hz(can be customized to be AC110V 60Hz); DC24V( 24V DC battery standby) |
| Dimensions | 484 x 440 x 66mm |
| Weight | 7.8Kg |
