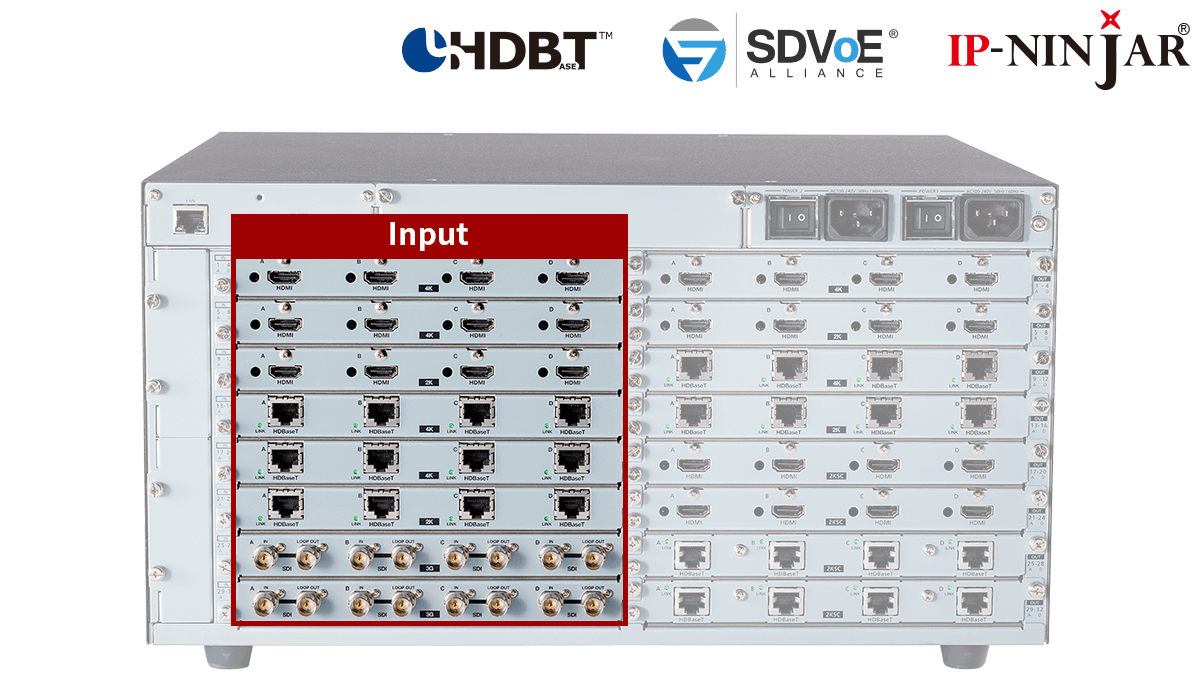

The FDX-SIV4UH is a four-input HDMI board designed for FDX-S Modular Matrix Switchers.The board supports HDMI and DVI at video resolutions up to 4K@60 and complies with HDCP 2.2.
The FDX-SIV4UC is a four-input 10GbE board designed for FDX-S Modular Matrix Switchers.The board supports video resolutions up to 4K@60 (4:4:4) and complies with HDCP 2.2. Input video signals can be transmitted up to 328 ft. (100 m).
The FDX-SIV4UT is a four-input HDBaseT board designed for FDX-S Modular Matrix Switchers.The board supports video resolutions up to 4K@60 and complies with HDCP 2.2. Input video signals can be transmitted up to 328 ft. (100 m); 1080p (24 bit) video signals can be sent up to 492 ft. (150 m) in Long reach mode.RS-232C bidirectional communication and LAN transmission are also supported.
The FDX-SIV4US is a four-input SDI board with loop-though function designed for FDX-S Modular Matrix Switchers.The board supports 12G-SDI, 6G-SDI, 3G-SDI, and HD-SDI and receives video signals from source devices that are up to 820 ft. (250 m) away over coaxial cables. Additionally, the FDX-SIV4US also features multiple link (DUAL LINK 3G, DUAL LINK 6G 2SI, and QUAD LINK 3G LEVEL A 2SI [2 Sample Interleave]) that supports the following conversion: from DUAL LINK 3G-SDI to SINGLE LINK 6G-SDI; from DUAL LINK 6G-SDI to SINGLE LINK 12G-SDI; from QUAD LINK 3G-SDI to SINGLE LINK 12G-SDI.
The FDX-SIV4S is a four-input SDI board with loop-though designed for FDX-S series Modular Matrix Switchers. The board supports 3G-SDI, HD-SDI, and SD-SDI and receives video signals from source devices up to 984 ft. (300 m) over coaxial cables.
