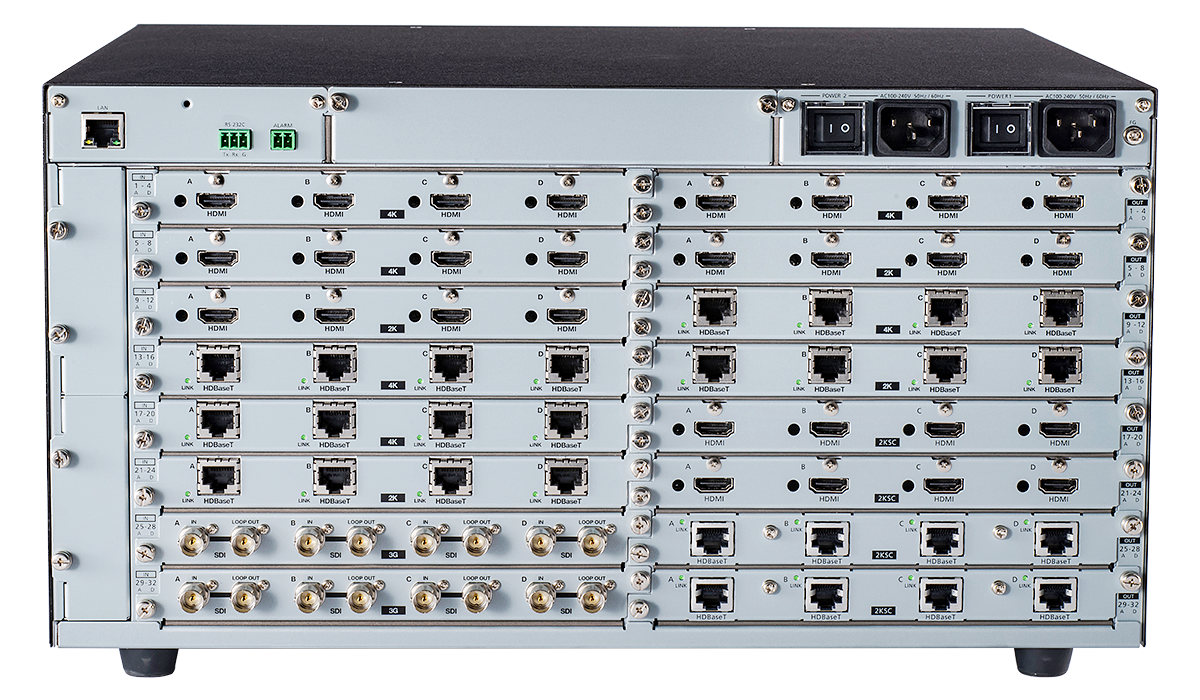

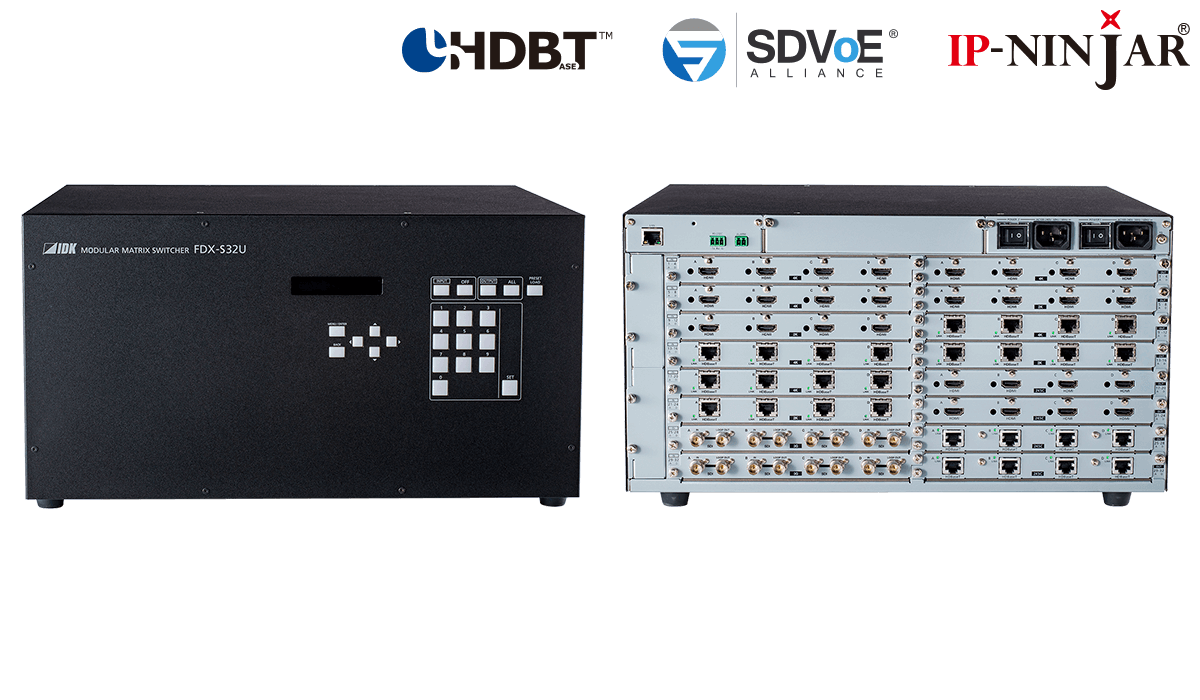

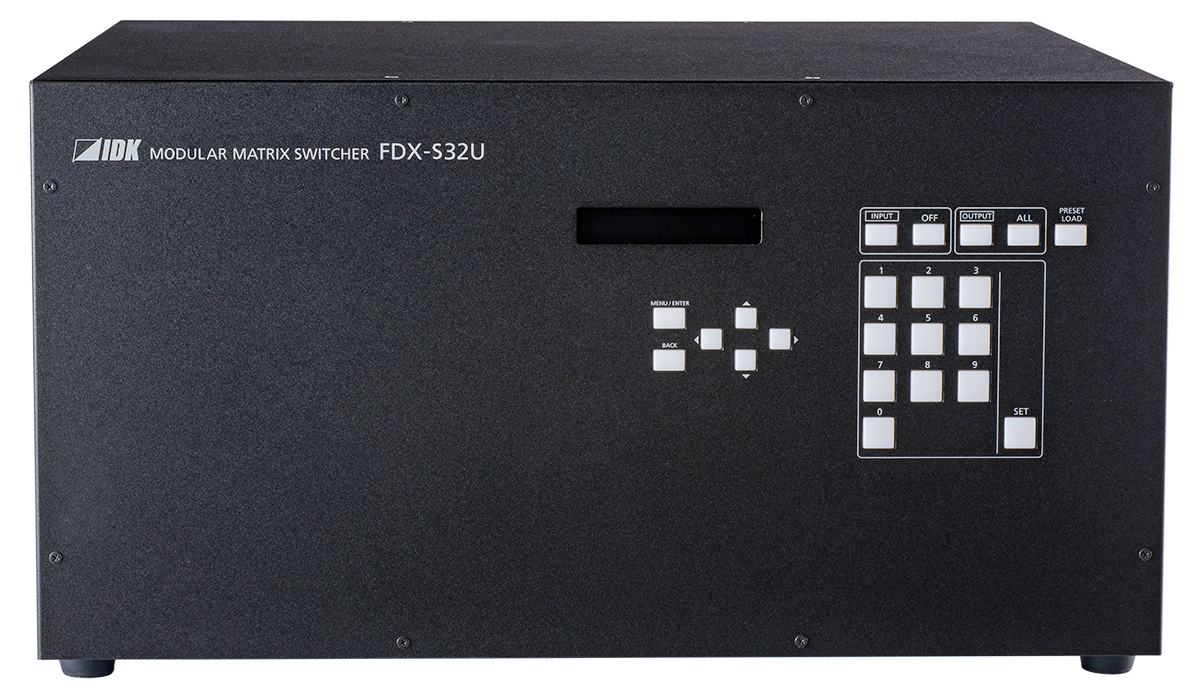

4K@60 Modular Matrix Switcher with 32 Inputs & 32 Outputs
■ Up to 32 inputs (8 input boards)
■ Up to 32 outputs (8 output boards)
■ Up to 4K@60 (4:4:4)
■ HDCP 1.4/2.2
■ Customizable I/O boards
■ Videowall and Multiview
■ Analog and Dante audio input/output boards
BOARDS / REDUNDANT POWER SUPPLY UNITS
| FDX-SIV4UH | FDX-S Input Board , 4K@60(4:4:4) HDMI Input Board with 4 Inputs |
| FDX-SIV4UC | FDX-S Input Board, 4K@60 (4:4:4) SDVoE Input Board with 4 Inputs |
| FDX-SIV4UT | FDX-S Input Board , 4K@60(4:2:0) HDBaseT Input Board with 4 Inputs |
| FDX-SIV4US | FDX-S Input Board, 12G/6G/3G/HD-SDI Input Board with 4 Inputs |
| FDX-SIV4S | FDX-S Input Board , 3G/HD/SD-SDI Input Board with 4 Inputs |
| FDX-SOV4UH | FDX-S Output Board , 4K@60(4:4:4) HDMI Output Board with 4 Outputs |
| FDX-SOV4UC | FDX-S Output Board, 4K@60 (4:4:4) SDVoE Output Board with 4 Outputs |
| FDX-SOV4UT | FDX-S Output Board , 4K@60(4:2:0) HDBaseT Output Board with 4 Outputs |
| FDX-SOV4US | FDX-S Output Board, 12G/6G/3G/HD-SDI Output Board with 4 Outputs |
| FDX-SOV4UHS | FDX-S Output Board, 4K@60 (4:4:4) HDMI Scaling Output Board with 4 Outputs |
| FDX-SOV2UHS | FDX-S Output Board , 4K@60(4:4:4) HDMI Scaling Output Board with 2 Outputs |
| FDX-SOV1UHM | FDX-S Output Board , 4K@60(4:4:4) HDMI Multiview Output Board with 1 Output |
| FDX-SOV4HS | FDX-S Output Board, 1080p HDMI Scaling Output Board with 4 Outputs |
| FDX-SOV4TS | FDX-S Output Board, 1080p HDBaseT Scaling Output Board with 4 Outputs |
| FDX-SAB4A | FDX-S Audio Board , Analog Audio Board with 4 Inputs & 4 Outputs |
| FDX-SOA12A | FDX-S Audio Board , Analog Audio Board with 12 Outputs |
| FDX-SAB64D | FDX-S Audio Board, Dante Audio Board with 64 Inputs and 64 Outputs |
FDX-S Redundant Power Supply Unit for FDX-S32U | |
