8k Playback / 8k Output

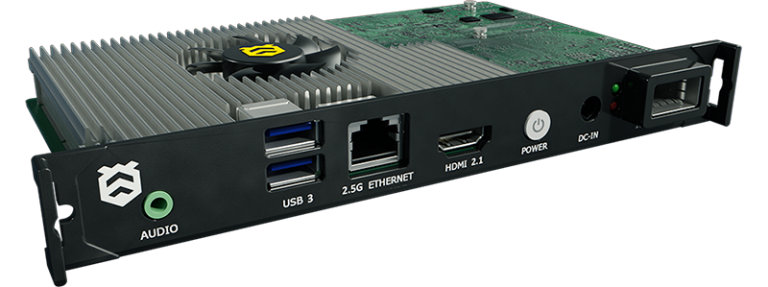

The NEXUS variant is a groundbreaking innovation, proudly standing as the world’s first 8K60 output SDM Media Engine with HDMI Genlock.
Designed for unparalleled precision, it utilises our proprietary beesync technology to achieve HDMI Genlock at up to 8k60 on its HDMI 2.1 output for seamless synchronization and SMPTE 2110 support via a high-speed 100Gb QSFP connection, making it a trailblazer in professional media delivery.
Specifications
| Max Media Resolution | 8192 × 4320 @ 60Hz |
| Max Output Resolution | 8192 × 4320 @ 60Hz |
| Max Frame Rate | 240 FPS (4K) |
| Playback Layers | 2 × 4K or 1 × 8K + Media Regions |
| GPU | Intel ARC |
| Memory | 32GB DDR5 |
| Max HEVC Bitrate | 800 Mbps |
| Outputs | HDMI 2.1, NDI, SMPTE 2110 |
| Inputs | NDI, USB, SMPTE 2110 |
| Networking / Ethernet | 1 × 2.5Gb + 1 × 10/25/100Gb (QSFP) |
| Audio Output | HDMI, Mini-Jack, USB, Dante |
| Layer limits per device | x8 |
| Mix limits per device | x4 |
| Storage Capacity | 2TB |
| Warranty | 2 years (standard), 3 years, 5 years |
