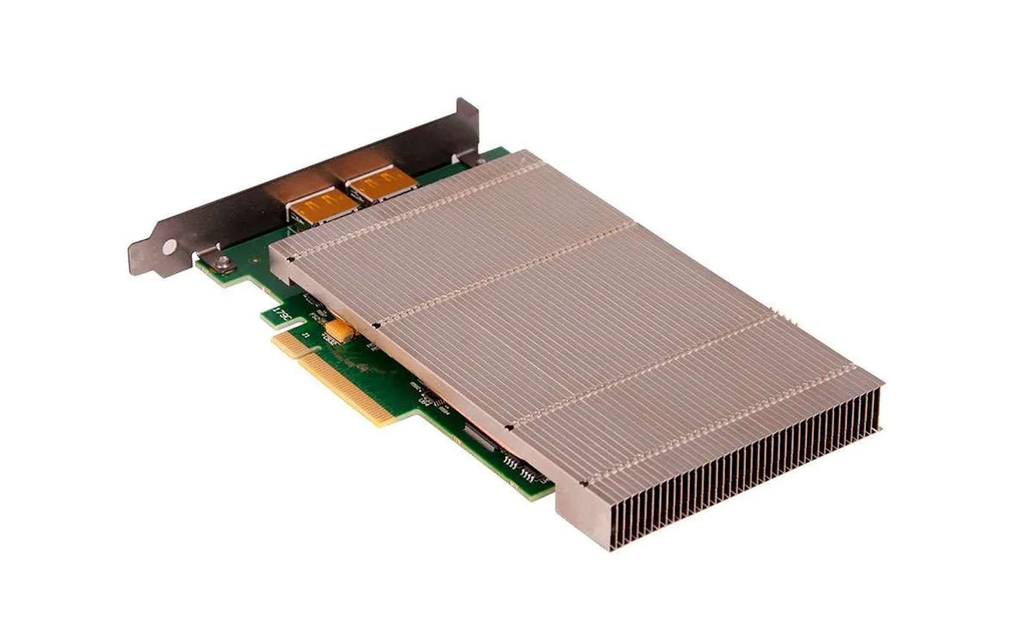

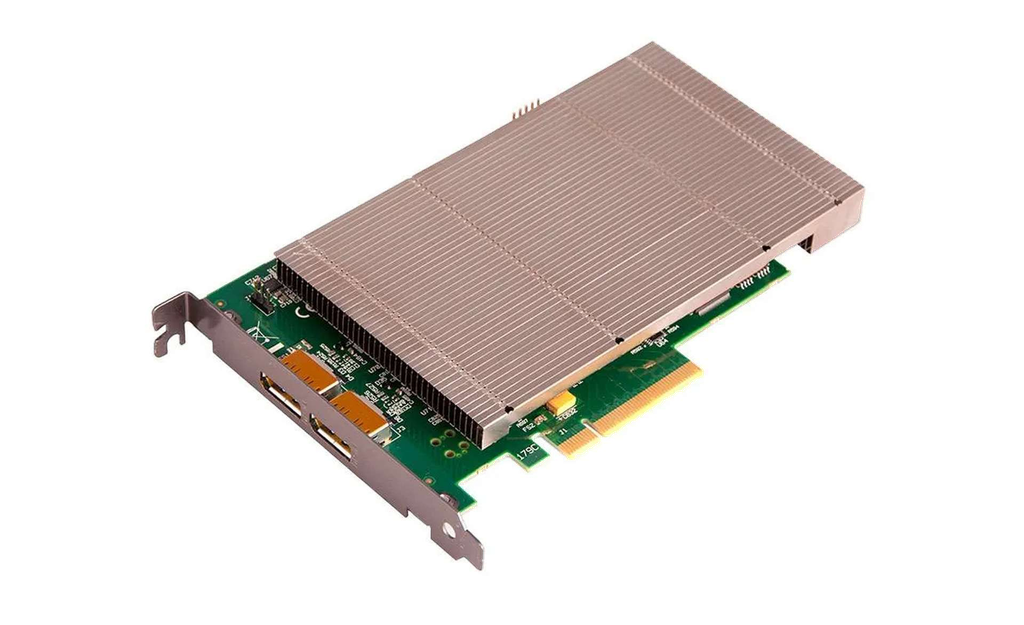

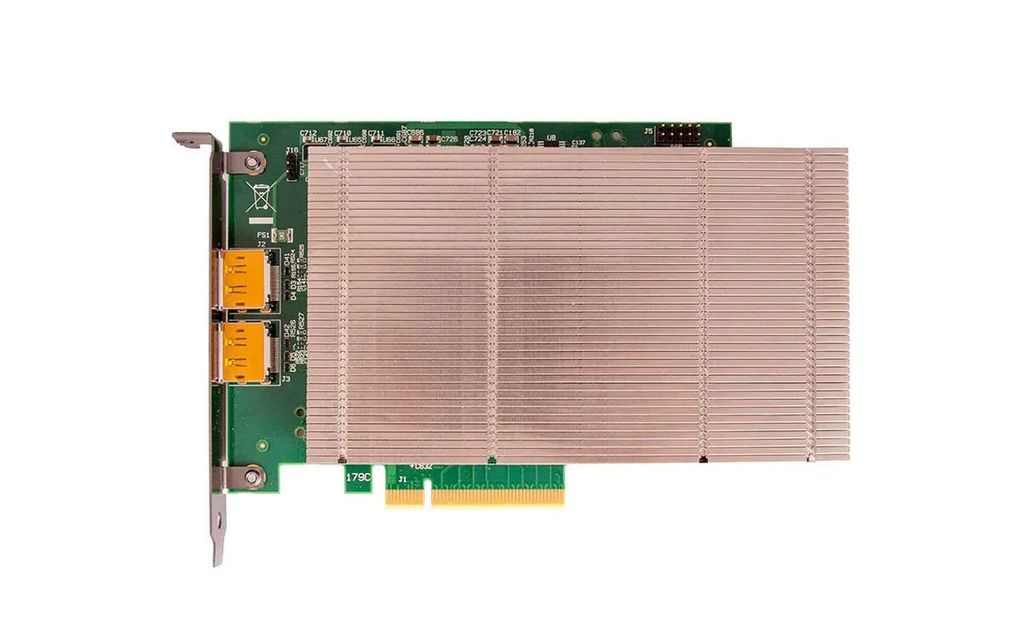

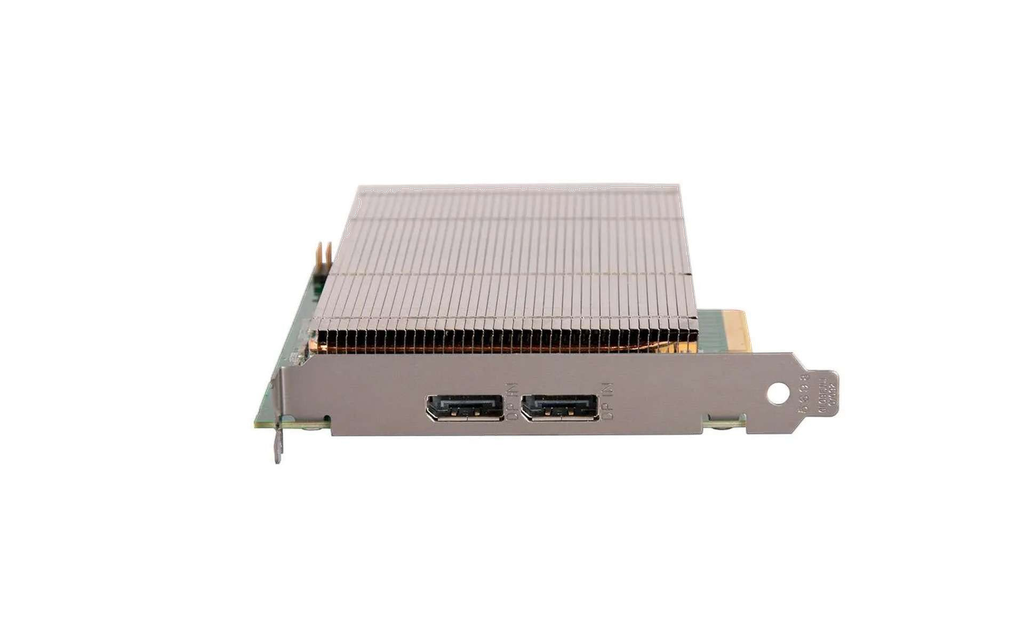

The Datapath VisionSC-DP2 is a dual channel DisplayPort 1.2 capture card that gives video professionals the ability to simultaneously capture multiple 4K Ultra High Definition video feeds, each at 60 frames per second. Developed as part of the VisionSC family of capture cards, it is a PCI Express x8 plug-in card with locking DisplayPort connectors. Built-in WDM support means any application compatible with Windows DirectShow can use it to encode, record and stream video.
- Two independent DisplayPort 1.2 capture channels
- Captures up to 4096 x 2160p at 60 Hz per input
- Eight lane PCIe Gen 3 interface, 6 GB/s total capture bandwidth
- 768 MB frame buffer memory
- HDCP support with Datapath graphics cards
- Unified Windows and Linux driver support
- Frame sequential 3D mode
- Card dimensions: 110 x 177 mm, maximum power about 16 W
