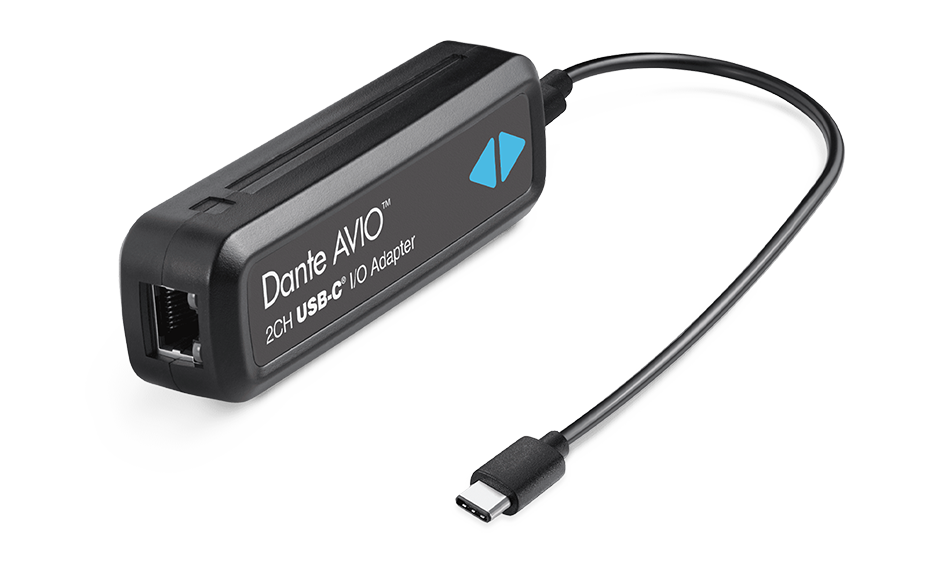

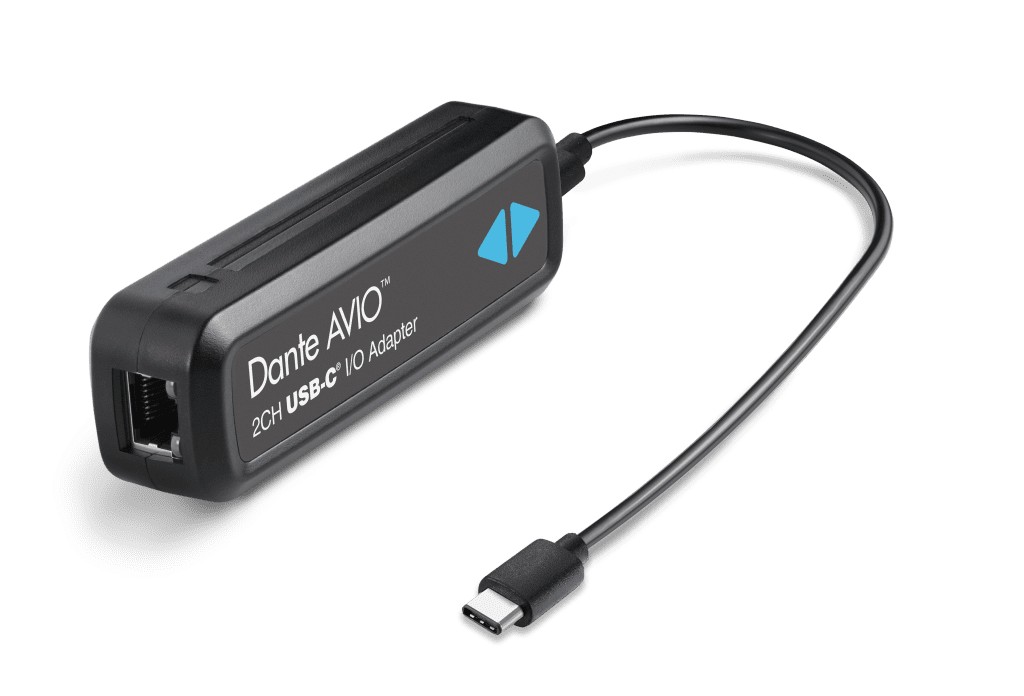

AVIO USB Type-C Adapter
Dante AVIO adapters connect analog, AES3, and USB gear to Dante systems. Compact, reliable, and ready to deploy fast, wherever the job takes you.
Available in USB-A and USB-C models, connect laptops, tablets, phones, and other USB devices to Dante systems with no software installation or drivers required.
Key features
- Plug and Play: Plug into your gear, connect to the network, and start routing audio in Dante Controller.
- Cable Built In: No digging around for cables. Everything you need to connect is already built in.
- PoE Powered: No bulky power supplies to carry. Power and audio over a single Ethernet cable.
Specifications
| Part Number | ADP-USBC-AU-2X2 |
| Connectors | RJ45 & USB Type-C |
| Power Consumption | <10 watts, < 2 watts no power delivery |
| USB Power Delivery | 5V 1.5A (7.5 watts) |
| Audio Channels | 2 in, 2 out |
| Power | Class 1 802.3af PoE or USB |
| Sample Rates | 48 kHz |
| Bit depth | 24 |
| Dante Device Latency | 1, 2, or 5ms (configurable using Dante Controller) |
| Network Transport | Dante Audio over IP, AES67 RTP |
| USB | Class compliant USB 2.0 device |
| Operating Temp | -10 to +50C |
| Storage Temp | -25 to +70C |
