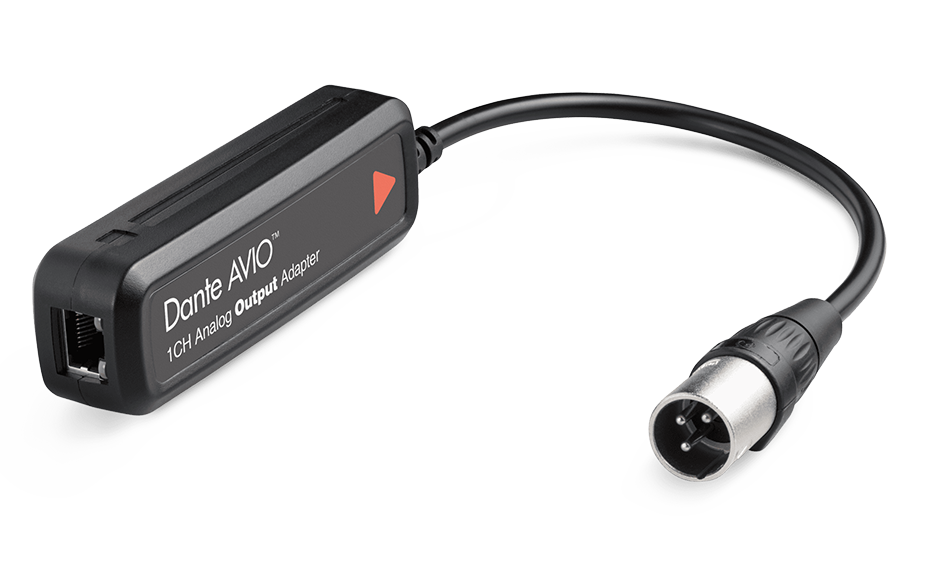

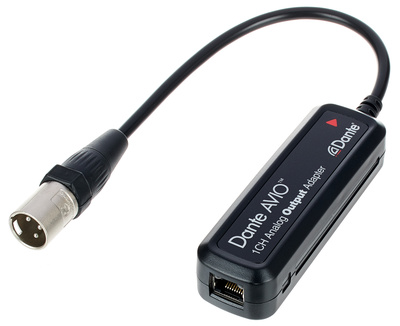

AVIO Analog out, 1 ch
Dante AVIO adapters connect analog, AES3, and USB gear to Dante systems. Compact, reliable, and ready to deploy fast, wherever the job takes you.
Available in 1-Ch and 2-Ch models, route Dante audio to amplifiers, powered speakers, mixers, or any playback device.
Key features
- Plug and Play: Plug into your gear, connect to the network, and start routing audio in Dante Controller.
- Cable Built In: No digging around for cables. Everything you need to connect is already built in.
- PoE Powered: No bulky power supplies to carry. Power and audio over a single Ethernet cable.
Specifications
| Part Number | ADP-DAO-AU-0x1 |
| Max signal level (balanced) | +18dBu / +4dBu / 0dBu 0dBV / -10dBV |
| Impedance | 150k Ohm balanced, 75k Ohm unbalanced |
| Connectors | RJ45 & XLR-M |
| Frequency Response | 20Hz to 20kHz (-/+0.5dB) |
| Dynamic Range | >100dB |
| Signal to Noise Ratio | >100 |
| Total Harmonic Distortion | <0.01 at +4dBu |
| Power | Class1 802.3af PoE |
| Power Consumption | <2 watts |
| Sample Rates | 44.1, 48, 88.2, 96 kHz |
| Bit depth | 16, 24, 32 |
| Dante Device Latency | 1, 2, or 5ms (configurable using Dante Controller) |
| Network Transport | Dante Audio over IP, AES67 RTP |
| Operating Temp | -10 to +50C |
| Storage Temp | -25 to +70C |
