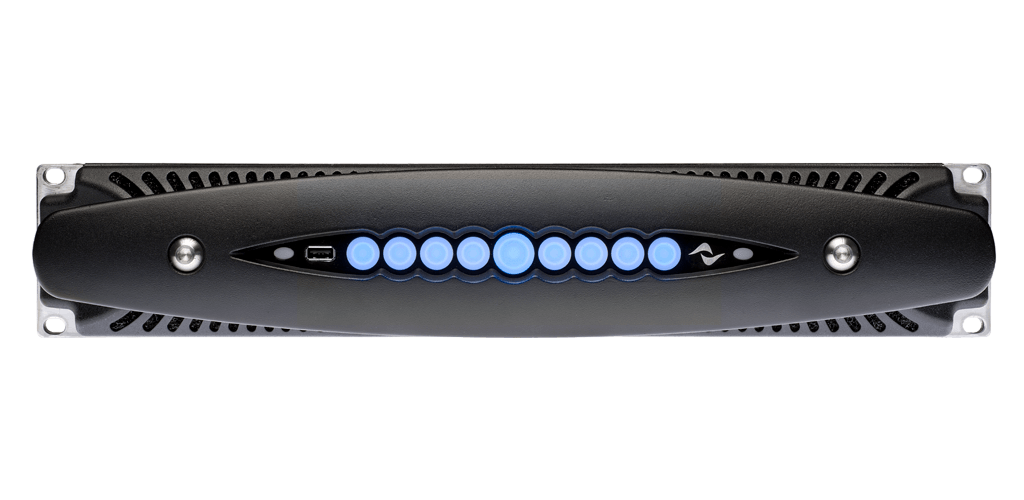

8-channel Benchmark Amplifier with DSP and optional Dante
Designed for both touring and sound system installations, the X Series delivers superb audio quality and expands the concept of the power amplification platform to include complete loudspeaker management — including all signal processing functions — in a single, lightweight unit.
The X Series is an amplifier that raises the bar in amplifier platform design and functionality, setting a new standard for quality and usability. Both versions of the X Series — the X8 (8-channel) and X4 (4-channel) — come standard with Ethernet for extensive amplifier control, full DSP functionality, routing, matrix, and worldwide compatible three-phase power supply.
The X Series natively supports AES3 and is also available with redundant Brooklyn II based Dante by Audinate. Providing up to 4 different selectable input sources per channel. Additionally, the X Series features full Armonía integration, WiFi connection for remote control, and monitoring on mobile devices through the dedicated web app.
Specifications
| Output power per channel | 5200 W @ 2 Ω | 3000 W @ 4 Ω | 1600 W @ 8 Ω |
| Output power per channel: Bridge mode | 10400 W @ 4 Ω | 6000 W @ 8 Ω |
| Max output voltage / current: Max unclipped output voltage @8 Ω | 175 Vpeak |
| Max output voltage / current: Current | 130 Apeak |
| AC main power: Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| AC main power: Nominal power requirement | 100 - 240 V @ 50/60Hz |
| AC main power: Operating voltage | 90 V - 264 V |
| Power consumption: Idle | < 200 W |
| Power consumption: Max | < 5000 W |
| THERMAL: Operating temperature range | 0° - 45° C - 32° - 113° F |
| Thermal dissipation: 1/8 of max output power @ 8 Ω | 115 V: 2117 BTU/h | 230 V: 1946 BTU/h |
| Thermal dissipation: 1/4 of max output power @ 8 Ω | 115 V: 3892 BTU/h | 230 V: 2875 BTU/h |
