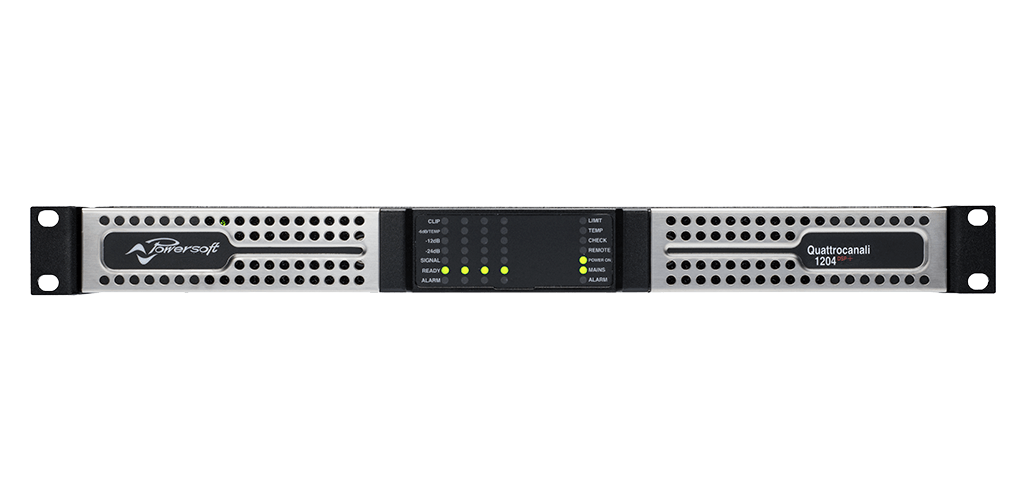

The Quattrocanali 1204 DSP+ is a 4-channel Class D power amplifier for small to medium-scale installations, with on-board DSP and AES67 digital audio networking. It delivers 1,200 W in total from a 1 RU chassis and works with low impedance loads (from 2 Ω) and 70 V / 100 V distributed lines, or any mix of the two. Powersoft's patented Smart Rails Management recycles the reactive energy coming back from the loudspeakers, lowering power consumption and heat dissipation.
- Output per channel: 300 W at 8 Ω, 300 W at 4 Ω, 400 W at 2 Ω; 300 W on 70 V / 100 V lines
- Bridge mode: 800 W at 4 Ω, 600 W at 8 Ω
- 4 analog inputs and 4 AES67 inputs
- DSP: raised-cosine, custom FIR and parametric IIR equalisers, crossovers, delay, TruePower, RMS and peak limiters, Active DampingControl
- Control and monitoring with the ArmoníaPlus software
- Universal switch mode power supply with Power Factor Correction, 100-240 V
- 1 RU, 483 x 44.5 x 358 mm, 7 kg
