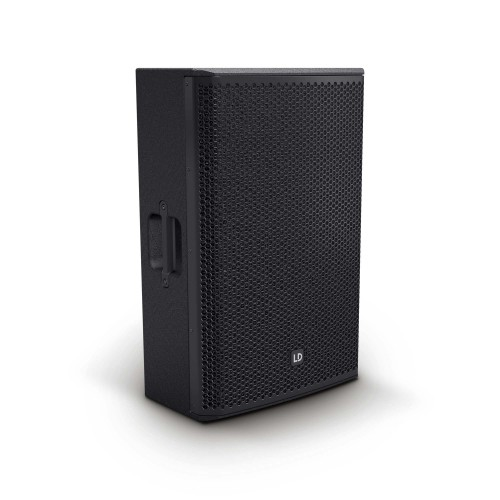

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full-range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The STINGER® 15 G3 provides 500 watts of continuous power; the maximum sound pressure level is 127 dB. Its specially developed 15" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion.
The STINGER® 15 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The STINGER® 15 G3 is an affordable solution for professional PA applications; extensive accessories support use on stage and in fixed installations.
- Passive 2-way bass-reflex PA speaker
- 500 watts RMS
- 127 dB maximum sound pressure level
- 15" Custom Woofer and BMS driver
- Homogeneous dispersion pattern through a BEM-optimised tweeter wave guide
- Birch plywood cabinet with extremely durable polyurea coating
- Shock-resistant front grille to protect the loudspeaker
- 36 mm Dual Tilt stand attachment with 0° and 5° tilt angle
- Extensive and smart accessories for installation and transport
General
| Type (active/passive) | Passive |
|---|---|
| Power handling (Peak) | 1000 W |
| Power handling (RMS) | 500 W |
| SPL (1 W/1 m) | 100 dB |
| Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %) | 127 dB |
| Frequency response | 50 Hz |
| Impedance | 8 Ω |
| Speaker system | 2-way system |
| Dispersion | Hor.: 90° / Vert.: 50° |
| Monitor angle | 54 ° |
| Number of inputs | 1 |
| Input connector types | Standard speaker connector 4-pole male & speakON® |
| Number of outputs | 1 |
| Output connector types | Standard speaker connector 4-pole male & speakON® |
| Colour | Black |
Bass driver
| Size | 15 " |
|---|---|
| Manufacturer | Custom Made |
| Magnet | Ferrite |
| Voice coil | 3 " |
Tweeter
| Driver size | 1 " |
|---|---|
| Manufacturer | BMS |
| Magnet | Ferrite |
| Voice coil | 1 " |
Housing
| Design | Bass reflex |
|---|---|
| Number of handles | 1 |
| Mounting type | M10 for SuperClamp |
| Flange | 36 mm (0°/5°) |
| Cabinet material | Birch plywood |
| Material thickness | 15 mm |
| Front grille material | Aluminium |
Dimensions & weight
| Width | 480 mm |
|---|---|
| Height | 737 mm |
| Depth | 455 mm |
| Weight | 25.7 kg |
Other properties
| Included accessories | Mains cable |
|---|
