Precision stagetracking for sound, light and media
TiMax TrackerD4 Precision Stagetracking liberates your event production allowing sound, lighting and video designers to focus on the creative

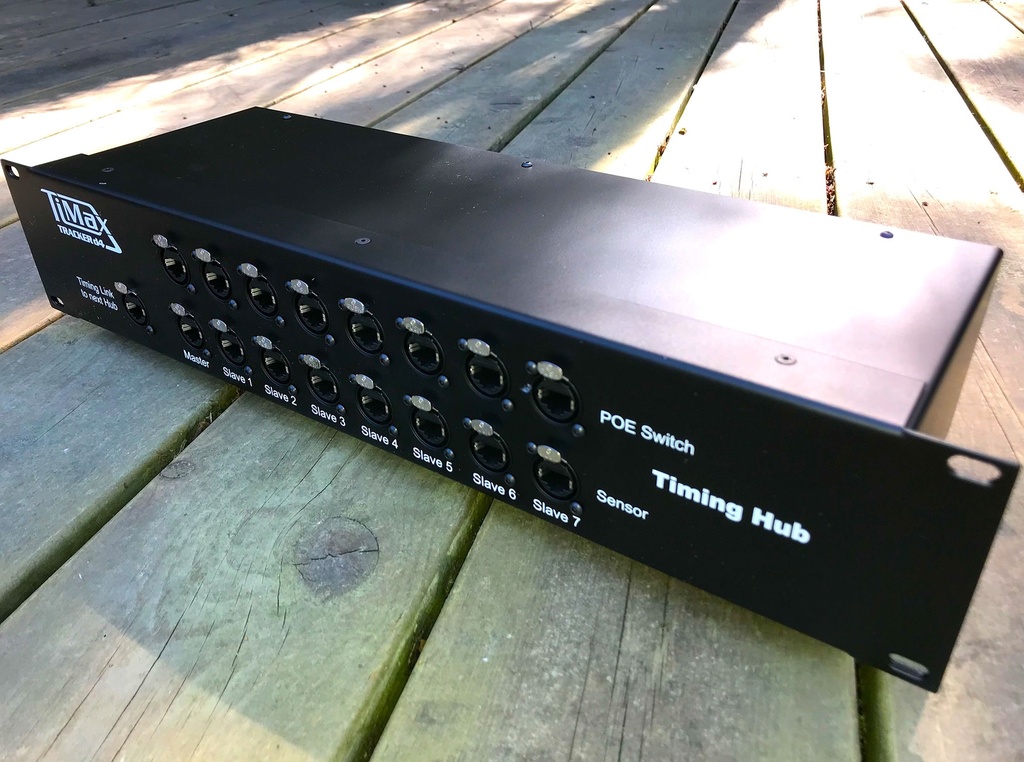

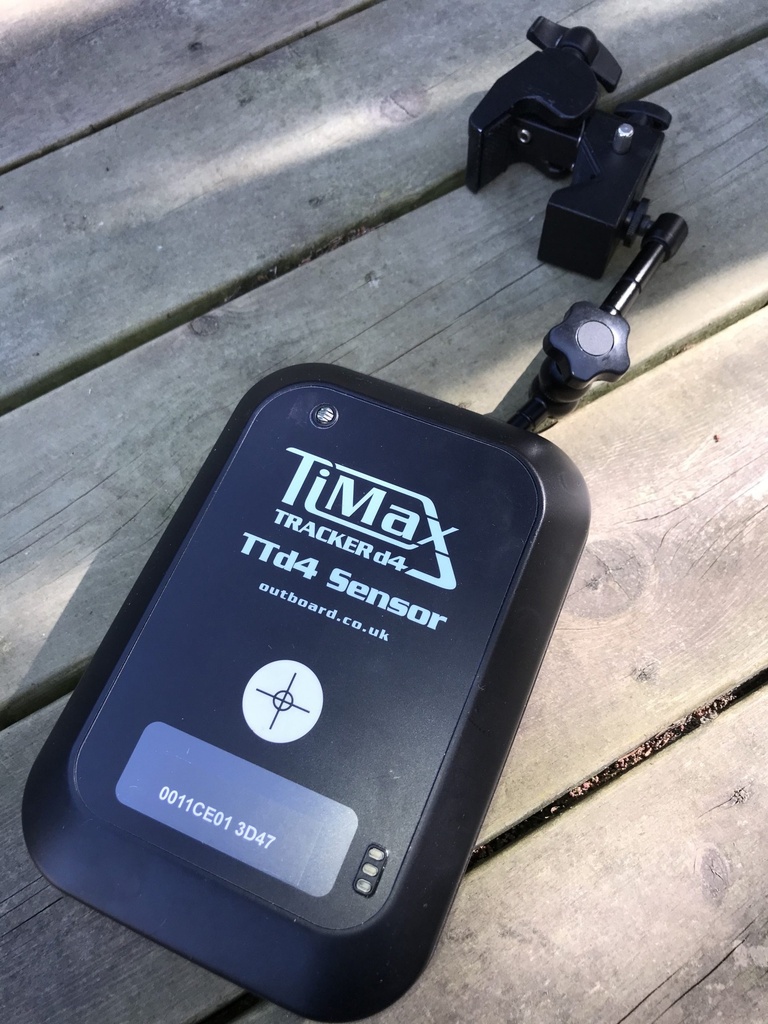

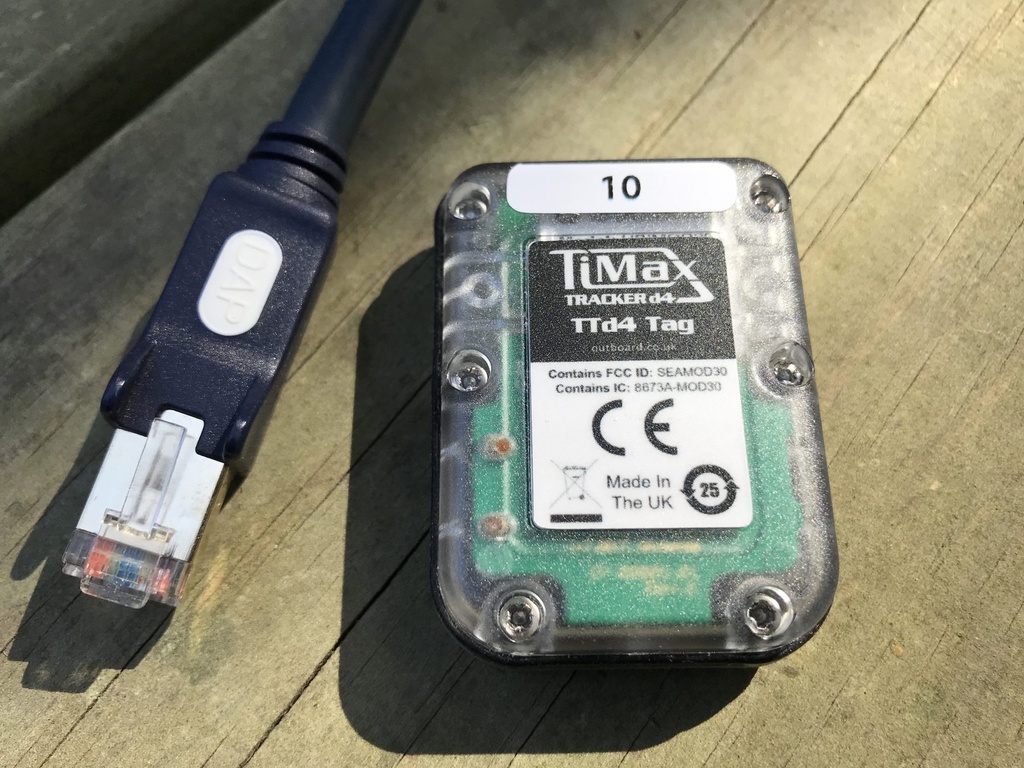

- TTd4 Sensor, 220 x 150 x 90mm (8.7” x 5.9” x 3.5”), 1.1Kg (38.8oz), IP69K, 15W MAX POE - TTd4 Tag, 54 x 40 x 14mm (2.1” x 1.6” x 0.55”), 35g (1.2oz), IP69K, LTC-7PN lithium cell - Tag Battery LTC-7PN lithium cell, non-rechargeable, up to one year's life (10Hz rate) - Tag refresh rate 10Hz (standard) to 20/30/50Hz (factory-set), up to 40 tags simultaneously - Sensor/Tag range up to 60m (260’), tracking accurate to 10cm (4”) in 3-dimensions - Sensor redundancy, minimum two Sensors need to see a Tag, typical system 6 or 8 Sensors - Sensor individual field of view 140H x 90V degrees - Temperature, Humidity: Sensors -40°C to +65°C (-40°F to +149°F), 0-95% - Temperature, Humidity: Tags -40°C to +85°C (-40°F to +185°F), 0-95% - Tags transmit UWB RF pulses over 6-8GHz range IEEE802.15.4f compatible - Certifications US: FCC Part15 ClassB; Canada: RSS-GEN, RSS-210, RSS-220; EU: CE; Japan; Russia - Connection Ethercon CAT5e UTP or higher, 80m max each Sensor to TTd4 POE Timing Hub - POE Timing Hub (2U 19” x D15cm) with Ethercons + 1U POE Switch 16 x RJ45 (supplied)
