Prolights ECLFRESNELDYWH

كشّاف فرينل WH، LED 1x230W 5600K، زاوية 17-66°، يشمل بارن دور

بالعرض فقط

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ECLFRESNELDYWH

الفئة: كشّاف فرينل

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

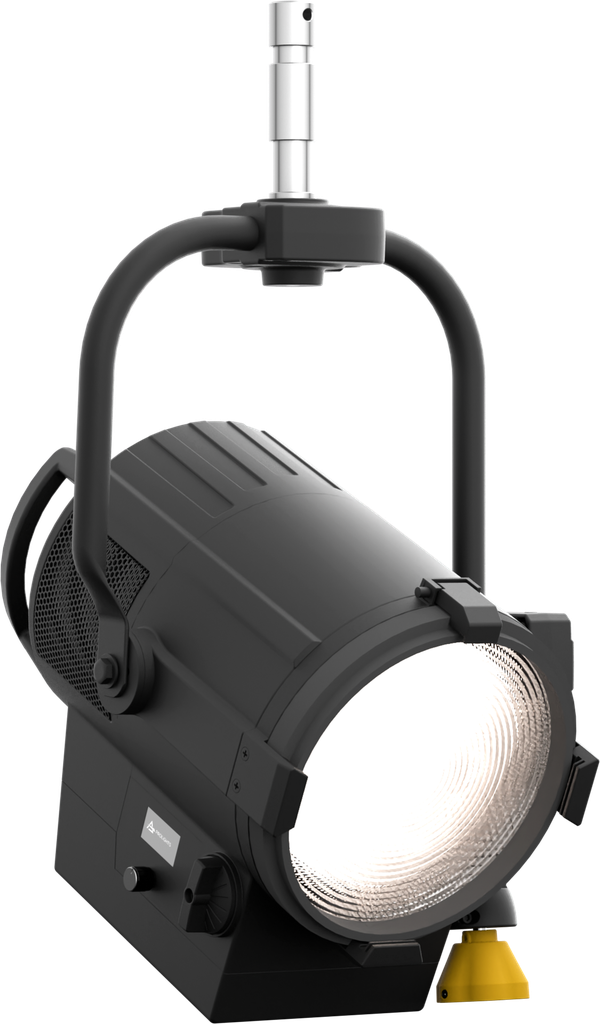

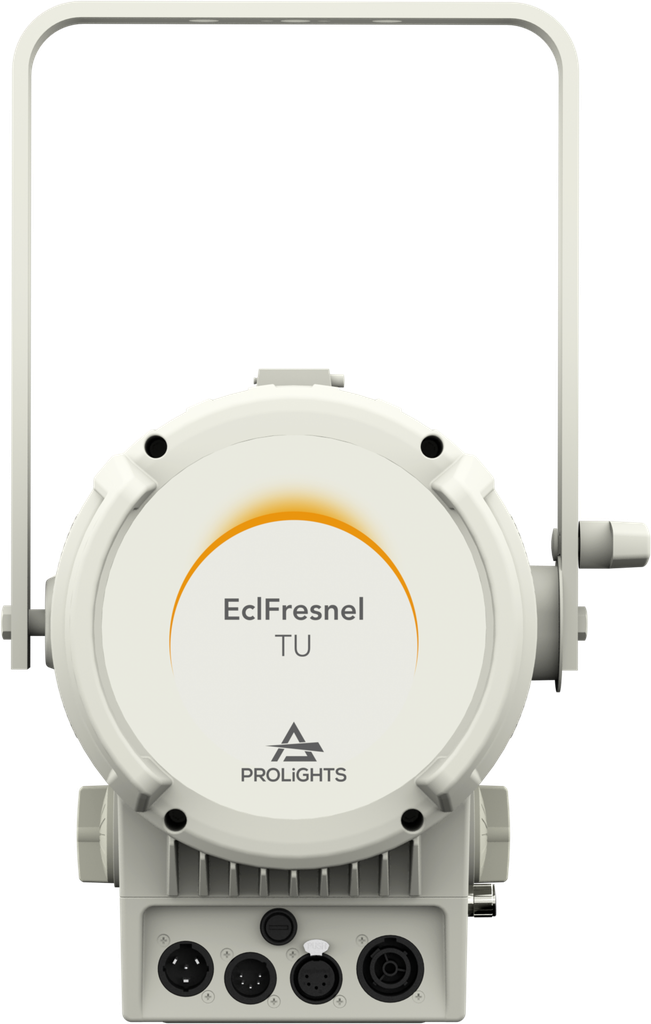

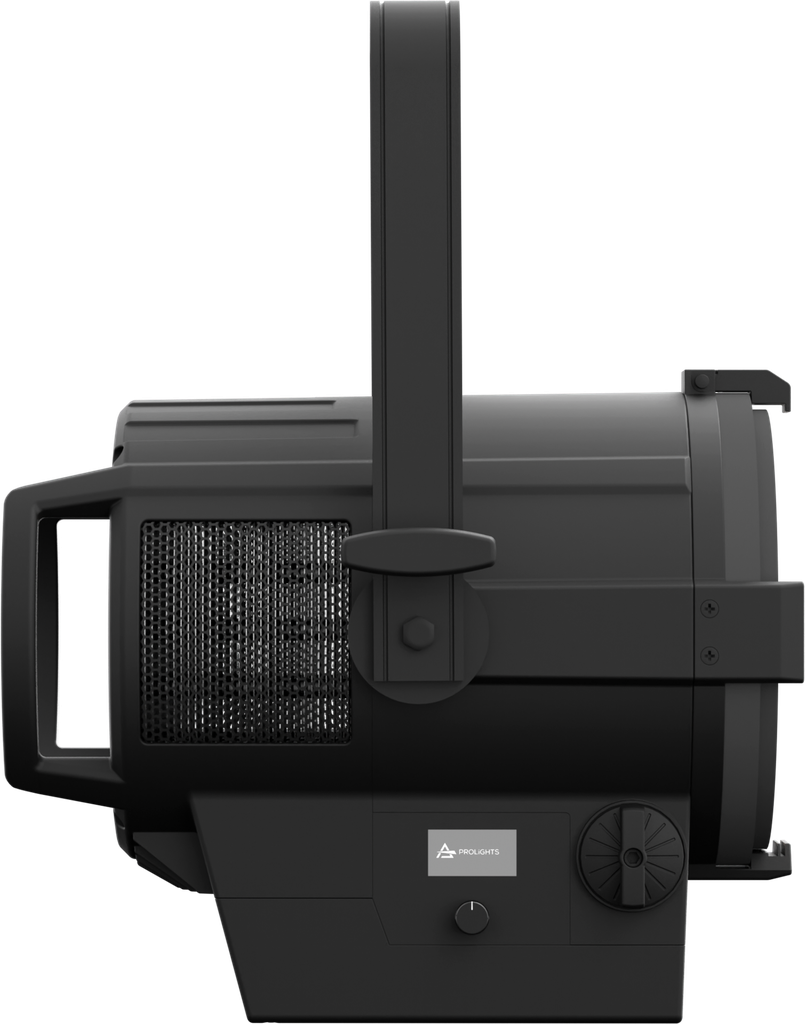

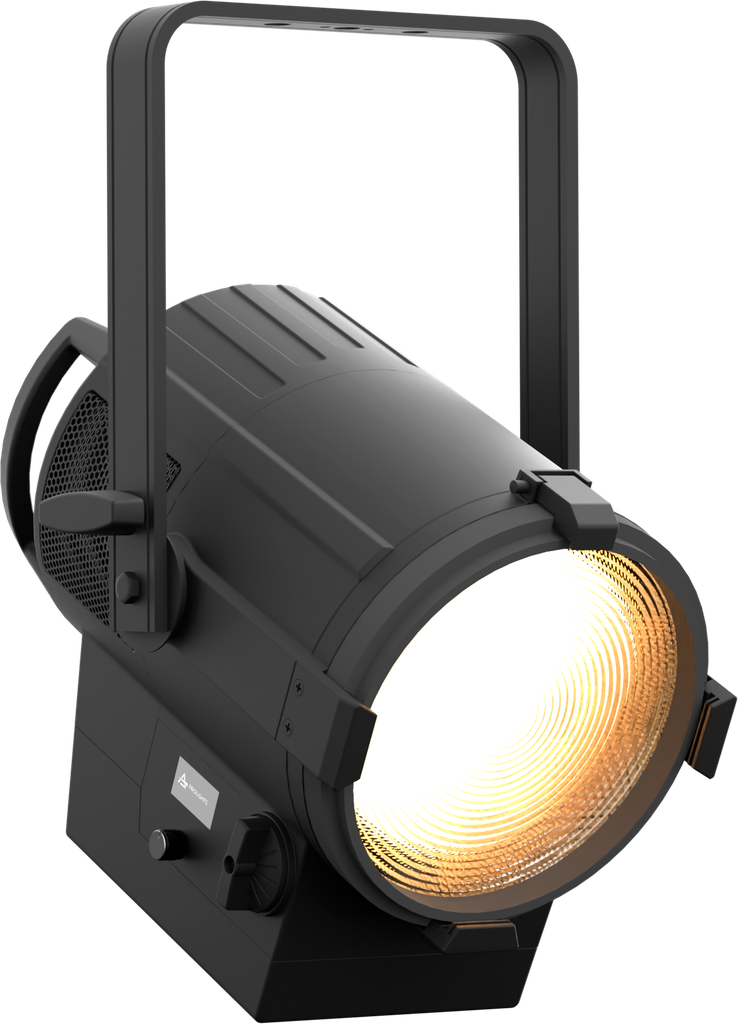

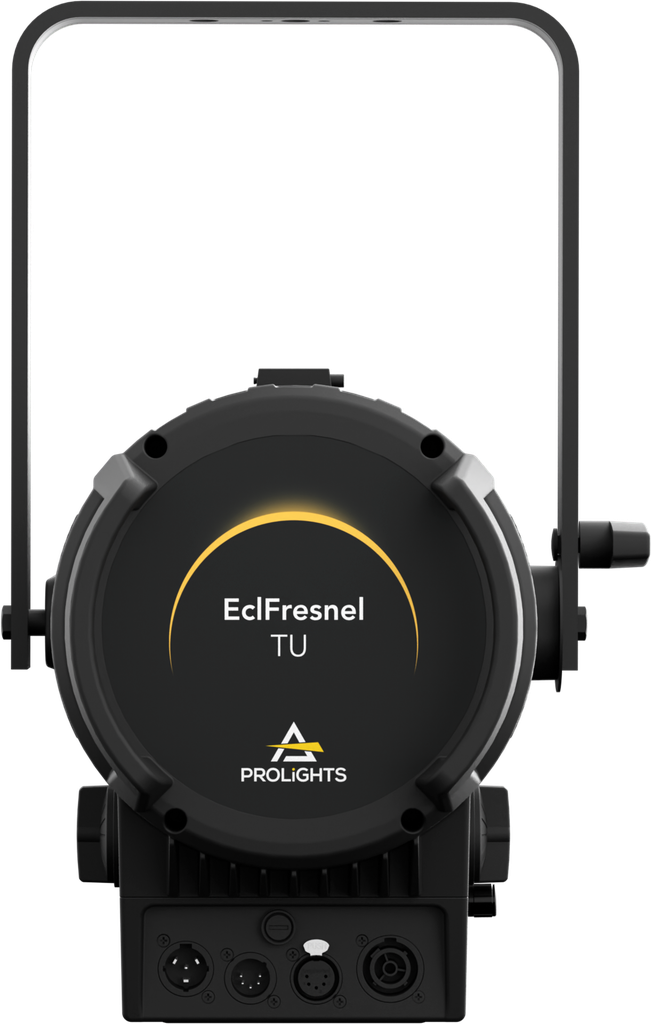

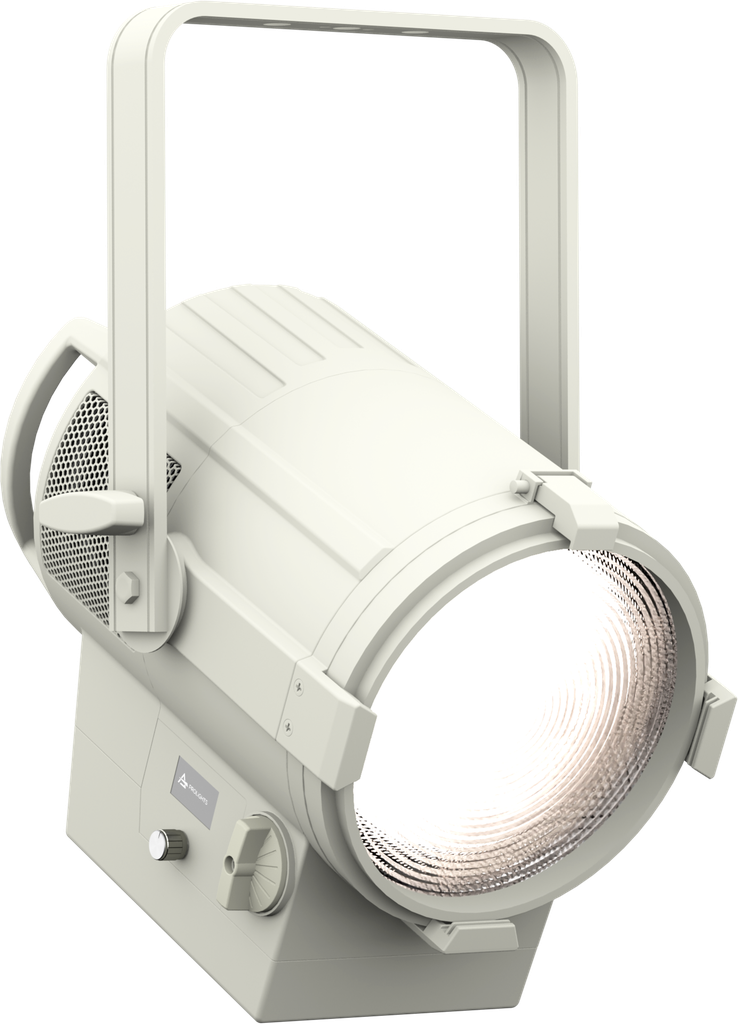

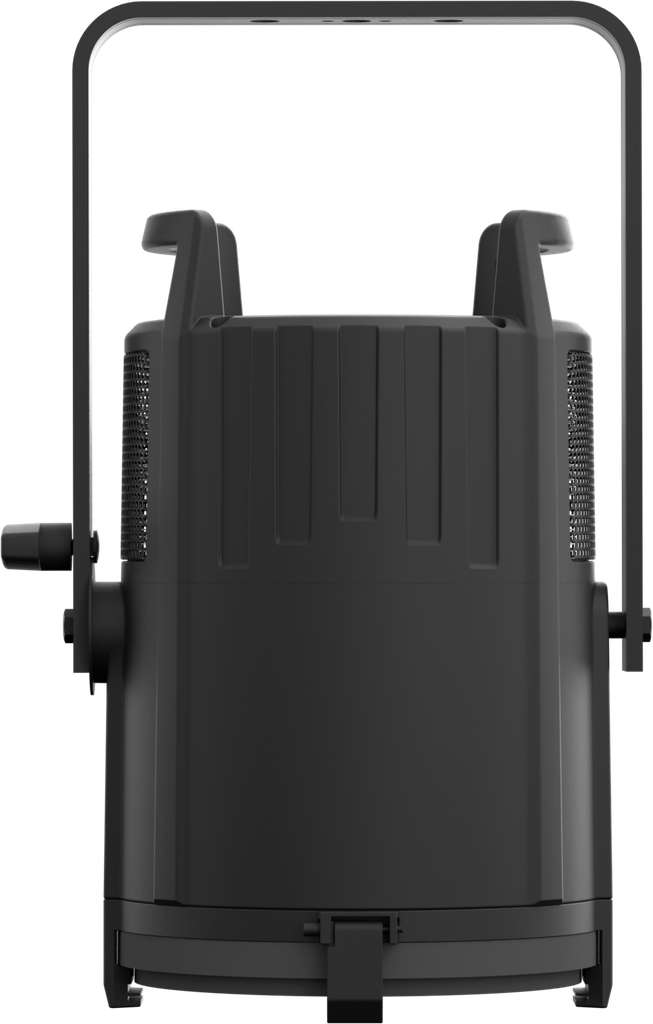

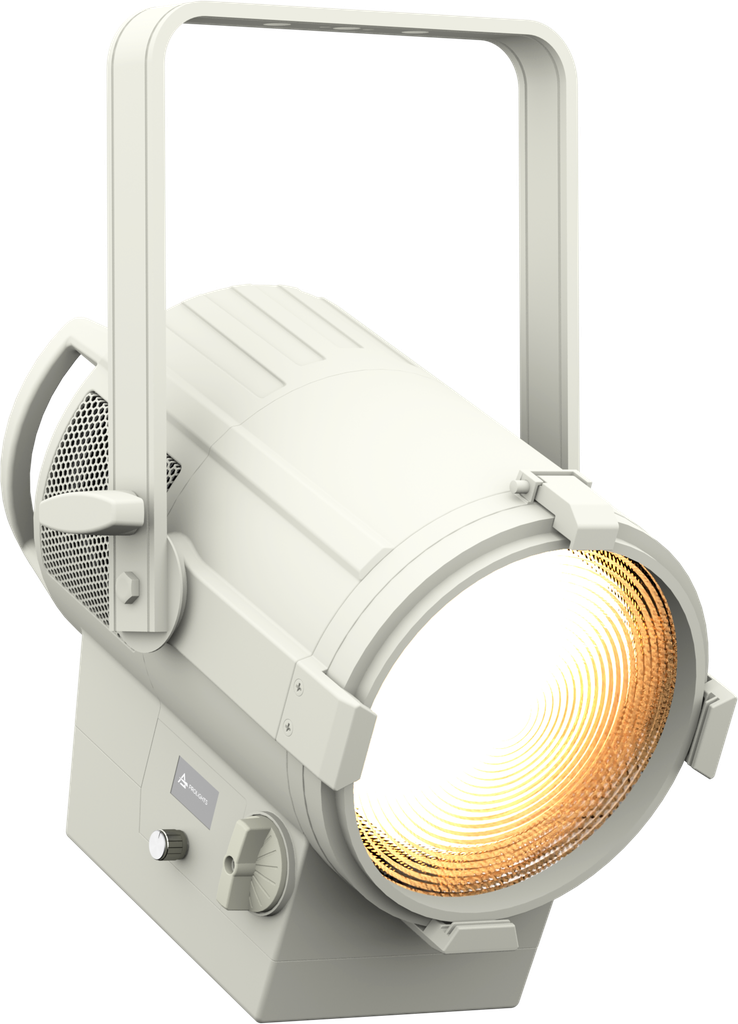

EclFresnel is the LED replacement for a standard tungsten 1.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a powerful source that focuses on outstanding colour rendition. The EclFresnel adds all the advantages of LED to the Fresnel.

TU (3.200 K) and DY (5.600 K) versions available both with HD dimming

Fresnel lens with 17° to 66° zoom range

Silent operation for studio and stage use

Features:
TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
Fresnel lens with 17° to 66° zoom range
Silent operation for studio and stage use

LIGHT SOURCE

Source:

230
W

high-power white LED
Source CCT:

(TU) 3.200 K - (DY) 5.600
K
Luminous flux:

(TU) (17°) 10'842 lm (66°) 13'320

@Full
Luminous flux:

(DY) (17°) 12'546 lm (66°) 15'623 lm @full
Lux:

(TU) (17°) 3'728 lx - (66°) 1'019
lx

@5 m full
Lux:

(DY) (17°) 4'260 lx - (66°) 1'182
lx

@5 m full
CRI:

(TU) >98 - (DY) >95
R9:

(TU) >90 - (DY) >90
TLCI:

(TU) >98; (DY) >95
TM30 Rf:

(TU) >92; (DY) >89
TM30 Rg:

(TU) >99; (DY) >98
Source life expectancy:

> 50.000 h

OPTICS

Zoom range:

17° - 66
°

manual
Lens diameter:

200
mm
Lens type:

fresnel zoom lens
Other:

barndoor and gel frame included

COLOUR SYSTEM

Colour mixing:

white

DYNAMIC EFFECTS

Static mode:

selection of static dimmer
Manual mode:

manual adjust of dimmer throught menu and knob
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, rotatory knob
DMX channels:

ch1: 1 / 2 - ch2: 2 / 3 / 5
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Master/Slave:

for synchronised operation of more units linked in a chain
Other:

16bit control of dimmer

MOVEMENT

Pan:

(for pole operated version) 360
°

with manual regulation
Tilt:

(for pole operated version) 340
°

with manual adjustment

ELECTRONICS

Dimmer:

linear 0 - 100%, manual knob dimmer
Dimmer curves:

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

220
W
Output (at 230V):

17

units on a single power line
Power factor:

0,95

PHYSICAL

IP rating:

IP20
Cooling:

heat pipe with low-noise fan
Housing:

Sturdy die-cast aluminium body
Finish:

black (RAL 9004) or white (RAL 9010)
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

283x440x343
mm
Dimensions with PO system (WxHxD):

341x545x343
mm
Weight:

7,5
kg
Weight with PO system:

9,7
kg

INSTALLATION

Suspension and fixing:

bracket for hanging and positioning
Hardware on-board:

included

filter frame, 8 doors barndoor, spigot
Other:

Spigot 28 mm

CERTIFICATIONS / REPORTS

Compliance:

CE, UKCA, RCM

Eclfresnel_A4_DATASHEET_(EN).pdf Data Sheet

GENERAL_SAFETY_INFORMATION.pdf User / O&M Manual

Eclfresnel_USER_MANUAL_EN.pdf User / O&M Manual

ECLFRESNELDYWH - Drawing (PDF).pdf Drawing (PDF)

ECLFRESNELDYWH - Drawing (CAD).dwg Drawing (CAD)

ECLFRESNELDYWH - DMX Chart.pdf DMX Chart
