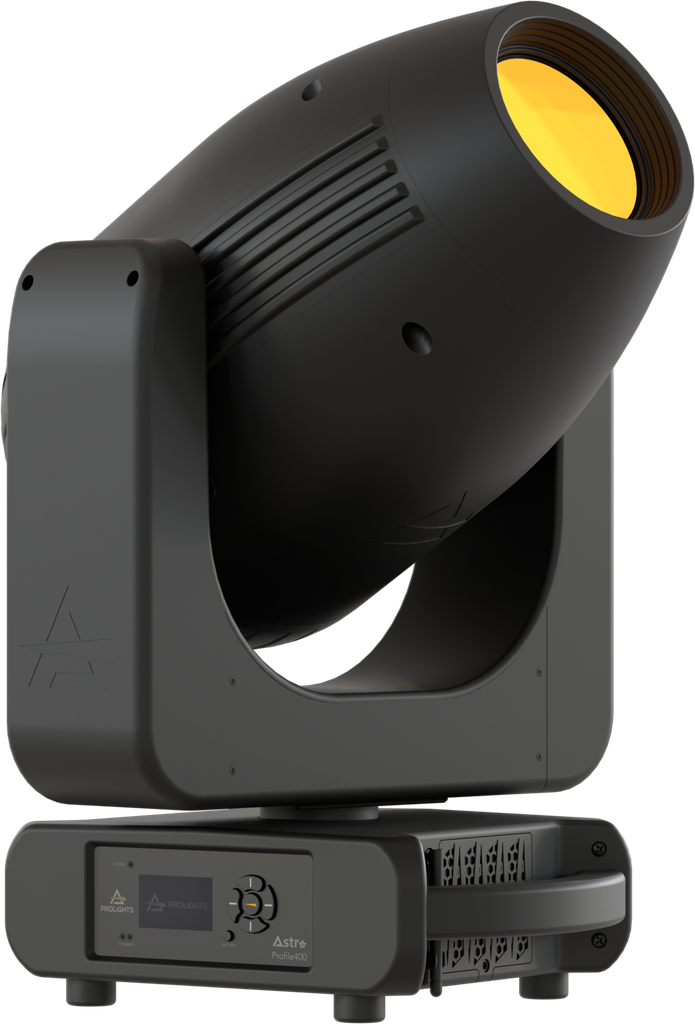

Prolights ASTRAPROFILE400

بروفايل LED متحرك عالي الدقة بقدرة 400W، زوم 6,5°-50°، CMY، CTO، منشور 4f، 27,6kg

بالعرض فقط

السعر عند الطلب

إضافة إلى قائمة الأمنيات

عرض على موقع الشركة المصنّعة

رمز المنتج: ASTRAPROFILE400

الفئة: أضواء متحركة داخلية

العلامة التجارية: Prolights

الضمان 2 سنوات

دعم متخصص دعم ما قبل وما بعد البيع

استشر خبيراً

فريقنا جاهز لمساعدتك.

استشر خبيراً

فريقنا جاهز لمساعدتك.

اتصل بنا

تحتاج عرض سعر؟

سنوفر لك تسعيرة مخصصة لمشروعك.

طلب عرض سعر

The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects.

Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission at 7,000K, reaching 17.500 lumens whilst achieving a flat field beam projection.

The Astra Profile400's optical system moves linearly from 6,5° to 50°, and it's equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filters, prism and iris.

Indoor LED Moving Profile equipped with a 400W LED source (7,000K)

6,5° to 50° linear zoom

4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, frost filter, prism and iris

The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects.

Features:
Indoor LED Moving Profile equipped with a 400W LED source (7,000K)
6,5° to 50° linear zoom
4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, frost filter, prism and iris

LIGHT SOURCE

Source:

400
W

White LED
Source CCT:

7.000
K
Luminous flux:

(6,5°) 9'143 - (50°) 17'598
Lux:

(6,5°) 37'468 lx (50°) 1'690
lx

@5 m
CRI:

> 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

6,5° - 50
°

motorised linear zoom
Lens diameter:

120
mm
Lens type:

HD anti-reflection lenses with achromatic coating
Focus:

motorised 16-bit

COLOUR SYSTEM

Colour mixing:

linear CMY
CCT:

linear CTO correction 2.700 K ~ 7.000 K
Colour wheel:

open + 5,600K high CRI filter + 7

colour filters

DYNAMIC EFFECTS

Shutter system:

4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel:

animation wheel with CW and CCW rotation
Circular prism:

4
-f

with bi-directional rotation, indexing
Frost:

linear 0-100%
Iris:

5 - 100
%

motorised iris

GOBOS

Rotating gobos:

7

rotating gobos + open, interchangeable, indexing
Gobo size:

outer: 25,7 mm - image: 20 mm - thickness: 1,1 mm

CONTROL

Supported Protocols:

DMX512, RDM, ArtNet, sACN, CRMX
DMX channels:

29 / 39 / 54
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Other:

16bit control of dimmer and colour

MOVEMENT

Pan:

540
°

- 16-bit resolution
Tilt:

270
°

- 16-bit resolution
Position feedback:

automatic repositioning after external movement
Pan / tilt lock:

for transport and maintenance

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Display battery:

included, self-charging battery backup
Selectable PWM:

600 to 50000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX2 (not included)

CONNECTIONS

Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Data connection:

Art-Net

RJ45 IN/OUT
