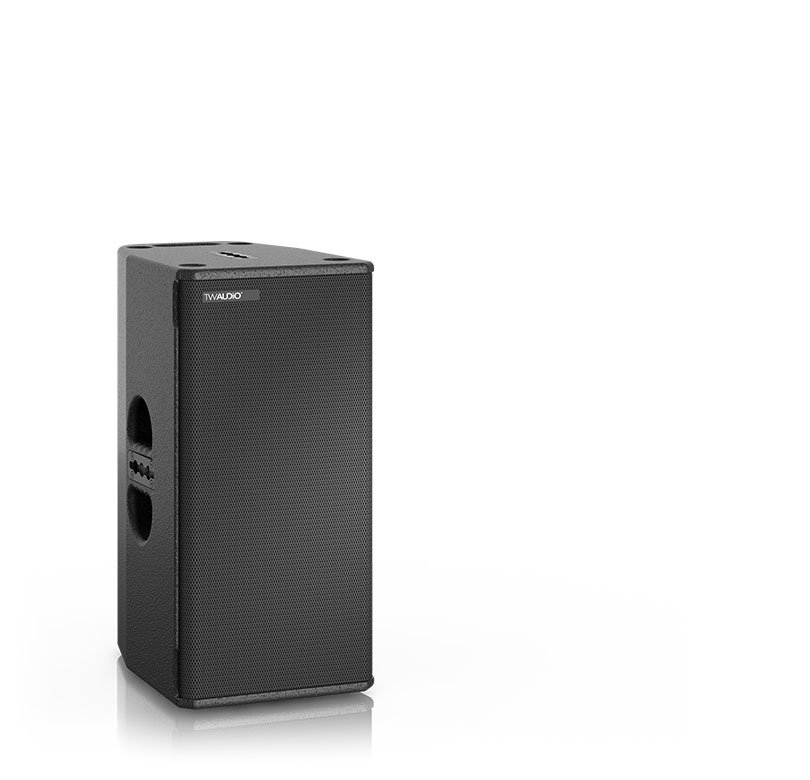

The T20 has been finely honed to meet the high expectations of our customers. A slim, compact top measuring 30 cm (11.8") wide and comprising two 10" woofers and a 1.4" mid-high section, the T20 boasts a symmetrical design that makes it ideal for use both horizontally and vertically. Within the enclosure, a sophisticated driver array and passive crossover mean the T20 achieves constant directivity across both planes.
However, its potential is fully realized when oriented horizontally, perhaps for use as a front or drum-fill. In this configuration, the performance of most two-way enclosures is compromised, but the T20 remains entirely consistent. Other applications for the T20 include use as a center channel or in installations (see also our T20i for fixed installations) where ceiling height is a challenge.
Should a longer, narrower application be required, the standard 90 × 50 degree high range horn can easily be rotated or changed to a 60 × 40 degree variation - all without the need for tools and within seconds.
Whether working in full-range, standalone mode, with a subwoofer or in conjunction with vertical arrays, the T20 has the power to exceed your expectations in every environment.
Specifications
| Drivers | LF: 2 × 10“ HF: 1 × 1.4“ exit with 3" diaphragm |
| Frequency range | 60 – 18000 Hz |
| Power capacity program / peak | 1000 / 2000 W |
| Impedance | 8 Ω (passive) |
| Coverage (h × v) | 60° × 40° or 90° × 50° HF-horn, exchangeable, rotatable |
| Sensitivity 1 W / 1 m | 106 dB (passive) |
| SPLmax / 1 m | 138 dB |
| Connection | NL4 1± |
| Dimensions (H × W × D) | 600 × 300 × 400 mm [23.62 × 11.81 × 15.75 in] |
| Weight | 21.8 kg [48 lbs] |
| Finish | Polyurea coating, black |
| Options | Warnex texture paint, RAL Colors |
| color | Black, White |
| Dispersion | 60°, 90° |
