Hybrid moving light with direct diode laser source

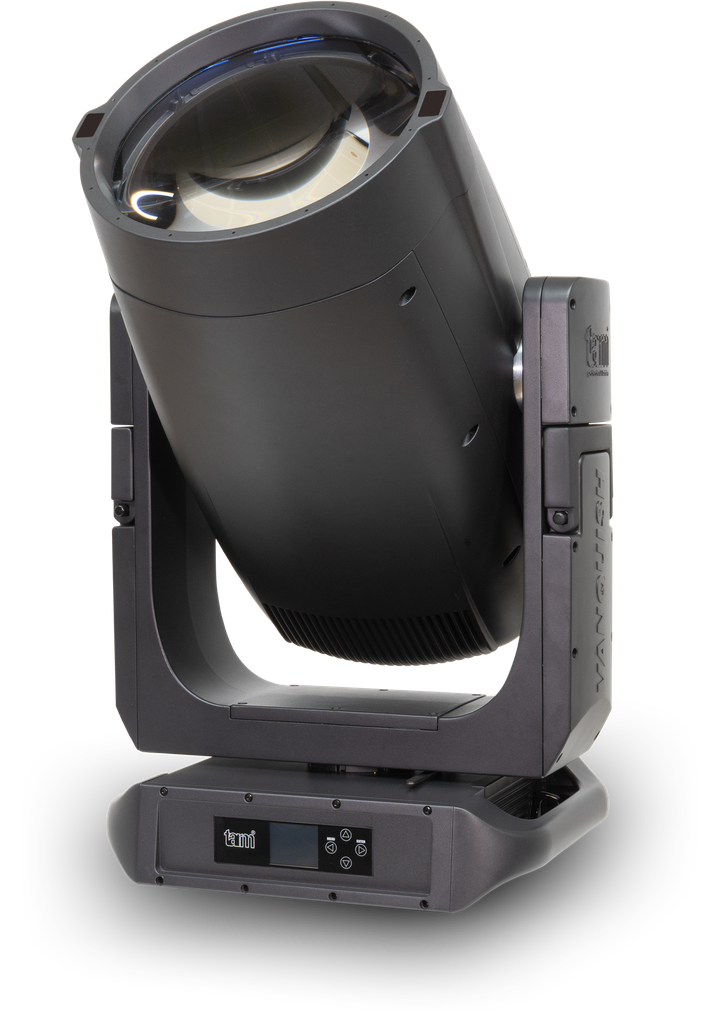

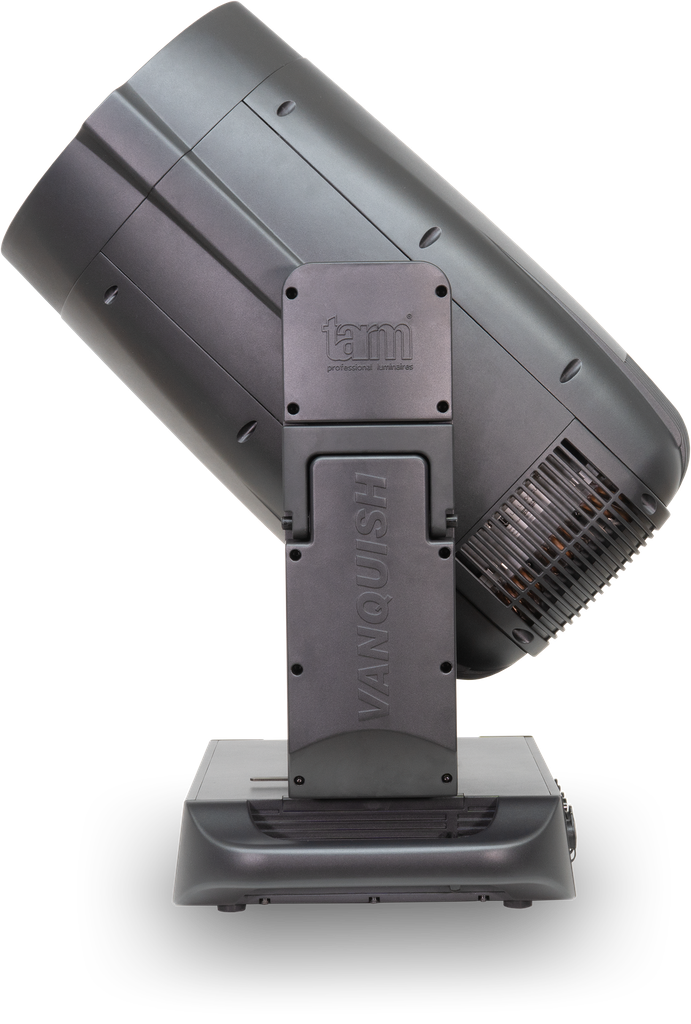

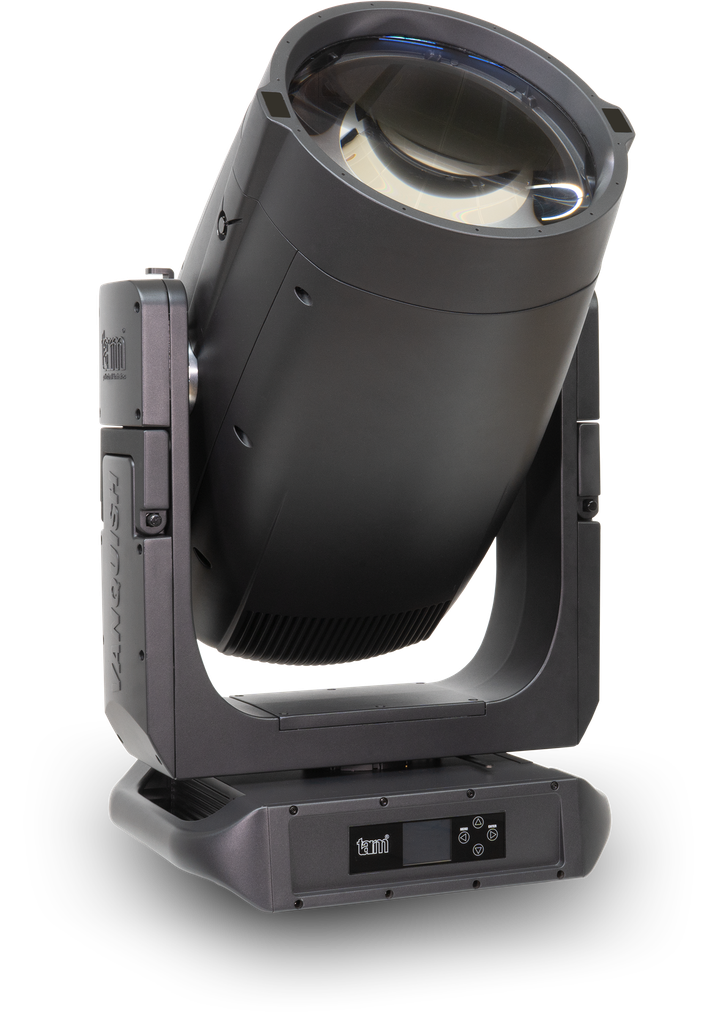

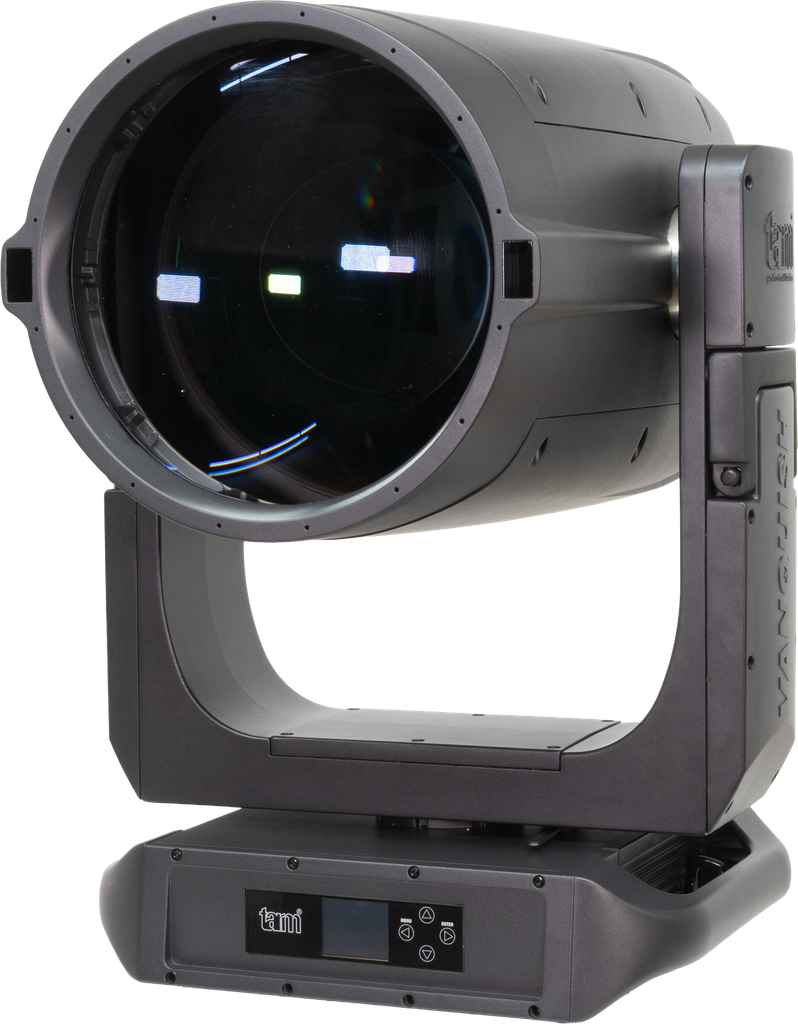

The tarm VANQUISH is a turbo hybrid moving head featuring a native RGB laser light source for saturated, intense colors and a precise beam. Due to highly efficient optics that maximizes light output with minimal loss, an exceptional 2.2 million lux can be achieved at a distance of 20m.
With a zoom range from 0.38° to 45°, the VANQUISH is incredibly versatile – capable of producing an ultra-sharp, eye-catching beam over long distances, or zooming out to a wide angle projection or even to a wash-light effect.
Key features
- Extremely bright – Using the direct diode laser engine developed and manufactured by LaserAnimation Sollinger and tarm ensures optical precision and a homogenous light distribution in the spot.
- Wide zoom range – Delivers an exceptionally sharp, highly visible beam over long distances while also being ideal for classic, wider projection applications.
- Extra fast head movement – incredibly fast yet exceptionally smooth when needed.
- Extensive color shades – Native RGB Laser source mixing enables over 16.5 million vivid color hues. Saturated colors are extraordinary bright with this light engine technology.
- Pure RGB colors
- Beam optimized gobos – Designed for excellent beam shape representation.
- Linear and radial prisms – Stackable and rotatable for maximum creative flexibility.
- Beautiful rotating glass effects gobos – Usable with a wider deflection angle for unique visual effects
- Rotatable Frost filter – Enhances creative possibilities when combined with glass effects.
- Super silent – Theater mode keeps the noise level below 40dB.
- Versatile control profiles – Three different DMX profiles offer maximum flexibility.
- Laser class 1, risk group 3
- Waterproof IP66
- Durable magnalium housing – this is metal, not plastic!
- Delivered in professional flight case
Specifications
| Light source | 650 W RGB direct diode laser source |
| Lens diameter | 300 mm |
| Zoom | 0.38° - 45° |
| Focus | adjustable |
| Luminous flux | >17'000 lm *at source |
| Lux @ 100m | > 72‘000 lx |
| Rated Lifespan (L70) | 20,000 hrs |
| Pan/Tilt | 540°, infinite / 270° (8-16 bit) |
| Dimmer | 0 - 100%, 24bit |
| Static Gobos | 25 gobos, gobo shake + open |
| Rotating Gobos | 12 rotating gobos, gobo shake |
| Colors | Direct color modulation at source |
| Color mixture | Direct RGB source modulation |
| Prism | Two prism wheels with three radial prisms and four linear prisms, bi-directional rotation, adjustable speed, stackable prism wheels |
| Frost | 3 frost filters on the prism wheels, stackable |
| Cooling | Forced Convection |
| Temperature range | -20°C up to +45°C |
| IP rating | IP66 |
| Power supply | 100-240V AC 50/60Hz |
| Power consumption | 800 W |
| Connectivity | 5-pin DMX in and through, RJ45 in and through, USB-C, True1-type in and through |
| Material | Magnalium and die-cast |
| Color | Black |
| Transportation | Delivered in professional flight case |
| Dimensions | 368 mm x 501 mm x 831 mm |
| Weight | 61,5 kg |
| Comfort features | Battery powered mainboard for easy patching without power. Handles on top part of moving arms for convenient carrying of the fixture. |
| Scope of delivery | Heavy duty wooden Flightcase, power cable, operation manual |
