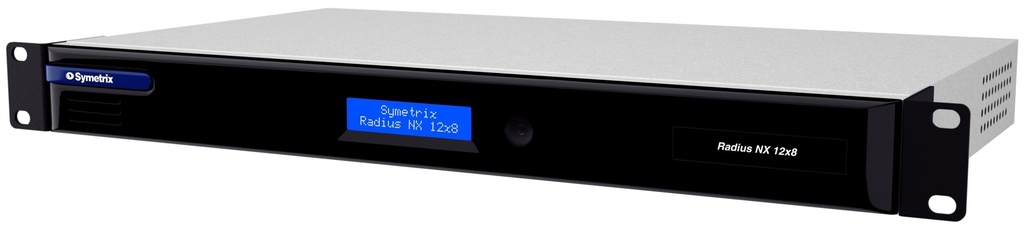

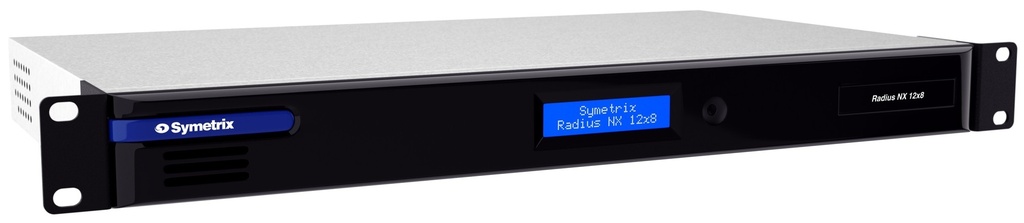

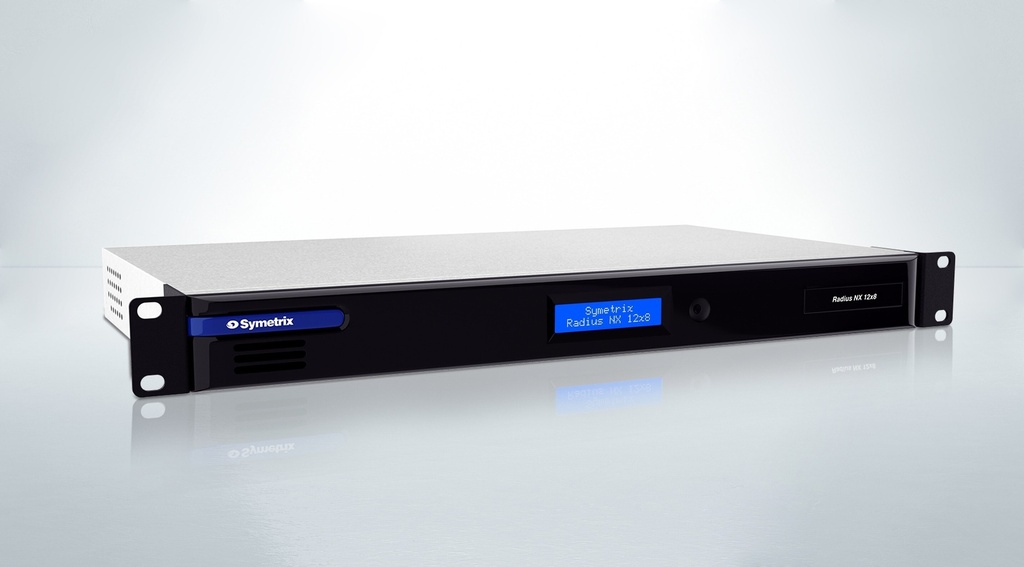

Symetrix Radius NX 12x8 USB-B (80-0206)

Built for Flexible Connectivity and Expandability

• 12x8 and 4x4 IO Models
• 64x64 Dante Option
• AEC Option
• USB Port
• 1 Expansion Slot

From Clarity to Control

Choose models with integrated Dante channels for expansive audio networking.

Communicate with unparalleled clarity and intelligibility with full bandwidth AEC.

Eliminate or reduce the need for external switches while avoiding 100 Mbit bottlenecks with a built-in 4-port switch for Dante, and control networking.

Deploy large and complex systems around a single unit with dedicated resources for managing matrices and for performing signal processing tasks.

Maximize input/output counts or add special-purpose functionality to reduce total system cost with an integrated option card slot.

Meet diverse application requirements with extensive control options including computers, tablets, touchscreens, and remotes.

Performance and Processing

• Ultra-low noise Symetrix preamps with 3 dB gain steps
• Optional 64×64 channel redundant Dante integration
• Optional 8 or 16 channel AEC coprocessor modules

I/O Capabilities

• 1x I/O Expansion Card slot
• 6 optional expansion I/O card types
• 4×4 GPIO
• RS-232 Control Terminal Blocks
• ARC Remote Port
• USB audio port for computer conferencing connectivity
• USB support for 8 channels of audio recording and playback
• Dual Dante and dual Ethernet ports

Control and Monitoring

• Embedded web server provides remote metering, diagnostics and configurable ARC-WEB browser control
• Extensive control options via Symetrix SymVue for Windows, T Series Touchscreens, Control Server, ARC remotes, W Series remotes, ARC-WEB, TCP/UDP

System Display and Power

• Front panel system LCD displays
• Internal Power Supply

Key features

• Radius NX 4x4 (4 analog inputs, 4 analog outputs), Radius NX 12x8 (12 analog inputs, 8 analog outputs
• Optional 64×64 redundant Dante module
• Optional 8 or 16 channel AEC coprocessor
• 1x I/O expansion card slot supports analog in, analog out, AEC, USB, VoIP, or analog telco cards
• USB port for computer-based soft-conferencing or 8 channels of multitrack recording and playback
• Embedded web server for remote metering, diagnostics, and configurable ARC-WEB browser-based control
• Extensive control connectivity with Symetrix components and TCP/UDP
• Third-party control via Intelligent Modules with Lua scripting
• Unmatched sound quality from ultra-low noise preamps with precise gain settings.
