DISCONTINUED
This product is no longer part of our range.
Just the right amount of processing for various environments
- 4×4, 8×8, 12×12, and 16×16 IO Models.
- 64×64 Dante Option
Scale Smart, Control Seamlessly
Choose among four models with common channel configurations from 4×4 to16×16, providing the right amount of processing for various environments without spending on extra features.
Easily increase analog input and output counts by adding Symetrix I/O expanders to match specific requirements without the need for an additional DSP unit.
Include an optional 64×64 channel Dante module to enable multi-channel audio networking over IP to manage a variety of networked systems and devices, including third-party components.
Meet diverse application requirements with extensive control options, including computers, tablets, touchscreens, and remotes.
Performance and Processing
- High Performance Symetrix preamps
- Optional 64×64 channel Dante integration
I/O Capabilities
- ARC Remote Port
- Dedicated Dante and Ethernet ports
Control and Monitoring
- Embedded web server provides remote metering, diagnostics and configurable ARC-WEB browser control
- Extensive control options via Symetrix SymVue for Windows, T Series Touchscreens, Control Server, ARC remotes, W Series remotes, ARC-WEB, TCP/UDP
System Display

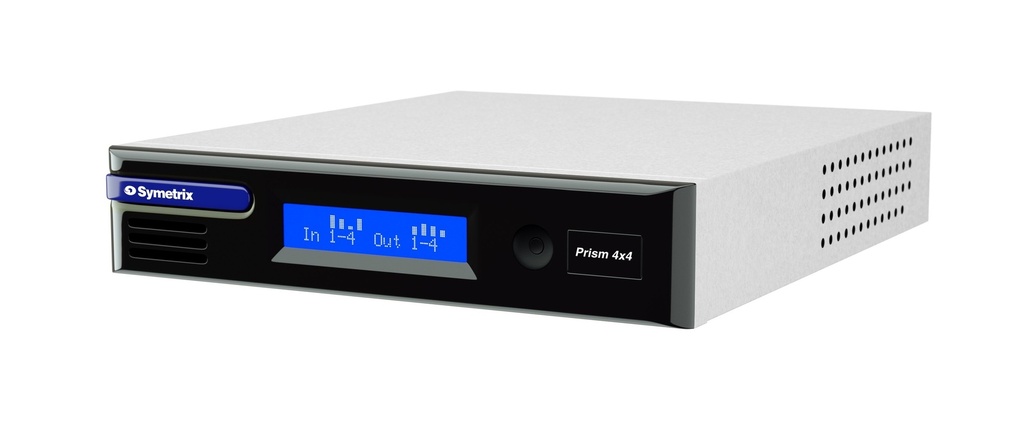

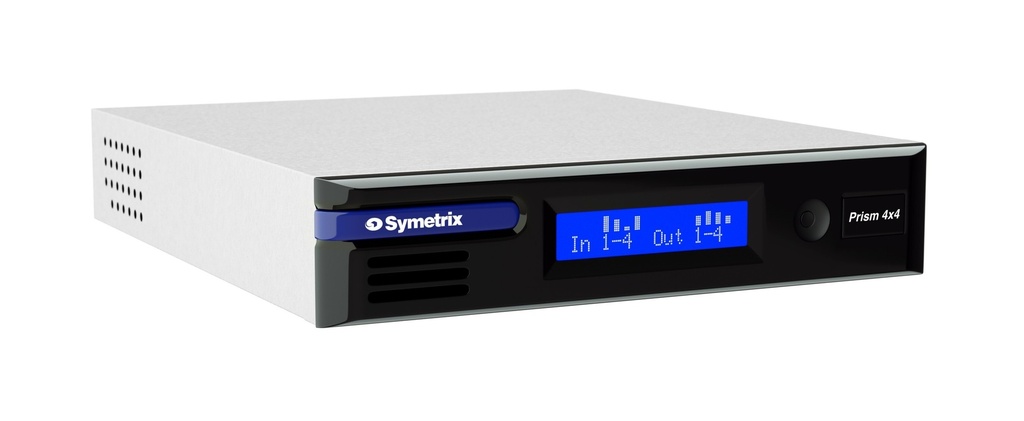

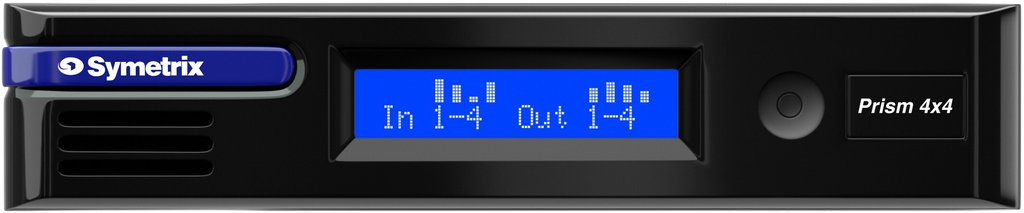

- Front panel system LCD displays
Key features
- Prism comes in 4×4, 8×8, 12×12, and 16×16 models.
- Optional 64×64 Dante module
- System expansion with xIO expansion modules.
- Embedded web server for remote metering, diagnostics, and configurable ARC-WEB browser-based control
- Extensive control connectivity with Symetrix components and TCP/UDP
- Third-party control via Intelligent Modules with Lua scripting
Specifications
| Analog Control Inputs | 0-3.3 VDC |
| ARC Cable | Standard CAT5, distance dependent upon load and number of devices. 8 Watts maximum power available. |
| Channel Separation (A/D/A) | > 110 dB @ 1 kHz, +24 dBu |
| Dante Cable | Standard CAT6, maximum device-to-device length = 100 meters |
| Delay Memory | 174 mono seconds |
| Dynamic Range (A/D/A) | > 113 dB, A-weighted |
| Ethernet Cable | Standard CAT5e or CAT6, maximum device-to-device length = 100 meters |
| Frequency Response (A/D/A) | 20 Hz – 20 kHz, ± 0.5 dB |
| Latency (A/D/A) | 1.04 mS, inputs routed to outputs |
| Logic Output Maximum External Power Supply / Current Sinking | 50 mA |
| Logic Output Maximum External Power Supply Voltage | 24 VDC |
| Logic Output Maximum Output Current | 10 mA |
| Logic Outputs | Low (0V) when active, pulled high (5V) when inactive |
| Maximum Devices per System | 128 units per Site File |
| Maximum Stored Presets | 1,000 |
| Processor | 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD |
| Raw Processing Capacity | 400 MIPS, 1.6 GFLOPS |
| Recommended External Control Potentiometer | 10k Ohm, linear |
| RS-485 Serial I/O | 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port |
| Sampling Rate | 48 kHz |
| THD + Noise | < 95 dB (22.4 kHz BW, un-weighted); 1 kHz @ +15 dBu with 0 dB gain |
| Analog A to D latency | 0.28 mS |
| Analog Input Connectors | 3.81 mm terminal blocks |
| Analog Input Dynamic Range | > 113 dB, A-weighted |
| Analog Input Impedance | 8k Ohms balanced, 4k Ohms unbalanced |
| Analog Input Maximum Level | +23 dBu |
| Analog Input THD + Noise | < -100 dB; 22.4 kHz BW, unweighted; 1 kHz @ +15 dBu with 0 dB gain. Course gain is set to +4 dBu. |
| Analog Mic Pre-amp EIN | < -125dB with 150 ohm source impedance. 22.4 kHz BW |
| Analog Mic Pre-amp Gain | 0, 12, 24, 44 or 54 dB switchable with ± 24 dB trim |
| Analog Output Connectors | 3.81 mm terminal blocks |
| Analog Output D to A latency | 0.60 mS |
| Analog Output Dynamic Range | > 117 dB, A-weighted |
| Analog Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced |
| Analog Output Level Maximum | +24 dBu (+22.8 dBu into a 2k Ohm minimum load) |
| Analog Output THD + Noise | < -97 dB; 22.4 kHz BW, unweighted; 1 kHz, 0 dB gain +8dBu output |
| Analog Phantom Power (per input) | +48 VDC, 10 mA maximum |
| CMRR | > 79 dB @ 1 kHz, unity gain |
| Nominal Analog Input Level | +4 dBu |
| Nominal Analog Output Level | +4 dBu with 20 dB of headroom |
| Number of Analog Inputs | Four (4) switchable balanced mic or line level |
| Number of Analog Outputs | Four (4) balanced line level |
| Certifications and Compliance | IEC 62368-1, EN 55032, EN 55103-2, FCC Part 15, ICES-003, UKCA, EAC, RoHS (Health/Environmental) |
| Electrical | PoE+ IEEE 802.3at Class 4, 25.5 Watts maximum. No line voltage switching required. Note: Subject to change when actual power requirements are determined. |
| Shipping Weight | 5.1 lbs. (2.3 kg) |
| Space Required | Half rack unit (WDH: 20.83 cm x 23.83 cm x 4.37 cm / 8.2 in. x 9.38 in. x 1.72 in.) Depth does not include connector allowance. Allow at least 3 inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Ventilation | Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc. |
