DISCONTINUED
This product is no longer part of our range.

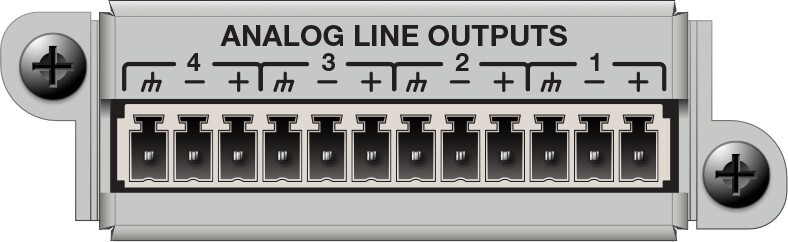

Key features
- Analog line outputs.
- 4 channels per card.
- High output levels for long cable runs. Up to +24 dBu.
- Digital trim. +12dB down to full off.
- Extended dynamic range D/A converters. >117 dB.
- 3.81mm terminal blocks, 12 position plugs with strain relief pull tabs.
- Field swappable by qualified technicians.
Specifications
| Certifications and Compliance | EN 55103-1, EN 55103-2, FCC Part 15, RoHS |
| Shipping Weight | 1 lbs. (0.45 kg) |
| Analog Output Connectors | 3.81 mm terminal blocks |
| Analog Output Dynamic Range | > 117 dB, A-weighted |
| Analog Output Impedance | 300 Ohms balanced, 150 Ohms unbalanced |
| Analog Output Latency | 0.60 mS |
| Analog Output Level Maximum | +24 dBu (+22.8 dBu into a 2k Ohm minimum load) |
| Analog Output THD + Noise | < -95 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain |
| Number of Analog Outputs | Four (4) balanced line level |
