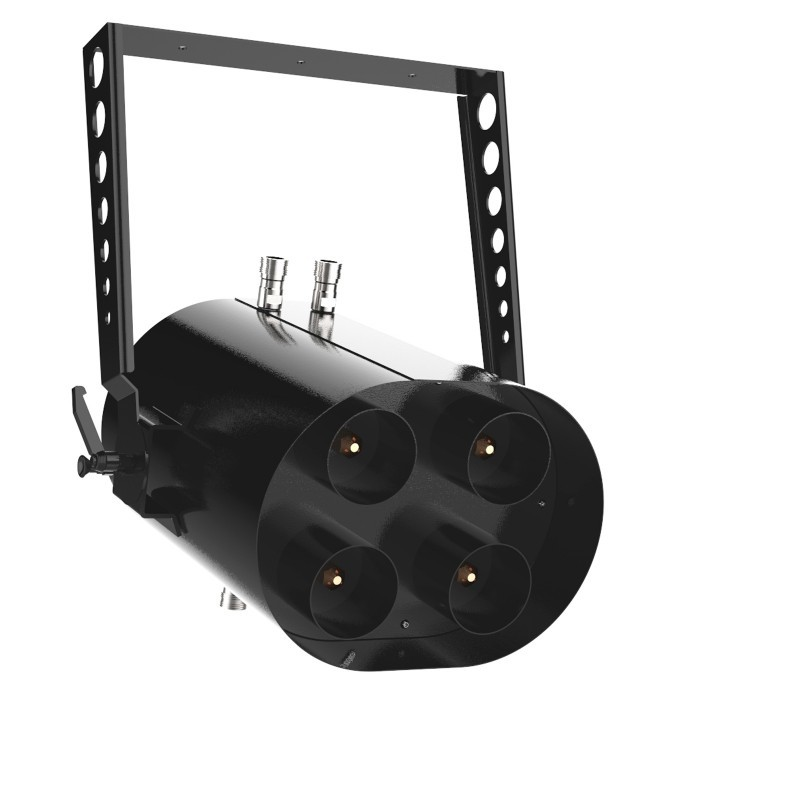

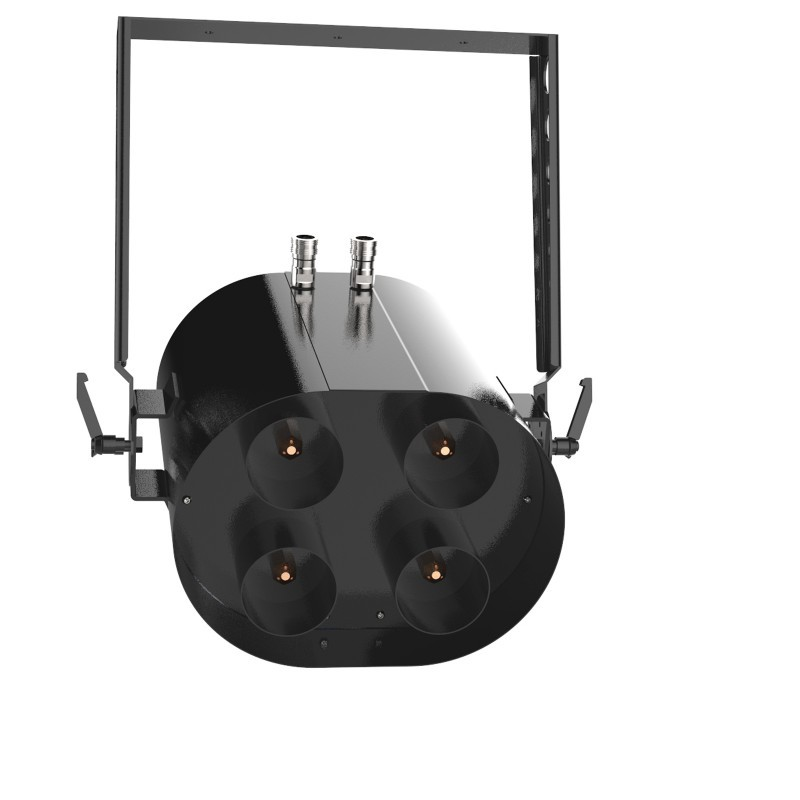

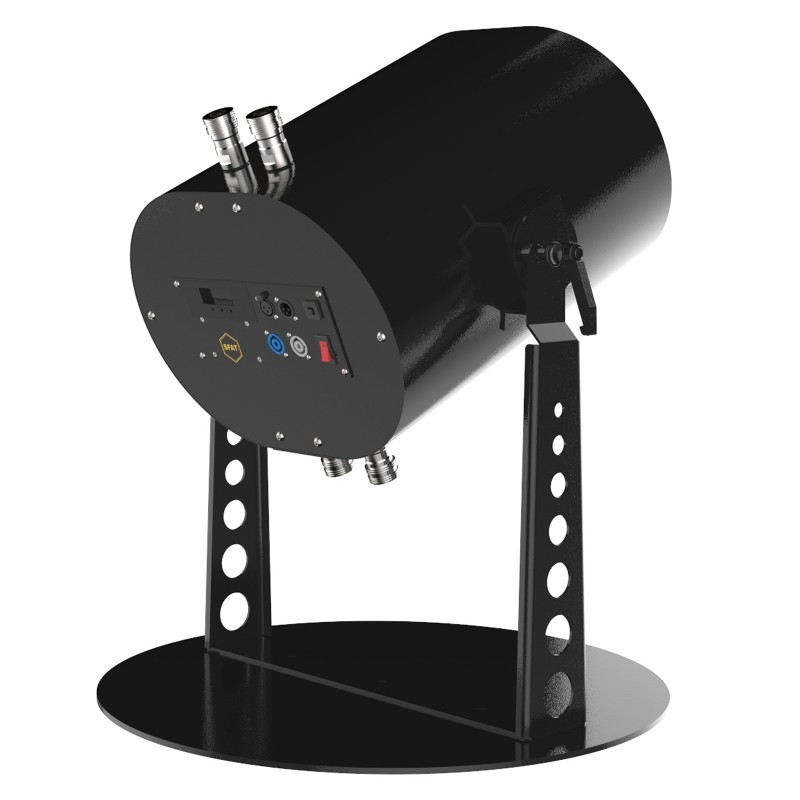

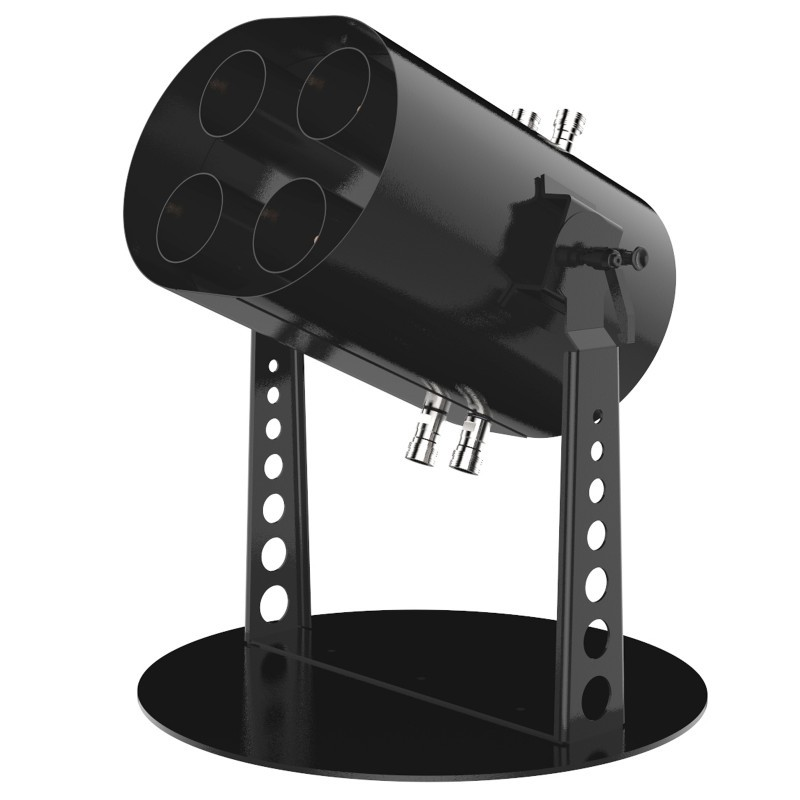

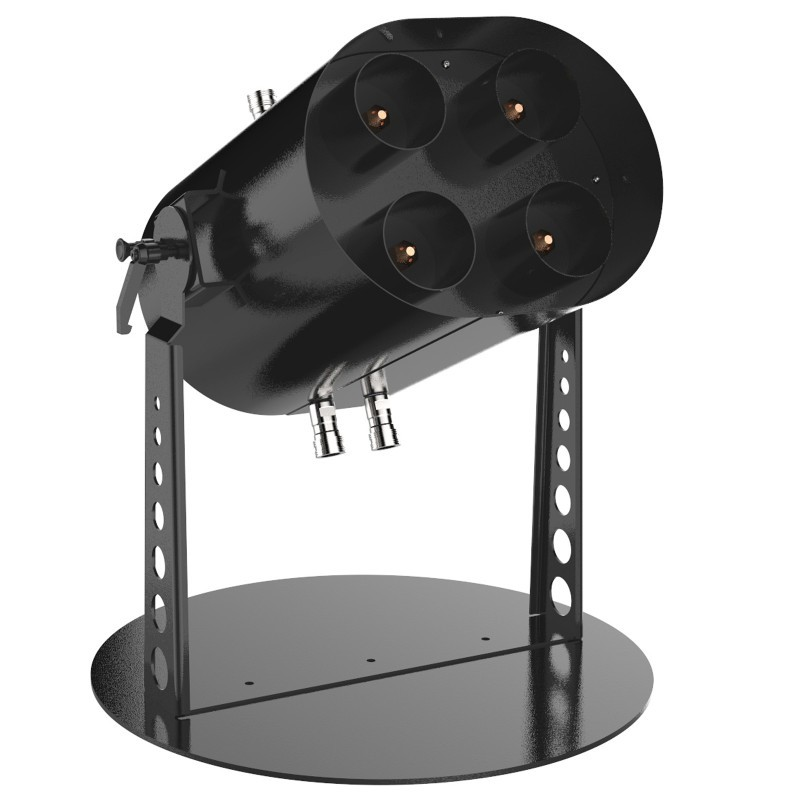

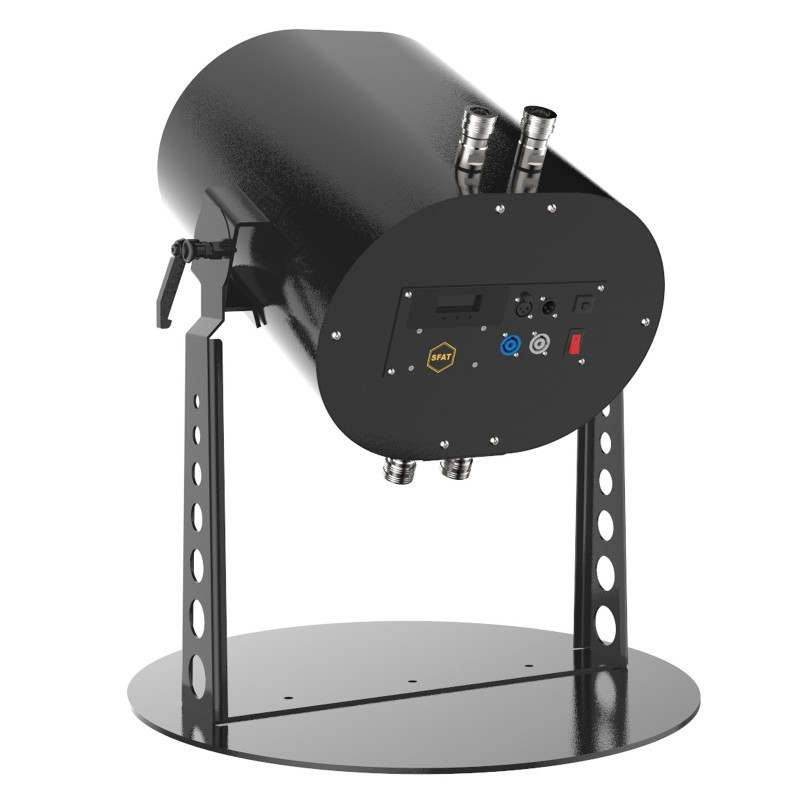

CO2 PROJECTOR - SERIE STAGE FX - CO2 HEAD EFFECT - 4 ENTRIES / 4 NOZZLES
Imposing machine allowing to shoot conical jets of white smoke (co2 gas) that appear and disappear instantaneously. Effect superb, spectacular, powerful and and causing a reaction of surprise by its sound and dynamic side. The Co2 Projector design allows easy installation on the floor or on a structure. The projection angle is adjustable. the head is connected to 4 cylinders of Co2 gas by 4 high pressure hoses equipped with suitable fittings. The power supply is directly in 220V. The DMX control is included. High pressure equipment, it is necessary to respect the basic safety rules and especially those related to the dangerousness of co2 gas. It is imperative to use a Co2 gas level detection system for indoor use. Depending on the degree of humidity, the Jet distances emitted can vary from 10 to 15 m. Total lenght of jet from 10 to 15 M.
Specifications
| Modele | CO2 PROJECTOR |
| Reference | 140CO1081 |
| Voltage | 230V ~ 50Hz Ac |
| Power Requirement | 65W |
| Technology | Cryogenic Solenoid Valve |
| Co2 Entry | 4 Entries |
| Co2 Output | 4 Outputs / 4 nozzles |
| Level Protection | IP42 |
| Power Rocker Switch | 10A |
| Fuse | 2A |
| Operating Mode | On/Off |
| Dmx Control | Dmx Option Available |
| Dimension - Lenght | 453,00 mm |
| Dimension - Width | 593,87 mm |
| Dimension - Height | 696,60 mm |
| Weight | 18,5 Kg |
| Co2 Projection | Up To 10m |
| Gas Consumption | 4Kg / sec |
| Operating Temperature | -15 to 65 ° C |
| Operating Humidity | 20% to 90 % ( non condensing ) |
