Ruby is a compact beam light that harnesses all the power of its Osram Sirius 132 W lamp into a tight, bright and sharp 2° beam. Designed to cut through even the brightest stage, the Ruby's clean and concentrated beam competes with much more powerful beam lights.
Ruby is a compact beam light that harnesses all the power of its Osram Sirius 132 W lamp into a tight, bright and sharp 2° beam. Designed to cut through even the brightest stage, the Ruby's clean and concentrated beam competes with much more powerful beam lights.
Features:14 position colour wheel including CTC filters
Compact and lightweight design for creative freedom and easy rigging
Extensive effect options: frost, fixed gobo wheel and dual indexing with rotating prisms
LIGHT SOURCE
- Source:132WS Osram Sirius HRI
- Source CCT:9.200K
- Luminous flux:5'150
- Lux:393'000lx@5 m full
- CRI:60
- Source life expectancy:6.000 h
OPTICS
- Beam angle:2°
- Lens diameter:98mm
- Lens type:high-quality glass lens optics
- Focus:motorised 8-bit
COLOUR SYSTEM
- CCT:on wheel 2.500 K and 3.200 K + CTB
- Colour wheel:14colour filters
DYNAMIC EFFECTS
- Circular prism:8-fwith bi-directional rotation, indexing
- Linear prism:6-fwith bi-directional rotation, indexing
- Frost:to soften the beam edge
GOBOS
- Fixed gobos:17fixed gobos + open
CONTROL
- Supported Protocols:DMX512, RDM
- DMX channels:11 / 13 / 14 / 17ch
- RDM:for remote addressing and parameter configuration

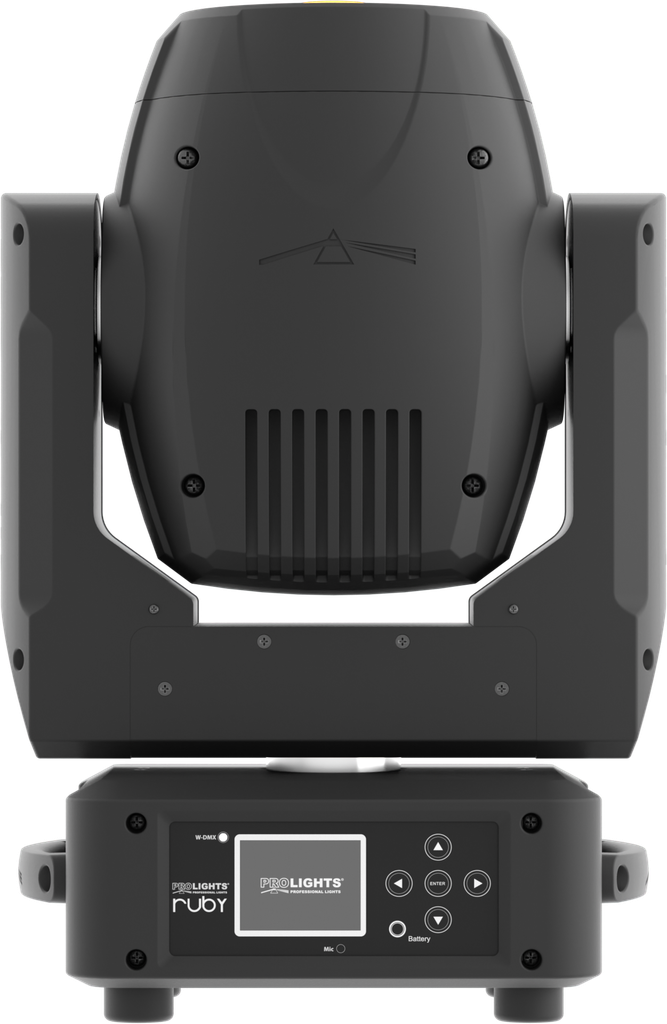

- Display:LCD high resolution colour display
- Hibernation:power safe mode when lost DMX
MOVEMENT
- Pan:630° - 540°- 8/16-bit resolution
- Tilt:265°- 8/16-bit resolution
- Position feedback:automatic repositioning after external movement
ELECTRONICS
- Dimmer:linear 0 - 100% mechanical dimmer
- Strobe / shutter:1 - 25flash(s), mechanical
- Display battery:included, self-charging battery backup
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included)

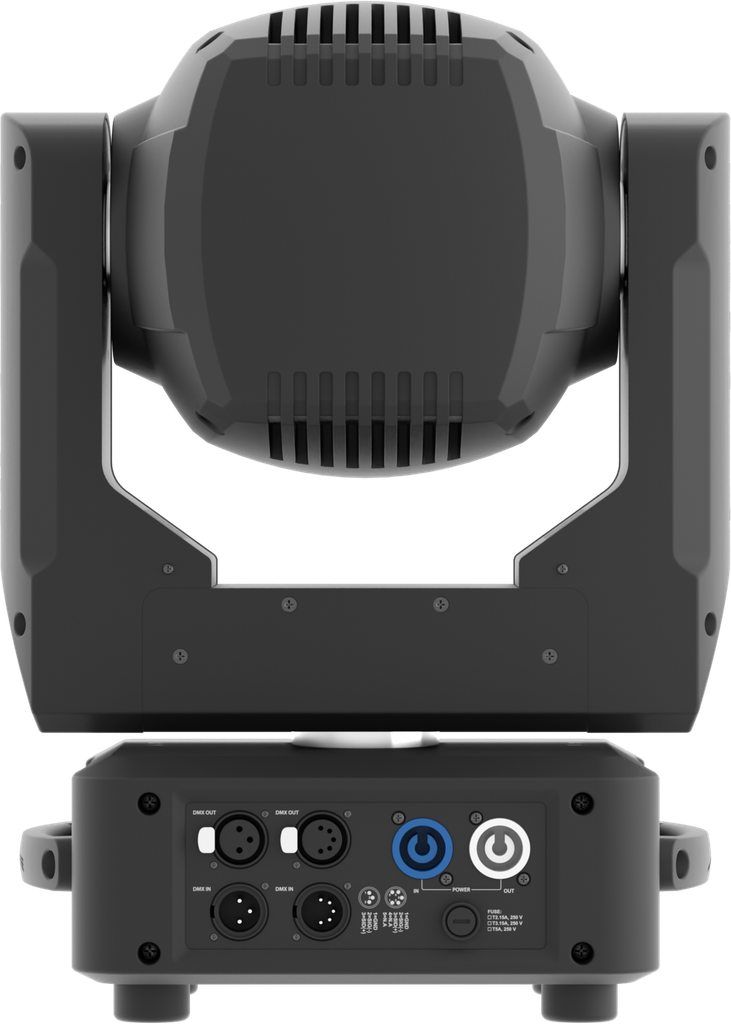

CONNECTIONS
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:Amphenol XLR 3p + 5p IN/OUT connectors
- Wireless Connection:optional W-DMX receiver
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):212W
- Output (at 230V):8units on a single power line
- Max power consumption (120V):212W
- Standby power:64.3W
PHYSICAL
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Aluminium structure with high-resistance polycarbonate cover

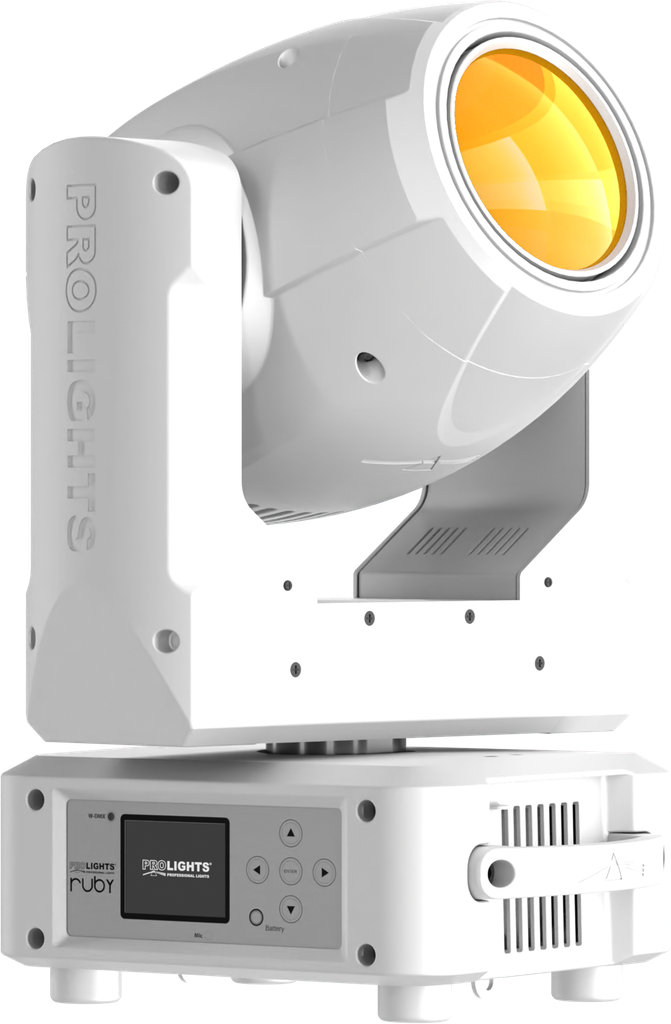

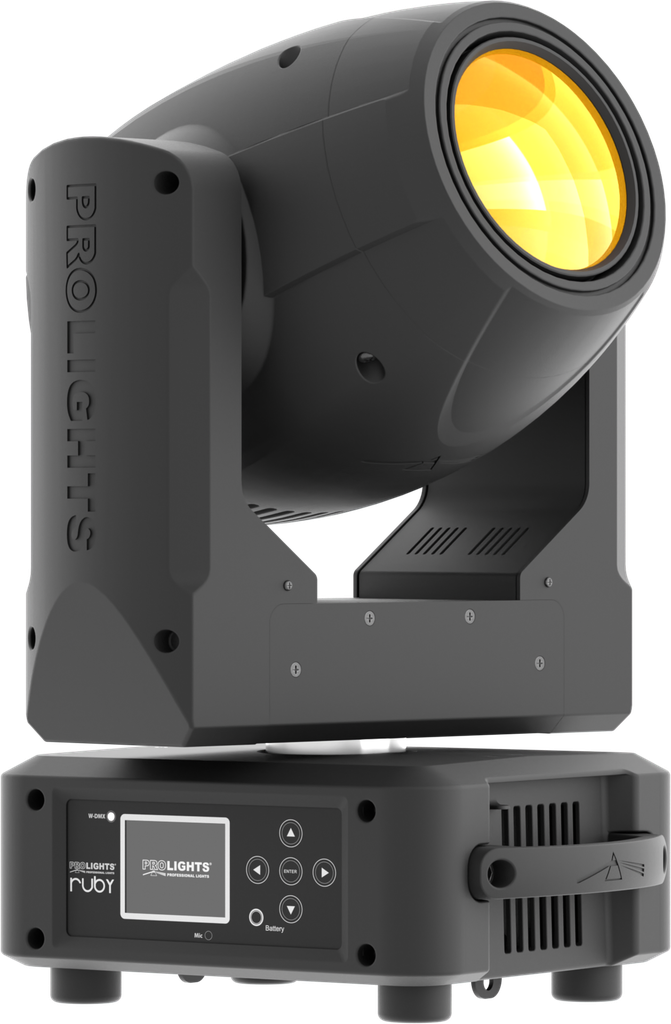

- Finish:black or white finishing
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):294x437x200mm
- Weight:10,5kg
INSTALLATION
- Suspension and fixing:any position with quick-lock omega brackets
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
