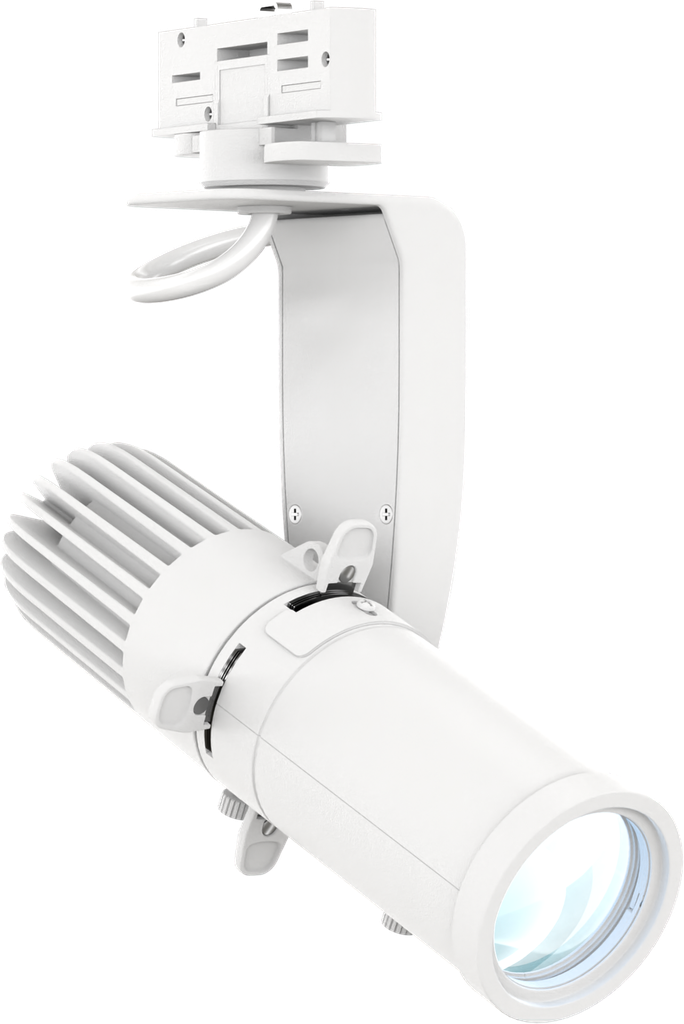

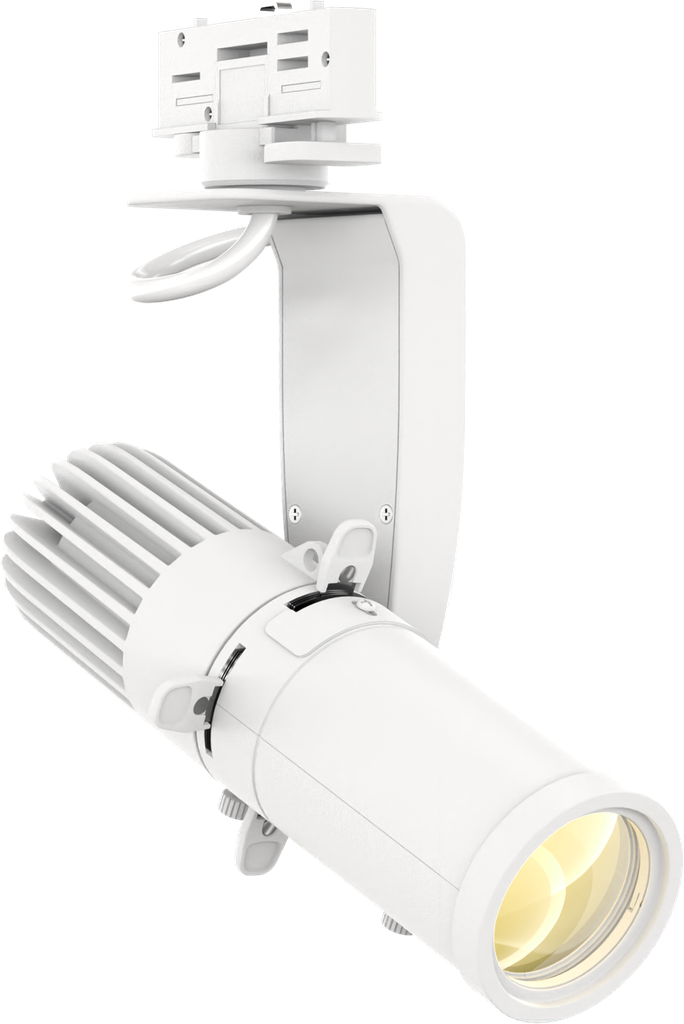

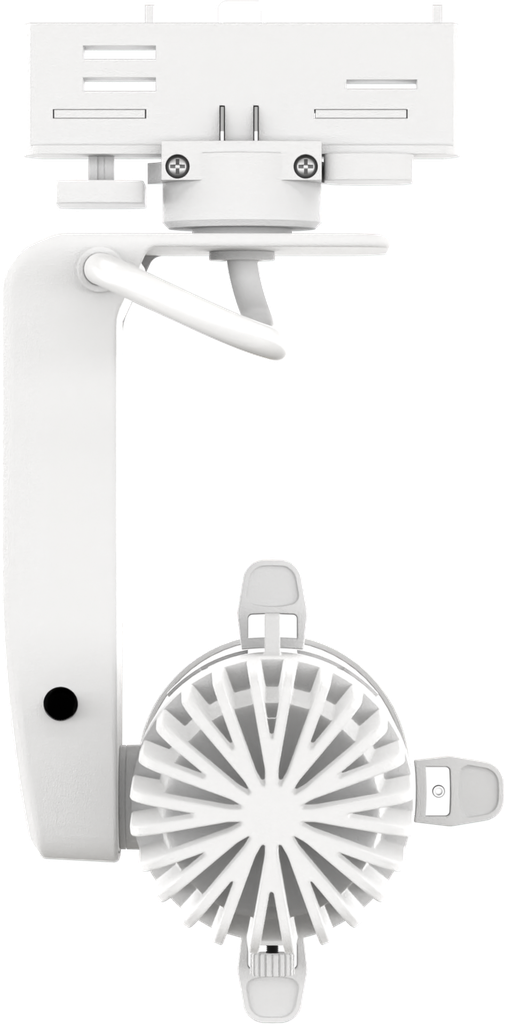

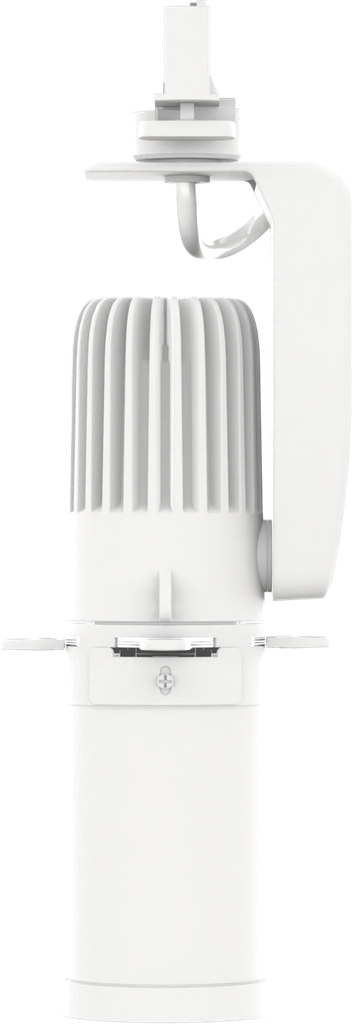

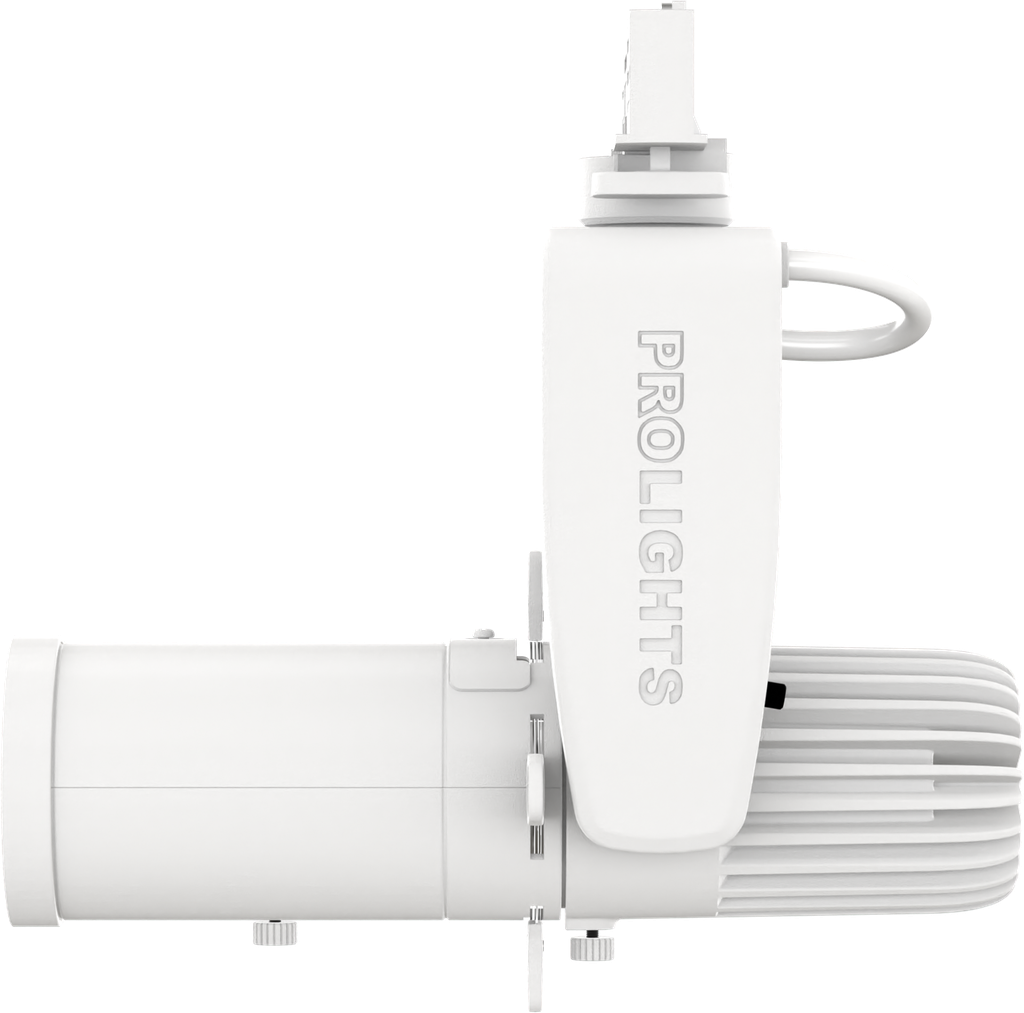

EclMiniProfile TR is a 28W CREE LED new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, due to the manual knob, has precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.
EclMiniProfile TR is a 28W CREE LED new concept of mini LED ellipsoidal. Demonstrating a stylish design, ease of use, due to the manual knob, has precise optics, sharp image projection and bright even projection - all in a compact housing that is just a quarter of the size of the traditional ellipsoidal fixtures. EclMiniProfile is designed for applications in commercial spaces, museums, restaurants, churches, educational theatres and any other installation where size is an important factor. Available in tungsten and daylight versions, EclMiniProfile performs even field projection with high CRI at any level of brightness and linear dimmer over the entire curve.
Features:28W White LED source available in Tungsten and Daylight variants
19° / 26° / 36° / 50° optional lenses
Local knob dimming and removable track adapters for easy implementation
- Source:28WWhite CREE LED
- Source CCT:(TU) 3.000 K - (DY) 5.700K
- Luminous flux:(TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552@Full
- Luminous flux:(DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
- Lux:(TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx@5 m full
- Lux:(DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx@5 m full
- CRI:(TU) >92; (DY) >80
- TLCI:(TU) >90; (DY) >68
- TM30 Rf:(TU) >90; (DY) >79
- TM30 Rg:(TU) >97; (DY) >97
- Source life expectancy:> 70.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
- Lens type:high-quality glass lens optics
- Fixed gobos:gobo holder included in optics
- Gobo size:E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
- Dimmer:linear 0 - 100%, manual knob dimmer
- Power connection:track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):22W
- Output (at 230V):43units on a single power line
- Power factor:>0,40
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy aluminium profile
- Finish:white (RAL 9003)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):112x210x226mm
- Weight:1kg
- Compliance:CE, UKCA, RCM
