Prolights ECLPENDANTJRVWWH

100W Variable White LED source innovative pendant light, white

QUOTE ONLY

Price on request

Add to wishlist

View on Manufacturer Website

SKU: ECLPENDANTJRVWWH

CATEGORY: Pendant

BRAND: Prolights

WARRANTY 2 years

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

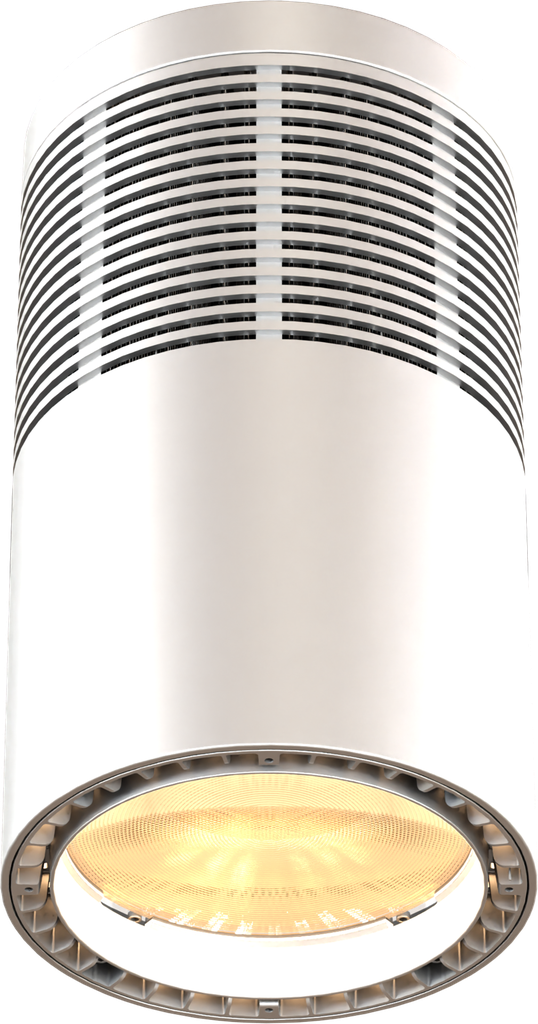

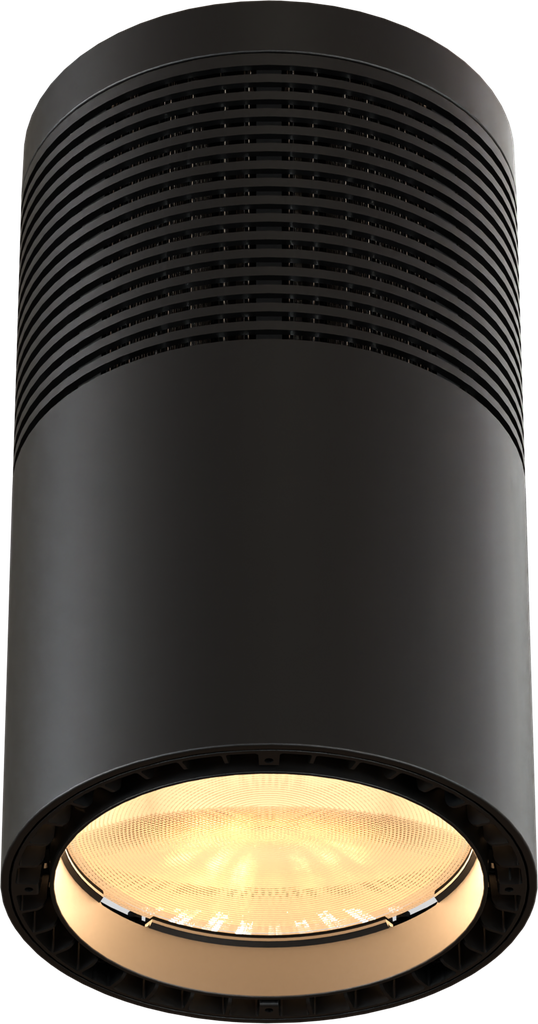

The EclPendant JrVW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.

This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.

The EclPendant JrVW has a 100-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.

Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).

The EclPendant JrVW was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant JrVW series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.

The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.

The EclPendant JrVW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

100W LED source power, Variable White with passive cooling

AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)

Extensive mounting option possibilities, optics and accessories are all easily changeable

The EclPendant JrVW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.

This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.

The EclPendant JrVW has a 100-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.

Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).

The EclPendant JrVW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

NOTE: the hanging bracket does not come with the product

Features:
100W LED source power, Variable White with passive cooling
AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
Extensive mounting option possibilities, optics and accessories are all easily changeable

LIGHT SOURCE

Source:

100
W

Variable White LED
Source CCT:

2'700K - 6'500K
K
Luminous flux:

(2'700K) 6'092 lm; (6'500K) 8'287 lm; (FULL) 7'819
Lux:

(2'700K) 1'104 lx; (6'500K) 1'468 lx; (FULL) 1'388
lx

@5 m
CRI:

96,5 @2'700K; 95,4 @6'500K; 96,2 @ full
R9:

93,9 @2'700K; 86,5 @6'500K; 92,3 @ full
TLCI:

96 @2'700K; 96 @6'500K; 97 @ full
TM30 Rf:

95,3 @2'700K; 90,5 @6'500K; 92,9 @ full
TM30 Rg:

103,3 @2'700K; 100,5 @6'500K; 103,6 @ full
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

24
°
Field angle:

44
°
Lens diameter:

122
mm
Lens type:

fresnel lens
Other:

see available accessories

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

linear CCT control
Colour wheel:

built-in white presets
Macros:

several pre-built macros with adjustable speed

DYNAMIC EFFECTS

Static mode:

selection of static dimmer and color temperature
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DALI Type8,

DMX512, RDM, CRMX
DMX channels:

1 / 2 / 5 / 9 / 13
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Other:

16bit control of dimmer and colour

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

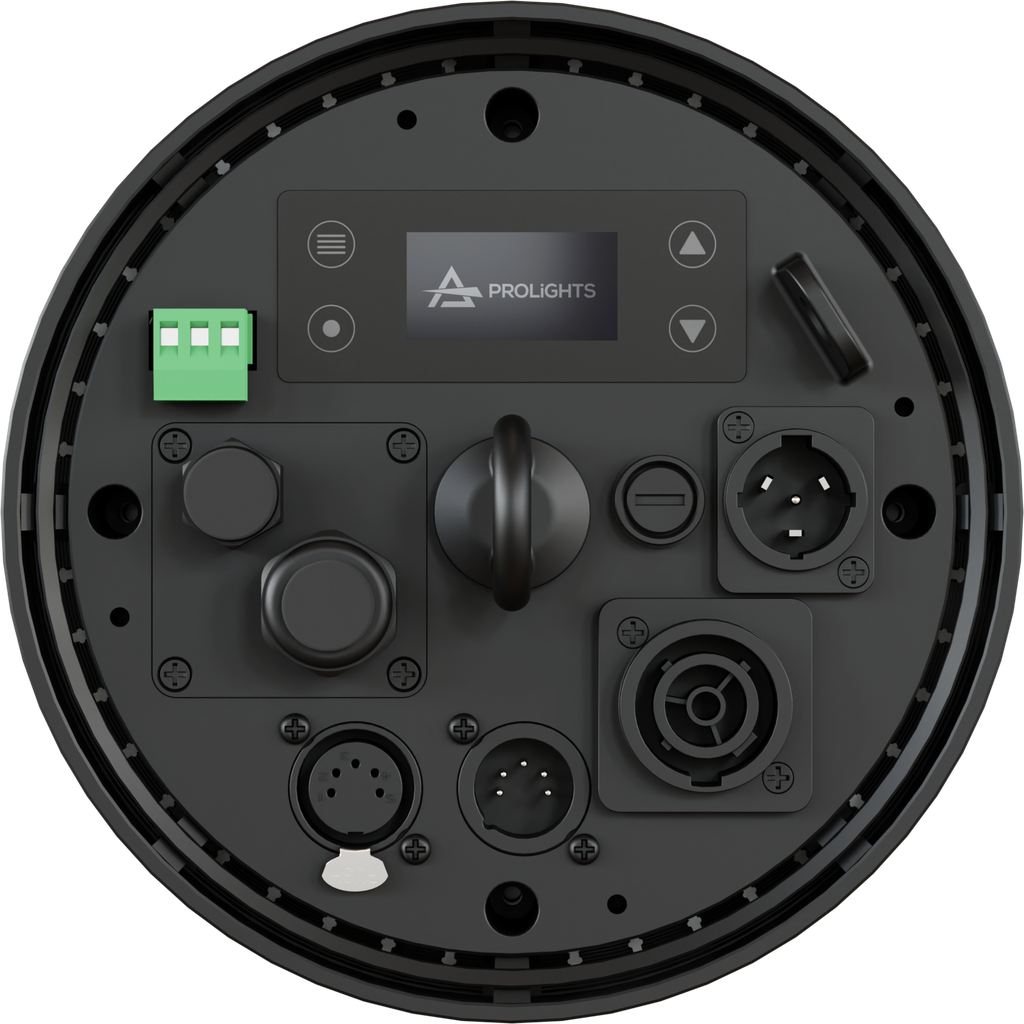

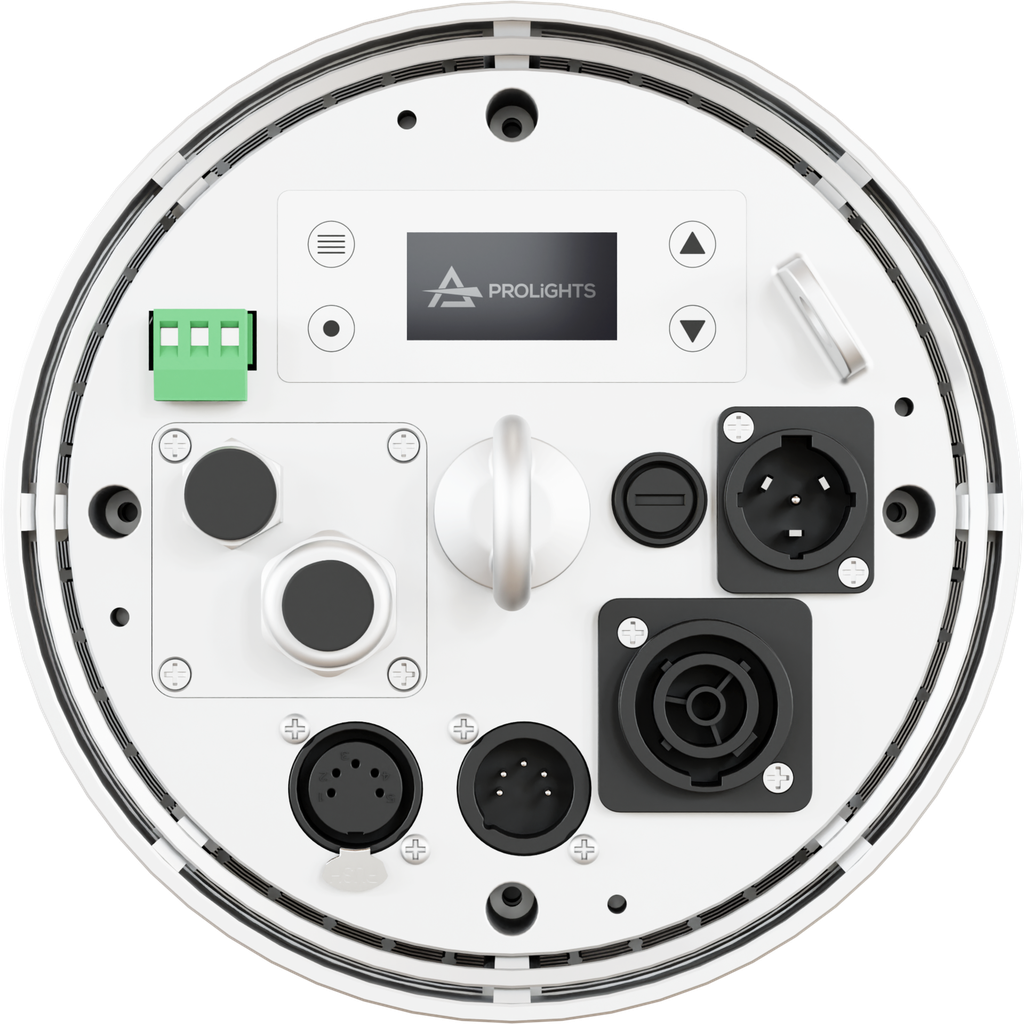

CONNECTIONS

Power connection:

screw terminal block,

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

screw terminal block,

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
Low Voltage DC connector:

DC 48V through screw terminal block
