Prolights ECLPARDOTVW

20W Variable White LED pinspot, 5° beam angle

QUOTE ONLY

Price on request

Add to wishlist

View on Manufacturer Website

SKU: ECLPARDOTVW

CATEGORY: Pars & Washes

BRAND: Prolights

WARRANTY 2 years

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

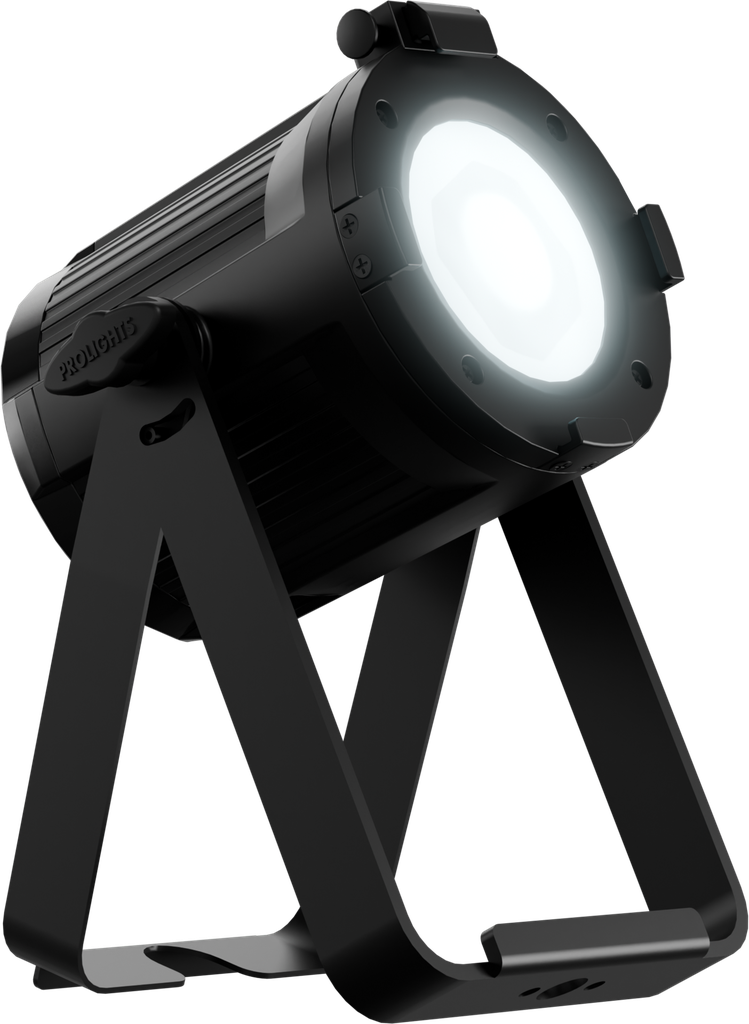

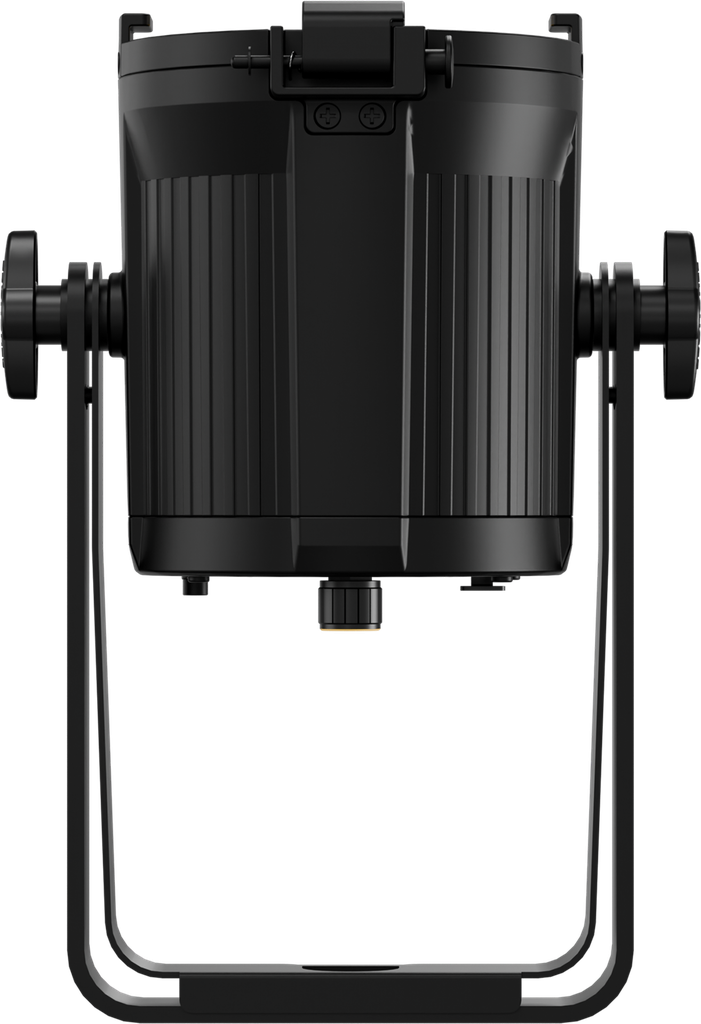

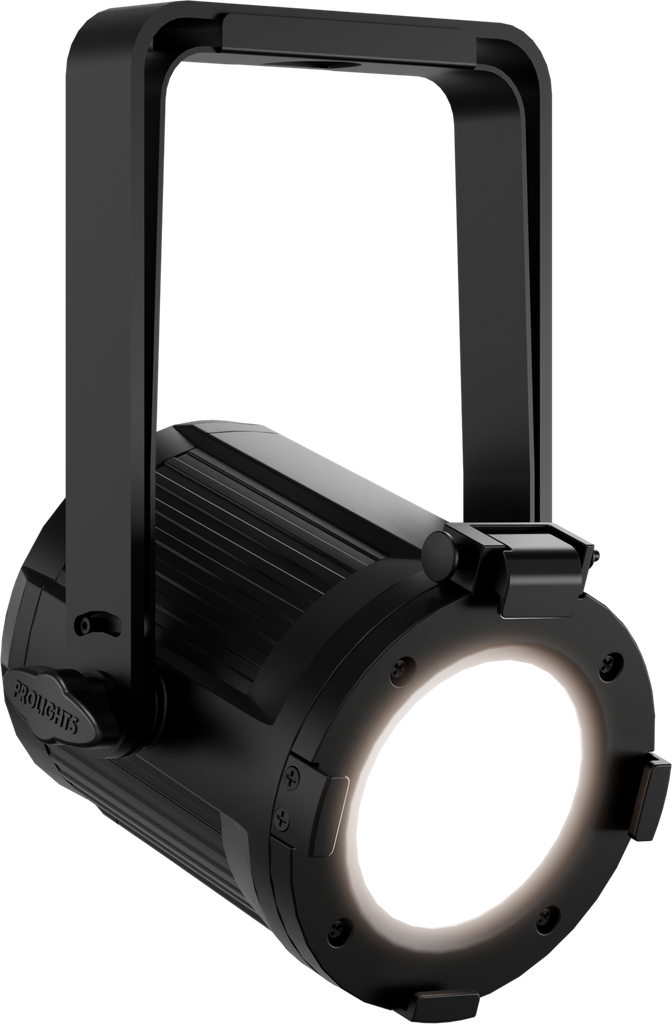

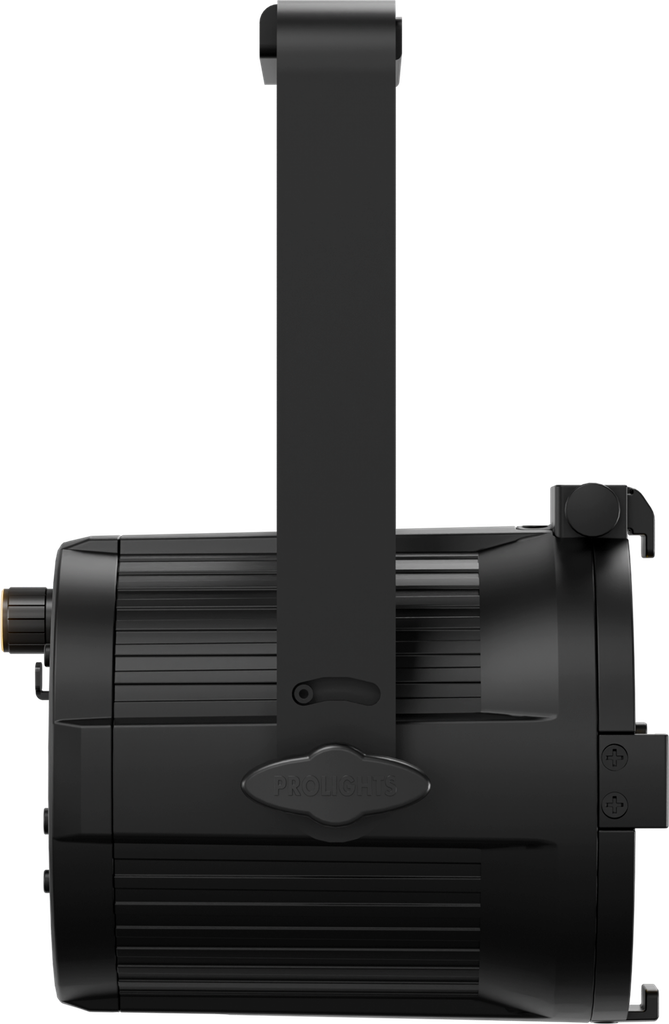

EclPar DotVW is an ultra-compact, fan-free pinspot featuring a larger front lens and enhanced output. It delivers a bright, narrow projection with smooth white mixing and high quality white reproduction.

A 20W Variable White LED paired with a 60 mm lens produces a halo-free 5° beam, staying tight and bright even over long throws ideal for highlights, accents, scenic elements, set pieces, and discreet stage lighting.

EclPar DotVW combines a Variable White LED source with precise CCT control, delivering consistent behaviour and high-fidelity whites with excellent colour rendering.

The fixture is passively cooled and completely silent. With a weight of only 1.2 kg and an ultra-compact form factor, it can be placed virtually anywhere. On-board DMX (XLR) in/out and power in/out connections make installation fast and enable easy daisy-chaining. The integrated push encoder also allows intuitive standalone operation without a control signal, ensuring quick setup and ease of use.

20 W Variable White LED, 2,800 K - 6,500 K with high CRI

Tight 5° beam with 60 mm lens, halo-free projection

Advanced CCT control and high-fidelity white reproduction

Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring

EclPar DotVW combines a Variable White LED source with precise CCT control, delivering consistent behaviour and high-fidelity whites with excellent colour rendering.

Features:
20 W Variable White LED, 2,800 K - 6,500 K with high CRI
Tight 5° beam with 60 mm lens, halo-free projection
Advanced CCT control and high-fidelity white reproduction
Fan-free, 1.2 kg, with chassis-mounted DMX in/out and power in/out for easy daisy-chain wiring

LIGHT SOURCE

Source:

1 x 20
W

Warm White + Cold White LEDs
Source CCT:

K

dedicated variable CCT channel (2800-6500 K)
Luminous flux:

844 lm

@Full
Luminous flux:

753 lm @3.200 K; 889 lm

@5.600 K
Lux:

3.702
lx

@5 m full
Lux:

3.349lx @5 m 3.200K; 3.811
lx

@5 m 5.600K
CRI:

96,7 @3.200K; 96,1 @5.600K
R9:

91,7 @3.200K; 98,6 @5.600K
TLCI:

95 @3.200K; 99 @5.600K
TM30 Rf:

93,6 @3.200K; 94,1 @5.600K
TM30 Rg:

104,4 @3.200K; 102,9 @5.600K
Source life expectancy:

> 90.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Beam angle:

4,6
°
Field angle:

7,7
°
Lens diameter:

60
mm

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

CCT control through dedicated DMX channel
Macros:

built-in white presets

DYNAMIC EFFECTS

Static mode:

selection of static dimmer, colors and color temperature
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM
DMX channels:

1 / 2 / 3 / 4 / 9
ch
RDM:

for remote addressing and parameter configuration
Display:

LED display user interface
Stand Alone:

push encoder
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1-30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

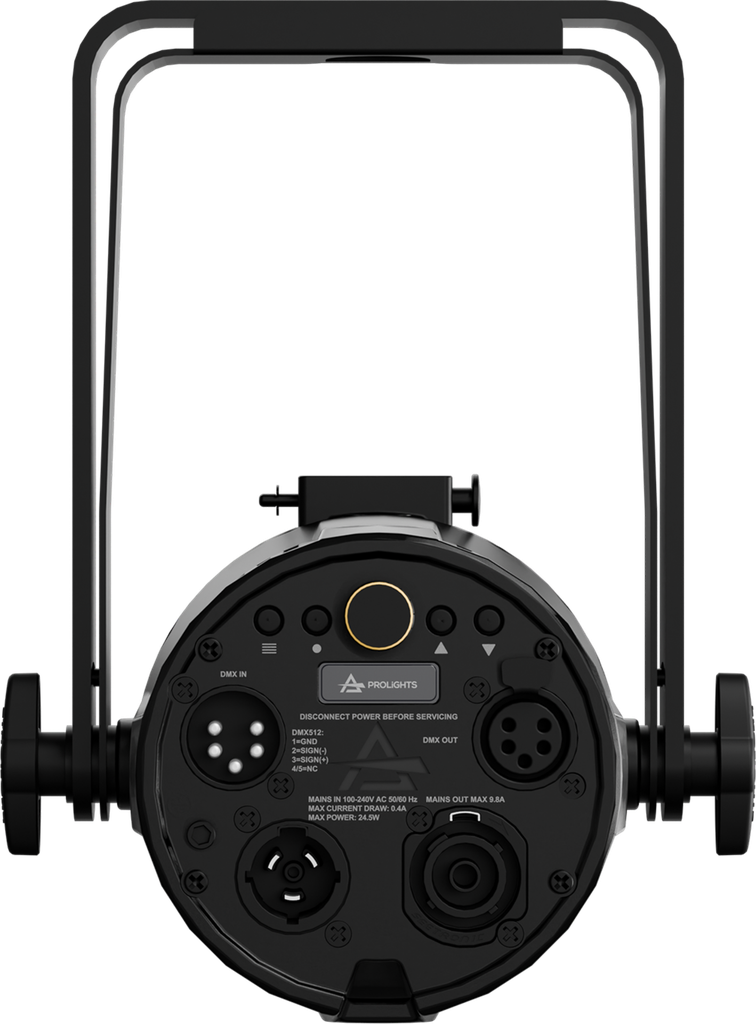

CONNECTIONS

Power connection:

Seetronic powerCON IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption (230V):

25
W
Standby power:

1 W
Power factor:

> 0,9

PHYSICAL

IP rating:

IP20
Cooling:

fan-free with natural convection
Housing:

Sturdy die-cast aluminium body
Finish:

black
Operating temperature:

Ta

-10 to +45 °C (+14 to +113 °F)
Dimensions (WxHxD):

165x221x144
mm
Weight:

1,2
kg

INSTALLATION

Suspension and fixing:

double hanging bracket suitable for safe hanging and for floor positioning
Other:

Front mount holder for accessories - see available accessories
