The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire, with a surprisingly powerful 1,800 lumen output.
This compact-sized fixture has the same colour technology as the other soft lights, producing rich colours, high quality white tones, colour gel matching, and on-board pixel cinema effects.
The EclNanoPanel TWC has 3 precision encoder, with multiple Stand Alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
Each of the 4 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
EclNanoPanel brings ultimate color control: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, Source emulation and industry-standard Color gels.
There are multiple, magnetized beam-shaping optical accessories available, including barndoors, diffusers, etc, and on-board threads for easy mounting on stands or camera rigs.
The fixture is controlled from its on-board user interface, or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).

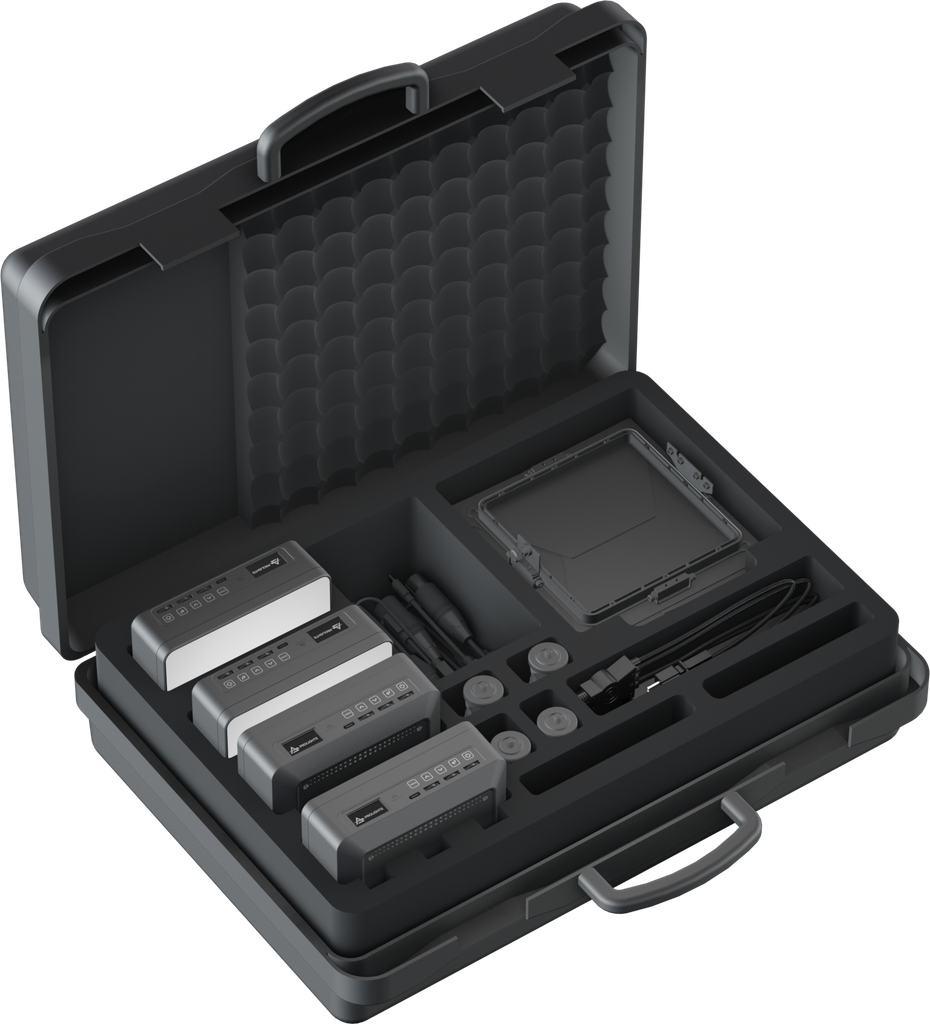

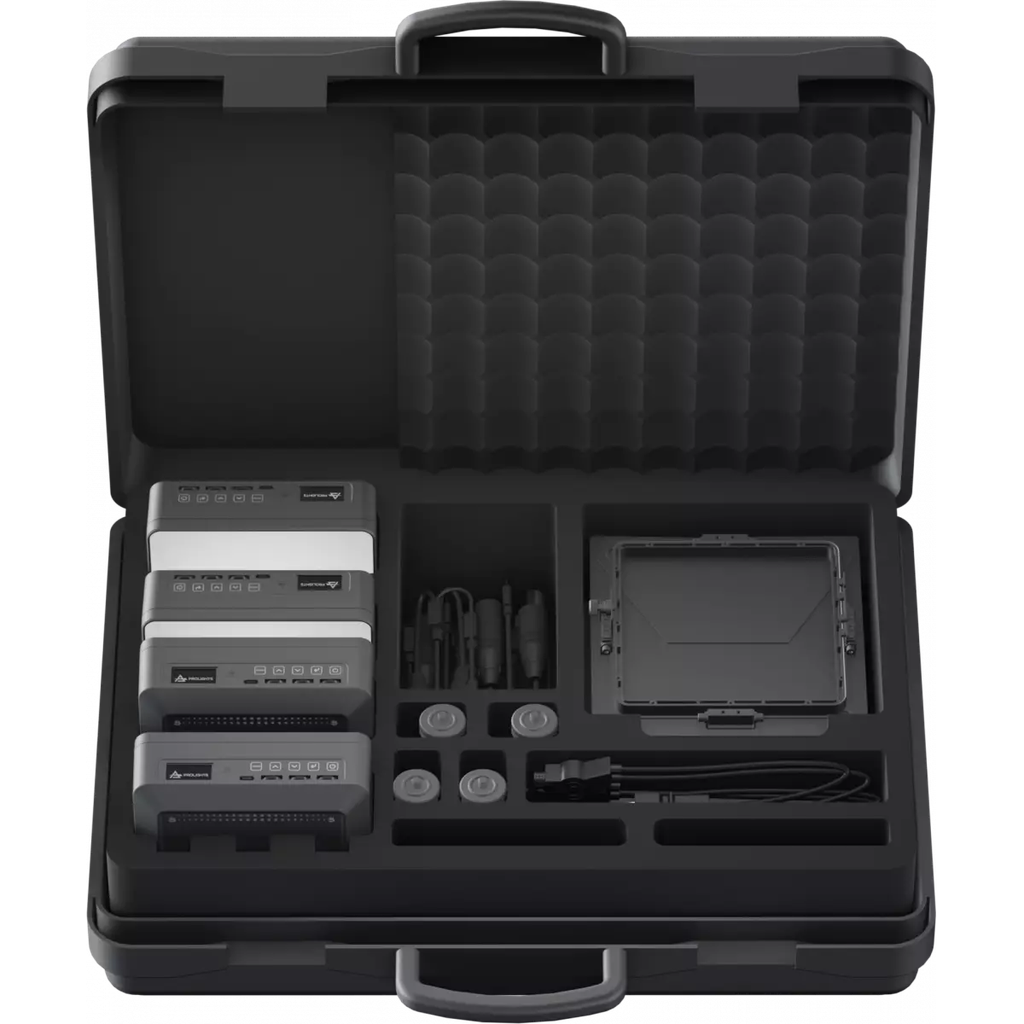

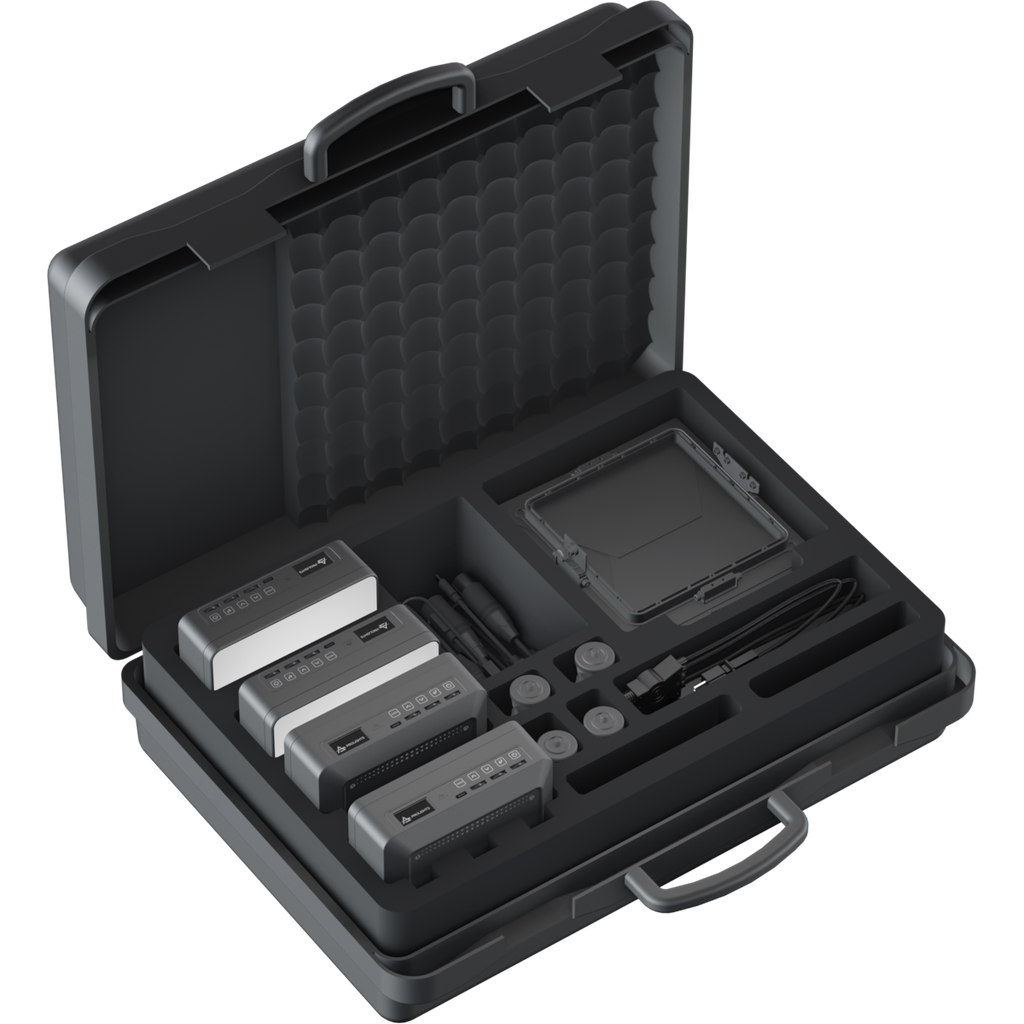

The pack includes:

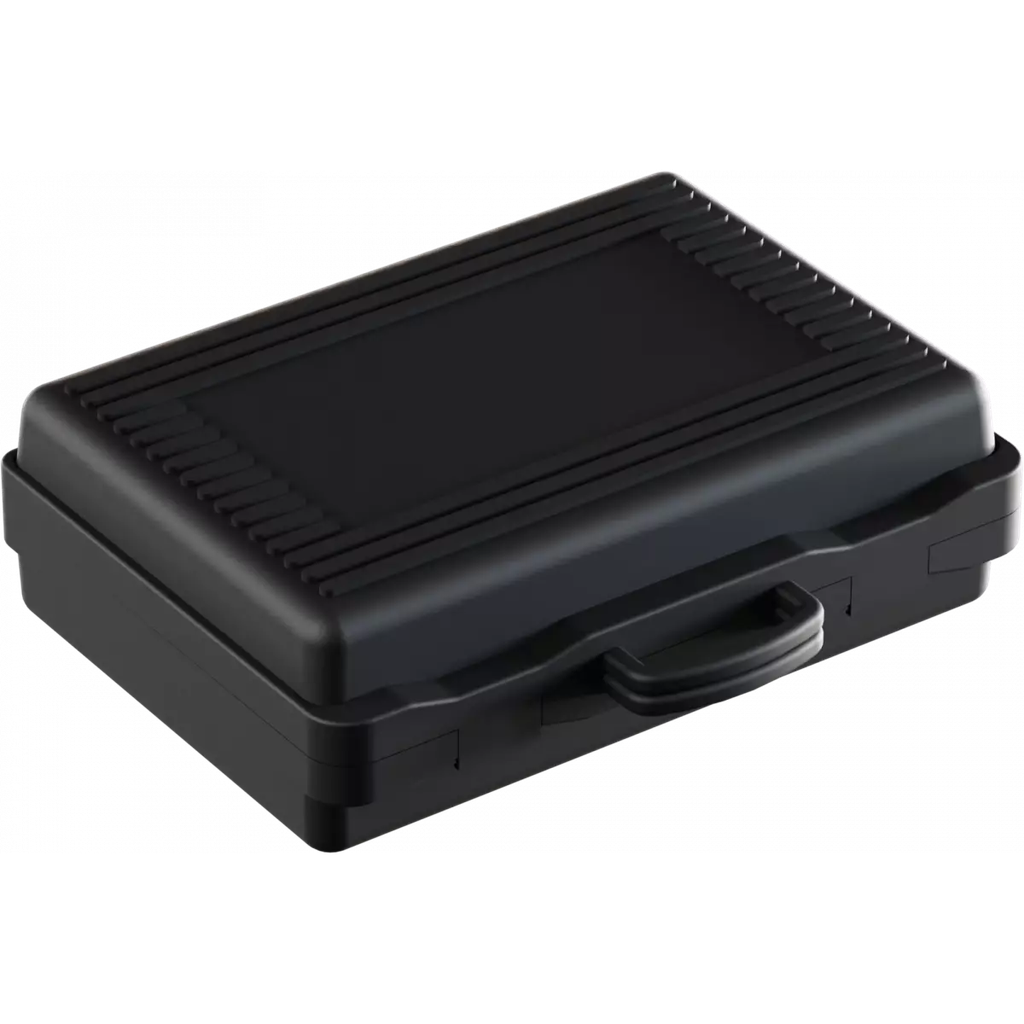

1 x ABS case
4 x ECLNANOPANELTWC (includes: ENPTWCFILTERLD on-board)
1 x 4-way charger
4 x position articulated joint (ENPTWCPAJ)
4 x barndoors (ENPTWCBD)
4 x Y Cable from XLR 5P male, XLR 5P female and USB-C female to USB-C male (ENPTWCYCABLE)
1 x User Manual
The EclNanoPanel TWC is the smallest member of the successful EclPanel range, containing all the outstanding features of the larger format soft lights in a compact-sized, battery-operated luminaire, with a surprisingly powerful 1,800 lumen output.
This compact-sized fixture has the same colour technology as the other soft lights, producing rich colours, high quality white tones, colour gel matching, and on-board pixel cinema effects.
The EclNanoPanel TWC has 3 precision encoder, with multiple Stand Alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
Each of the 4 sections is controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
EclNanoPanel brings ultimate color control: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, Source emulation and industry-standard Color gels.
There are multiple, magnetized beam-shaping optical accessories available, including barndoors, diffusers, etc, and on-board threads for easy mounting on stands or camera rigs.
The fixture is controlled from its on-board user interface, or via the built-in Wireless DMX/RDM transceiver (CRMX and W-DMX).
The pack includes:
1 x ABS case
4 x ECLNANOPANELTWC (includes: ENPTWCFILTERLD on-board)
1 x 4-way charger
4 x position articulated joint (ENPTWCPAJ)
4 x barndoors (ENPTWCBD)
4 x Y Cable from XLR 5P male, XLR 5P female and USB-C female to USB-C male (ENPTWCYCABLE)
1 x User Manual
Compact-sized soft light, with wireless control (CRMX and W-DMX) and battery-powered
30W RGB + Warm White LED source, surprisingly powerful 1,800 lumen output.
Magnetized beam-shaping optical accessories available
- Source:30WRGB + Warm White LEDs
- Luminous flux:1'829@3.200 K with LD filter
- Lux:690lx@1 m
- CRI:94,6 @3.200 K; 94,9 @5.600 K
- R9:97,1 @3.200 K; 96 @5.600 K
- TLCI:92 @5.600 K
- TM30 Rf:97,7 @3.200 K; 89,3 @5.600 K
- TM30 Rg:102,5 @3.200 K; 102,3 @5.600 K
- Source life expectancy:> 50.000 h
- Beam angle:105°
- Field angle:159°
- Lens type:magnetic light densitydiffusion panel (interchangeable)
- Additional optics:see available accessories
- Colour control:XY, CCT, RGBW, Gel, HSI, Source Emulation, Colour Macros, CTO on colours
- Colour mixing:RGB + Warm White
- CCT:Max CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
- White presets:2,800 K - 10,000K
- Colour wheel:virtual colour wheel with macros
- Control Resolution:16-bit dimmer and color control
- Pixel patterns:pre-programmed pixel macros and cinema lighting effects
- FX generator:4controllable sections
- Static mode:selection of static colour
- Manual mode:manual adjustment of intensity, CT, colour correction from knob
- Auto mode:built-in programs with execution speed adjustment
- Special features:linear crossfade channel from any white to any colour; virtual CTO on colours
- Supported Protocols:DMX512, RDM, CRMX + WDMX
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Stand Alone:selectable mode through 3rotatory knobs
- IR:infrared sensor controlled by remote (included in the pack, not included in single unit)
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 36000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOX1+ENPTWCYCABLE (not included)
- Battery:11.1Vlithium
- Estimated battery life:up to 2 / 6 / 8 / 12 / 18 h (selectable)
- Recharge connection:USB type C
- Recharge time:2,5h (max)
- Battery level indicator:shown on display
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Adaptors:USB type C to XLR connectors
- Low Voltage DC connector:USB type C
- Mains power supply:DC 12V
- Max power consumption (230V):32W
- Power factor:>0,97
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy polycarbonate body
- Finish:black
- Operating temperature:Ta0 to +45 °C (+32 to +113 °F)
- Dimensions (WxHxD):150x150x69,5mm
- Weight:1,2kg
- Suspension and fixing:M5 and 1/4'' threaded insert for easy installation
- Compliance:CE, UKCA, RCM, cTUVus, FCC
