Prolights ECLFRCTPXSBK

120 W Led Fresnel with 6 color source, 130mm-5'' lens, barndoor incl.

QUOTE ONLY

Price on request

Add to wishlist

View on Manufacturer Website

SKU: ECLFRCTPXSBK

CATEGORY: Fresnel

BRAND: Prolights

WARRANTY 2 years

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

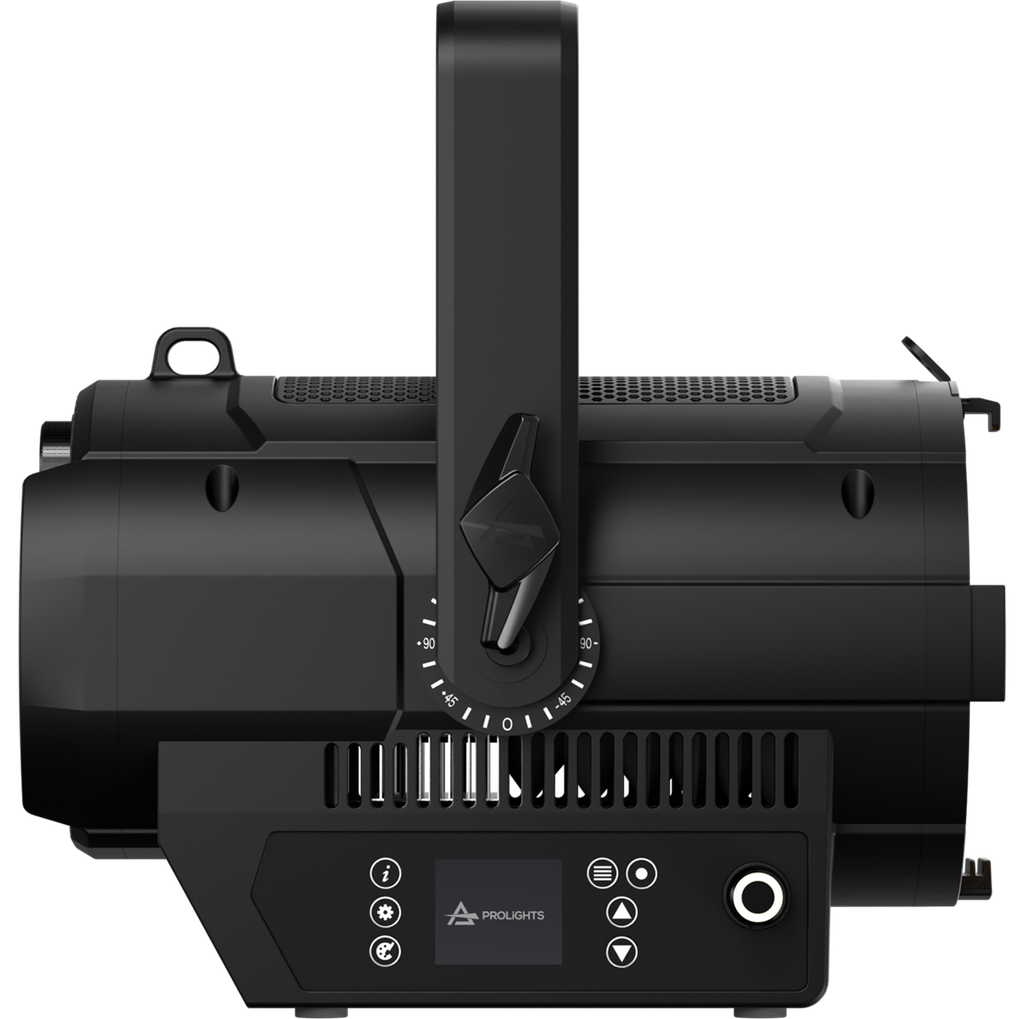

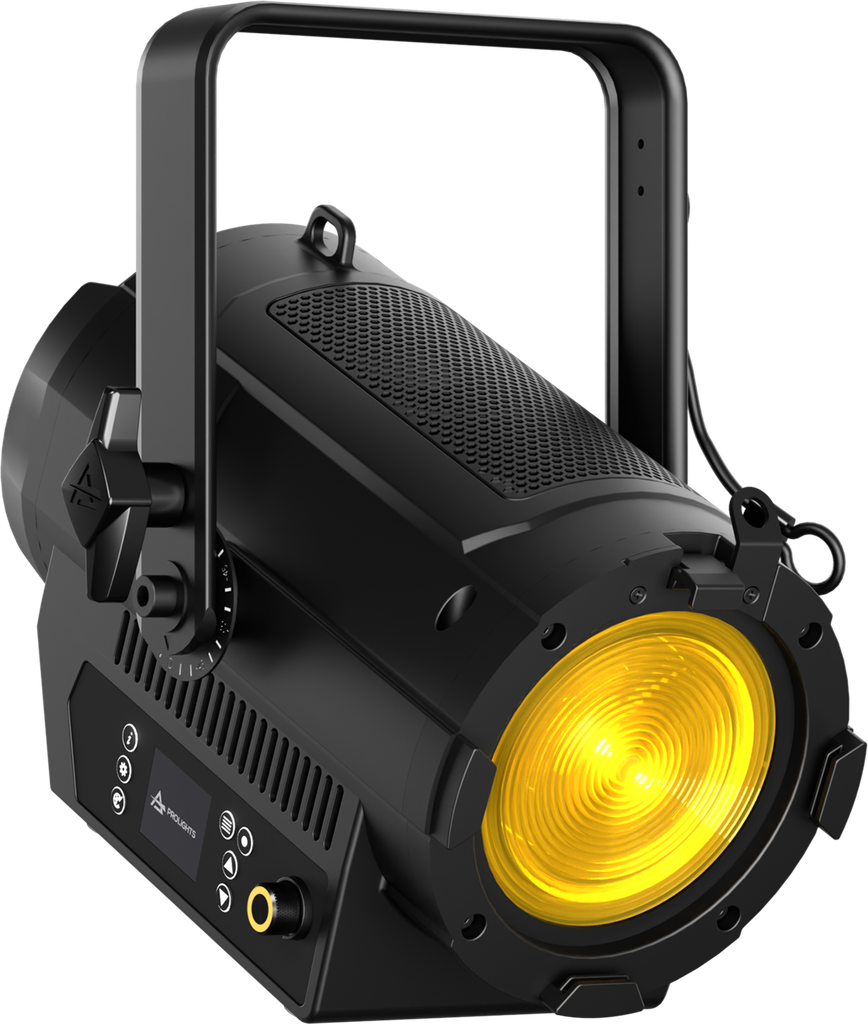

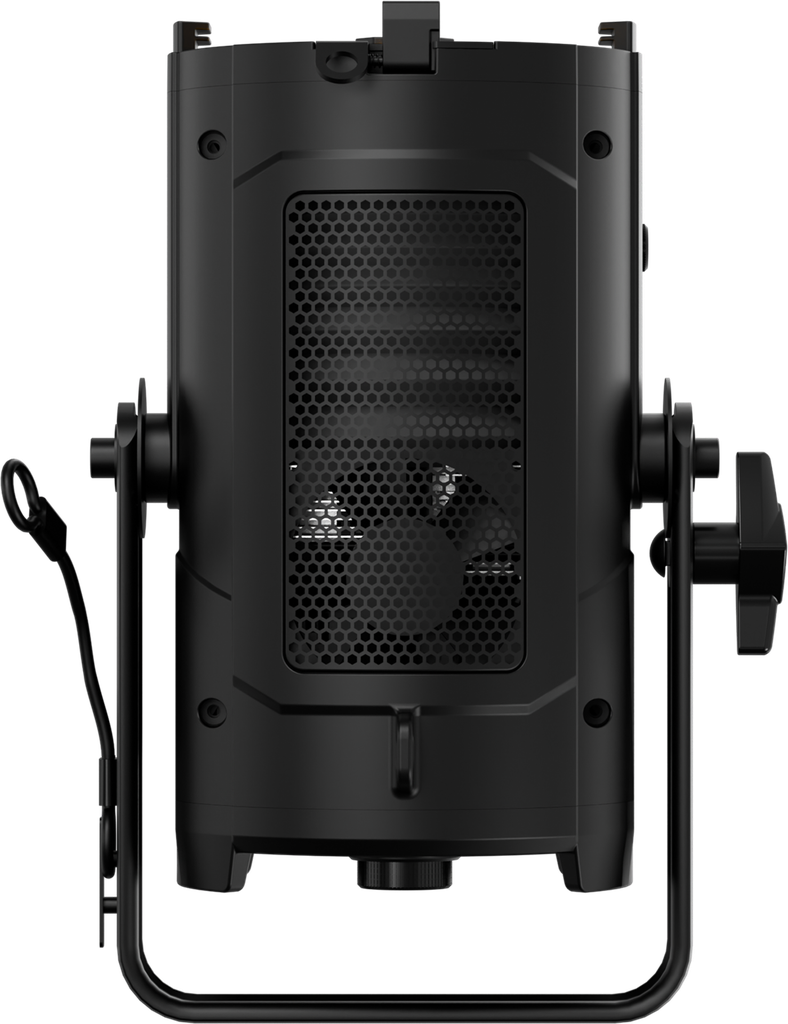

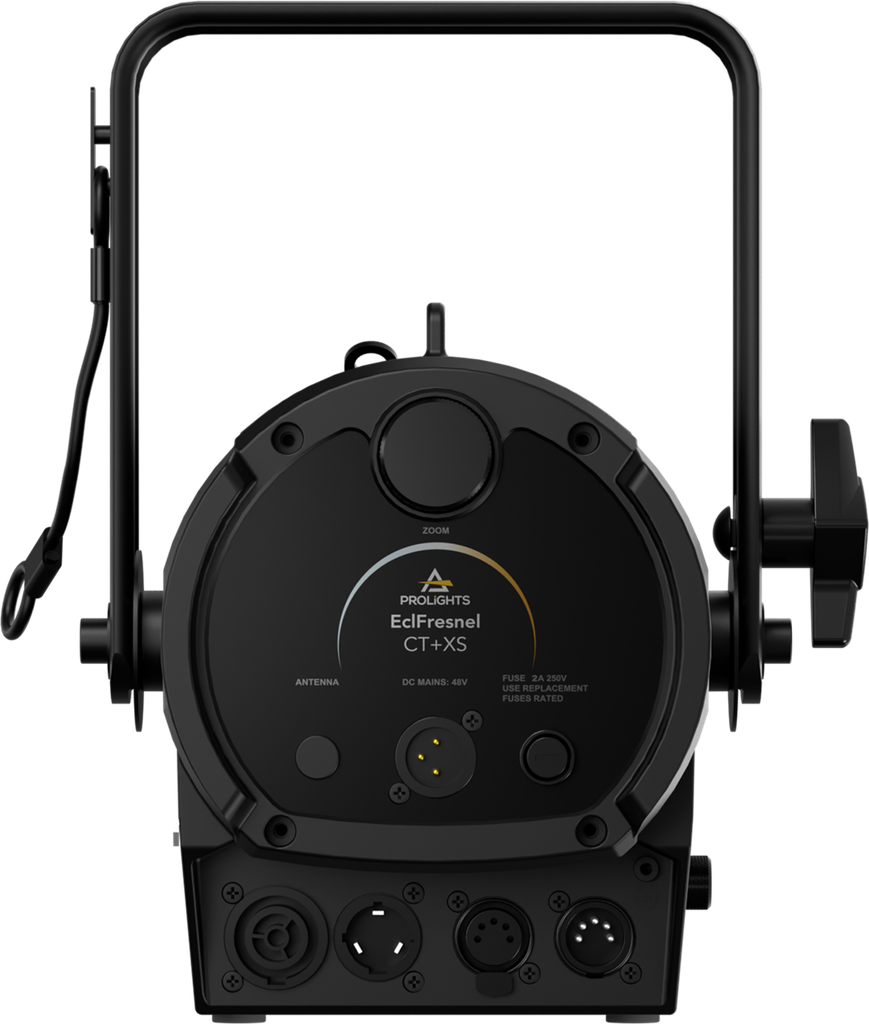

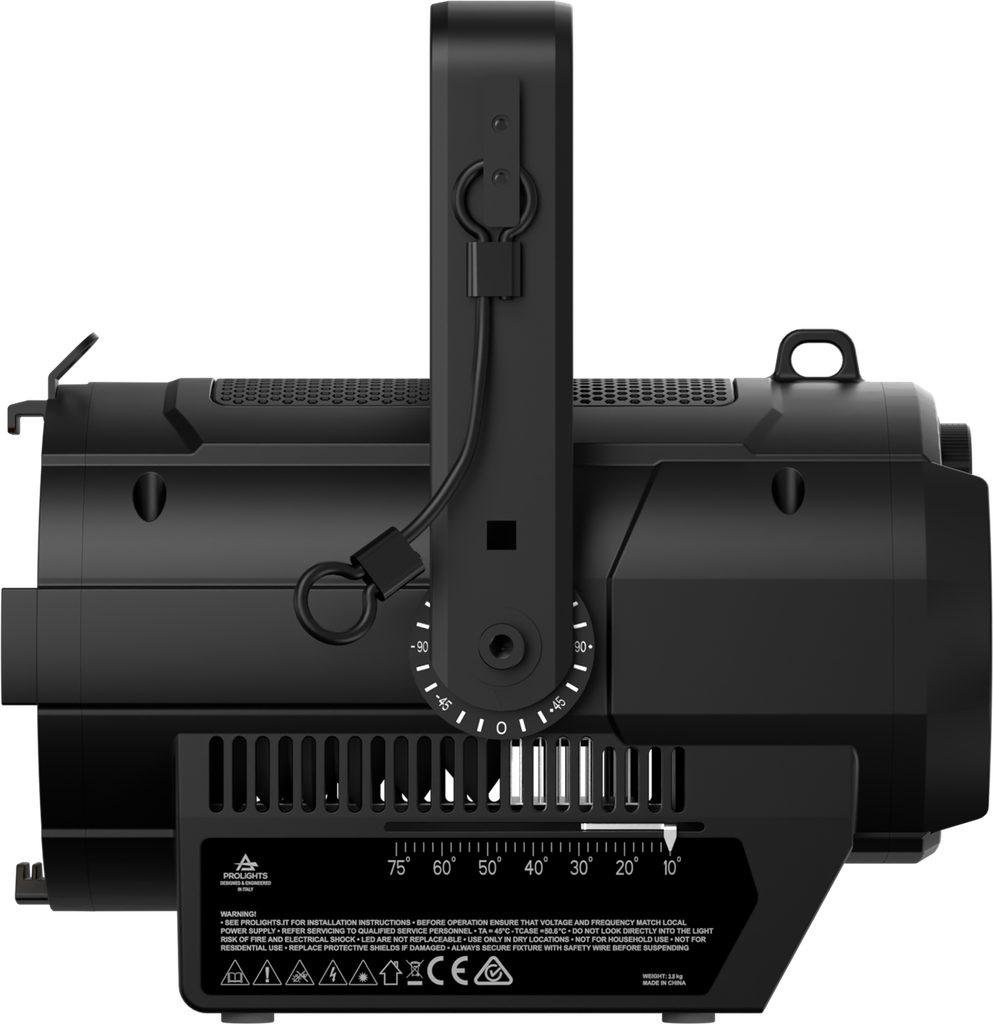

EclFresnel CT+XS is a compact 120W LED Fresnel, outputting 3700 lm and engineered with a 6 colours light source and a 130mm / 5'' Fresnel lens designed to replace the classic 300W Tungsten Fresnels.

The newly designed optical system provides internal zoom from 10° to 75°, maintaining high efficiency at any beam angle without any change to the luminaire's physical size throughout the zoom range. An optional PC lens kit is also available to achieve its specific light distribution.

The SpektraOs algorithm delivers consistency in operations also with the other size of ECL Frensel, higher luminous flux in both colours and whites CCT keeping a broader color space and richer light spectrum to achieve unprecedented values of CRI, TLCI and TM30.

The EclFresnel CT+ also performs silently, allowing it to be an indispensable workhorse for Broadcast, Theatre and coorporate applications.

120W 6 color LED Fresnel, provides 3,700 lm

10-75° Internal zoom system, 130mm/5'' Fresnel lens, and Optional PC kit

SpektraOs allow high value in CRI up to 98, and consistent color reproduction across the range

CRI: 97,7 @3.200K; 95,9 @5.600 K - R9: 96,5 @3200K; 96,2 @5.600 K

The EclFresnel CT+ also performs silently, allowing it to be an indispensable workhorse for Broadcast, Theatre and coorporate applications.

Features:
120W 6 color LED Fresnel, provides 3,700 lm
10-75° Internal zoom system, 130mm/5'' Fresnel lens, and Optional PC kit
SpektraOs allow high value in CRI up to 98, and consistent color reproduction across the range
CRI: 97,7 @3.200K; 95,9 @5.600 K - R9: 96,5 @3200K; 96,2 @5.600 K

LIGHT SOURCE

Source:

120
W

6 colour LEDs source
Luminous flux:

(11,2°) 2.406 lm - (74,7°) 3.669

@Full
Lux:

(11,2°) 2.560 lx - (74,7°) 225
lx

@5 m full
CRI:

97,7 @3.200K; 95,9 @5.600 K
R9:

96,5 @3200K; 96,2 @5.600 K
TLCI:

89 @3200K; 93 @5.600 K
TM30 Rf:

> 94,8 @3.200K; > 94,3 @5.600 K
TM30 Rg:

< 102,8 @3.200K; < 104,4 @5.600 K
Source life expectancy:

> 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Zoom range:

(Fresnel lens) 10°-75°; (PC lens) 10°-67
°

manual
Lens diameter:

130
mm
Lens type:

PMMA lens
Additional optics:

PC lens available as accessory
Other:

barndoor and gel frame included

COLOUR SYSTEM

Spektra OS:

unmatched color precision and consistency
Colour control:

XY, CCT, RGBW, Gel with Source Emulation, Tungsten emulation, HSI, User preset
Colour mixing:

6 colour LEDs source
CCT:

linear CCT adjustment from 1.850 K-20.000K

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

From 1 to 34
ch
RDM:

for remote addressing and parameter configuration
Display:

2.4'' Color display
Stand Alone:

1

push encoder
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

1282 to 40000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO (not included)

CONNECTIONS

Power connection:

Neutrik powerCON TRUE1 IN/OUT connectors
Signal connection:

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TimoTwo FX - CRMX, CRMX² (RX only) and W-DMX compatible, Bluetooth enabled

ELECTRICAL
