Prolights ECLEXPOFL150VWBK

150W asymmetric LED floodlight, with Variable White CCT 2,700K - 6,500K, black

QUOTE ONLY

Price on request

Add to wishlist

View on Manufacturer Website

SKU: ECLEXPOFL150VWBK

CATEGORY: Cyclorama

BRAND: Prolights

WARRANTY 2 years

EXPERT SUPPORT Pre and post sale support

CONSULT AN EXPERT

Our team is ready to help you.

CONSULT AN EXPERT

Our team is ready to help you.

NEED A QUOTE?

We will provide custom pricing for your project.

REQUEST A QUOTE

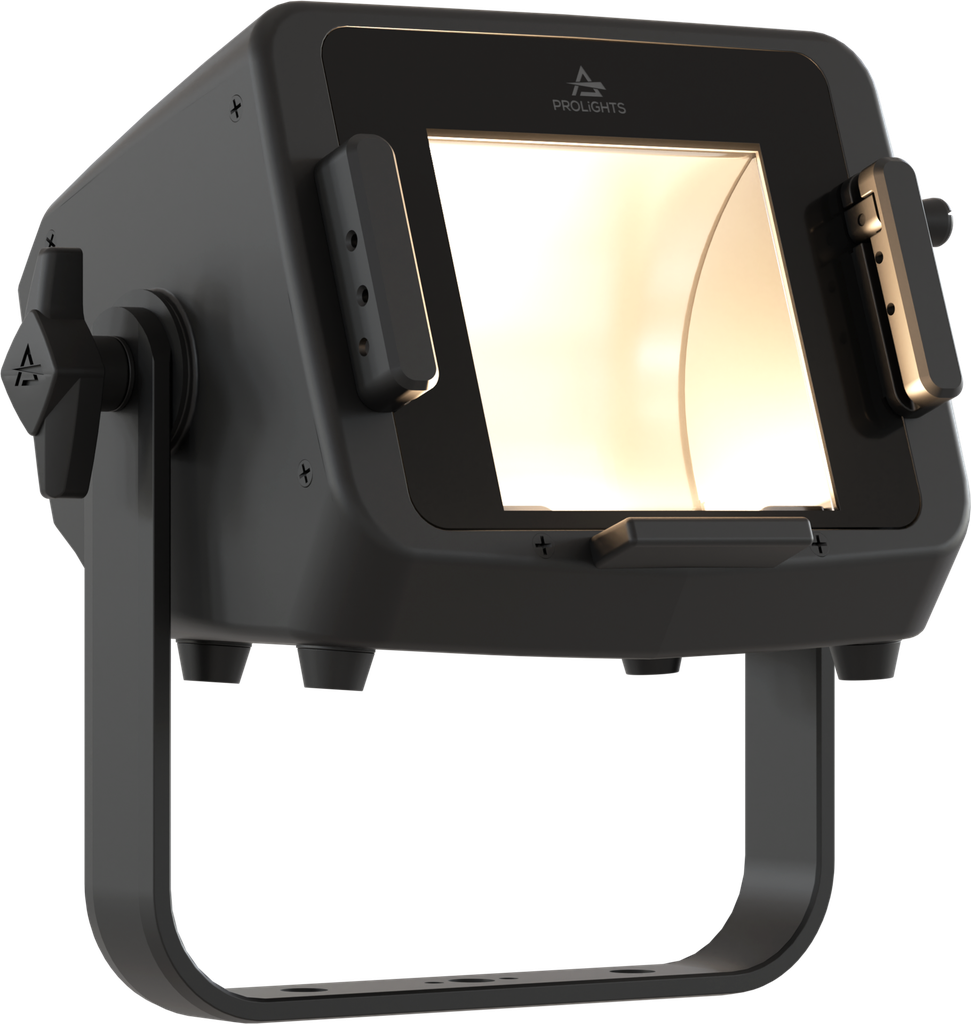

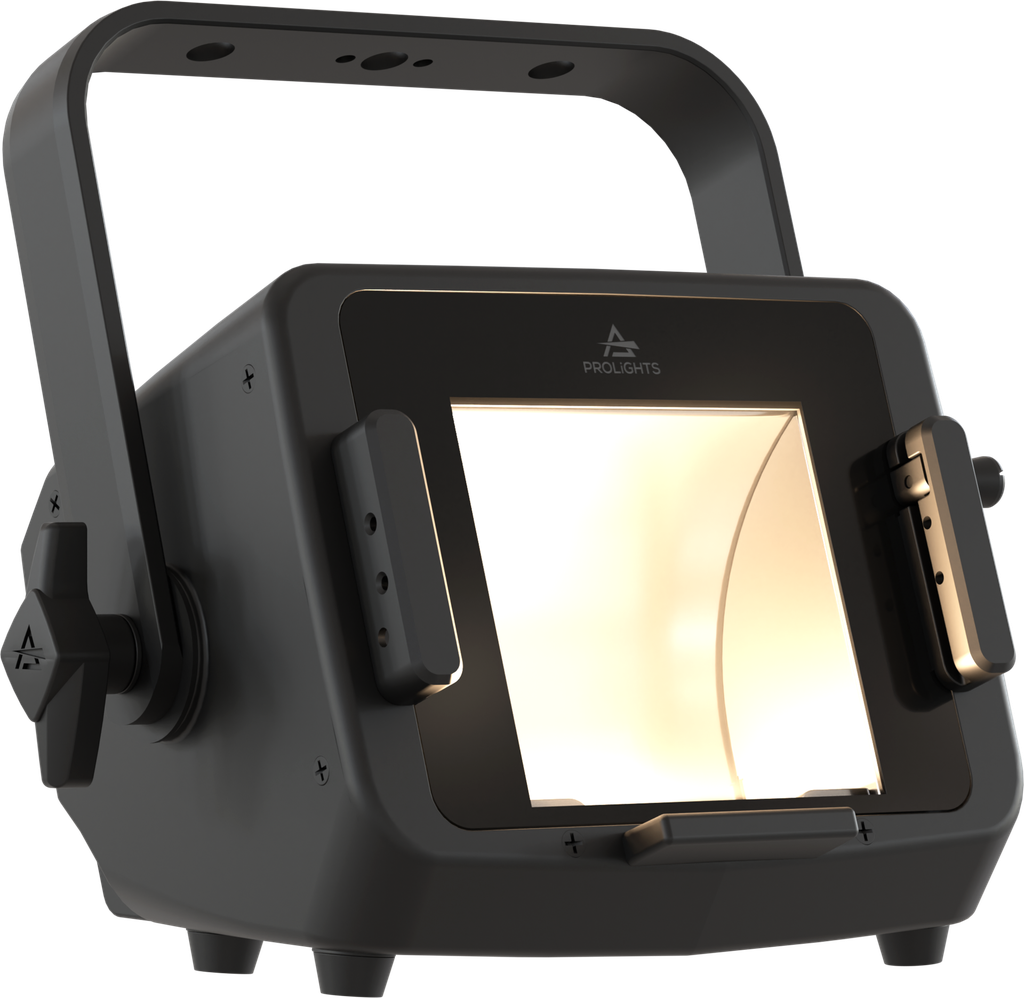

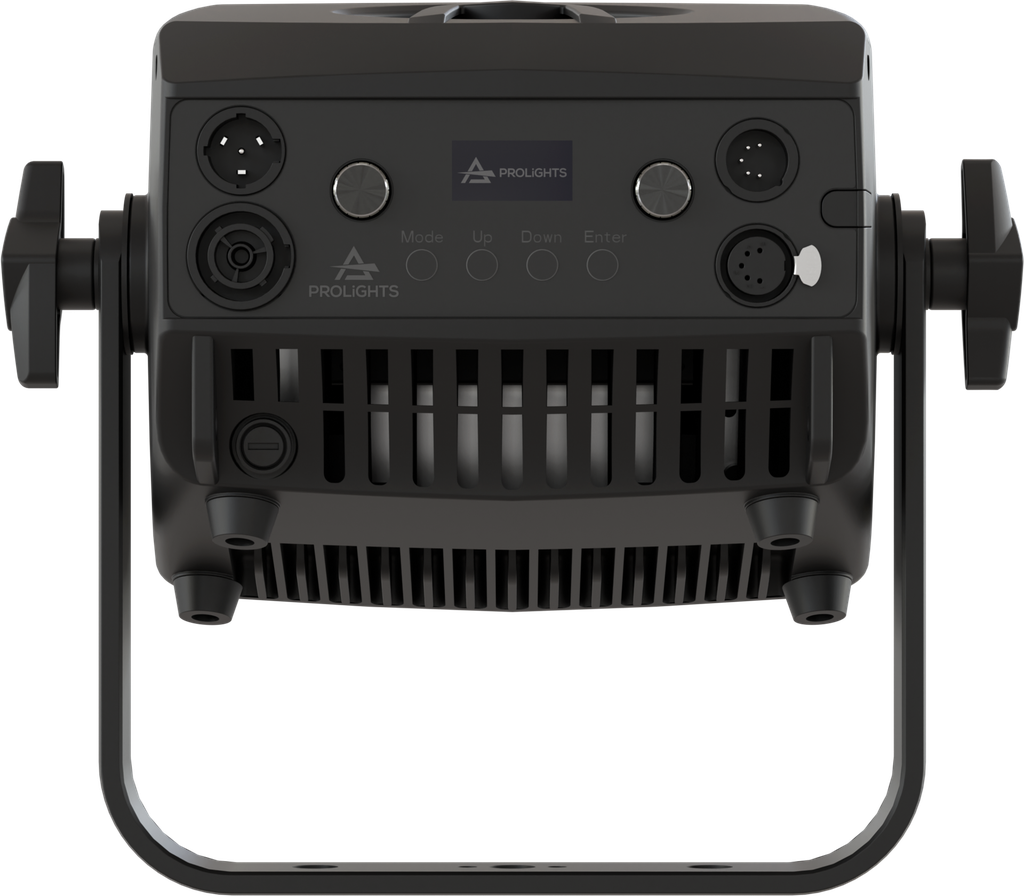

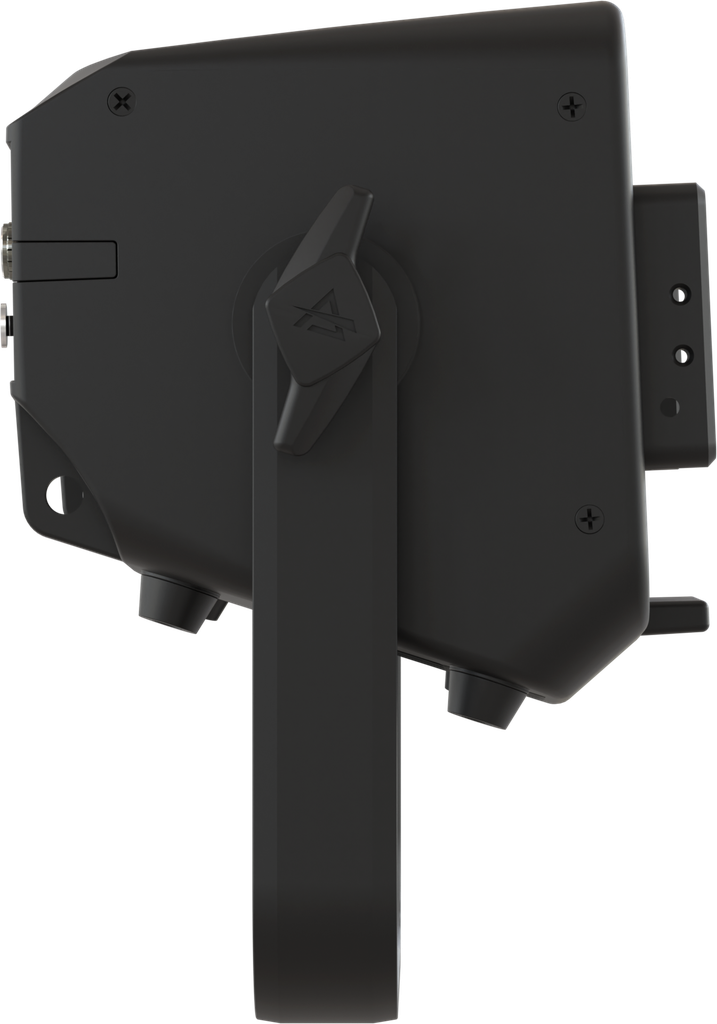

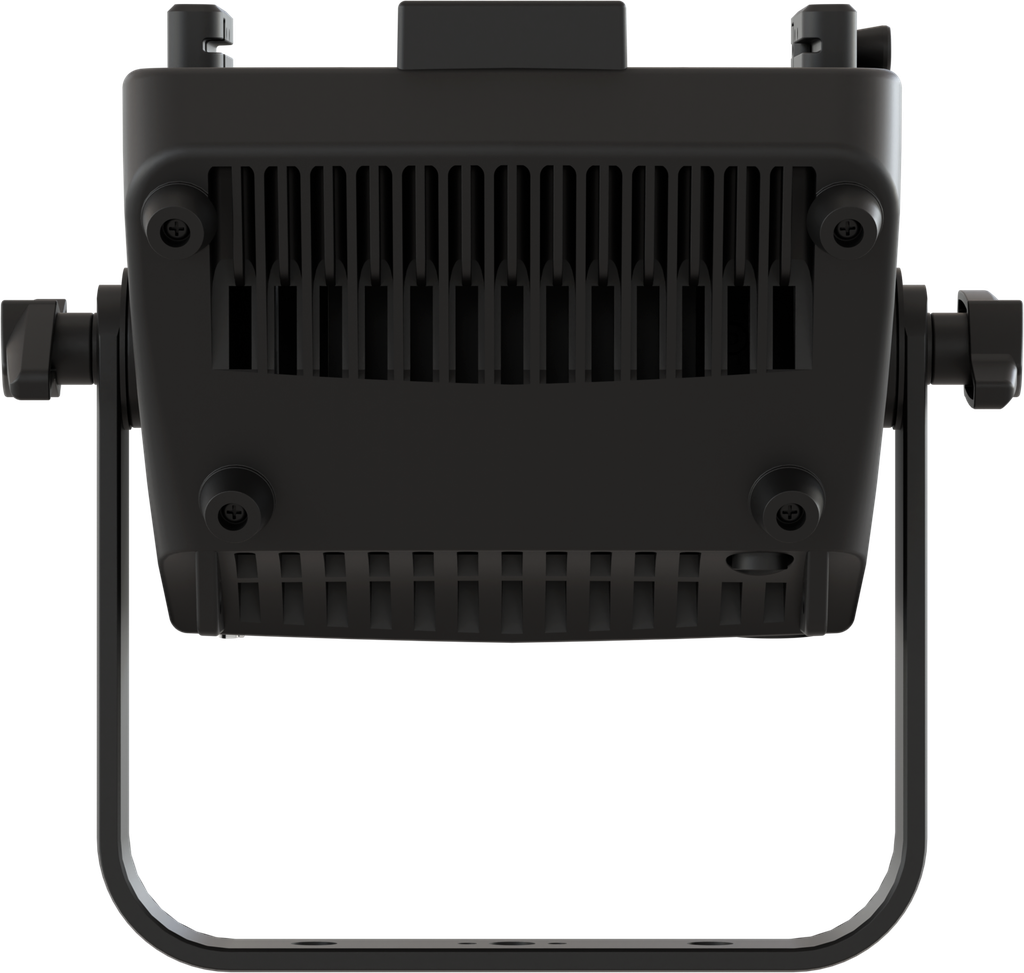

The EclExpo Flood150 is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theaters, or as a work light. Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.

The EclExpo Flood150 is available in two source variants:

- FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.

- VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.

This unit is incredibly user-friendly, offering immediate stand-alone access through the knobs or through wired DMX/RDM or Wireless CRM (optional). Timeless Elegance meets Green Innovation: The EclExpo Flood150 - Where Classic Beauty Embraces Modern Technology

150W Variable White LED source, from 2,700K to 6,500K

Asymmetric beam angle of 100° (horizontal) x 60° (vertical)

Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

The EclExpo Flood150 is available in two source variants:

- FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.

- VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.

Features:
150W Variable White LED source, from 2,700K to 6,500K
Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs

LIGHT SOURCE

Source:

150
W

Variable White LED
Source CCT:

2.700 K - 6.500 K
K
Luminous flux:

@2.700K 6'956 lm; @6.500K 9'733 lm; @full 8'598
Lux:

@2.700K 72 lx; @6.500K 99 lx; @full 91
lx

@5 m
CRI:

95,1 @2.700 K; 95,3 @6.500 K; 94.4 @full
R9:

95 @2.700 K; 88.4 @6.500 K; 80,7 @full
TLCI:

97 @2.700 K; 96 @6.500 K; 98 @full
TM30 Rf:

> 94 @2.700 K; > 90 @6.500 K; > 92 @full
TM30 Rg:

< 101 @2.700 K; < 99 @6.500 K; < 102 @full
Source life expectancy:

> 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Optics:

asymmetrical beam reflector in pure aluminium 99,6%
Beam angle:

(H) 100° x (V) 60
°

COLOUR SYSTEM

Colour mixing:

tunable white
CCT:

CCT control through dedicated DMX channel
White presets:

2.700 K - 6.500
K
Colour wheel:

built-in white presets

DYNAMIC EFFECTS

Control Resolution:

16-bit dimmer control
Static mode:

selection of static dimmer and color temperature
Manual mode:

manual adjustment of intensity and CT from knob
Auto mode:

built-in programs with execution speed adjustment

CONTROL

Supported Protocols:

DMX512, RDM, CRMX (optional)
DMX channels:

1 / 2 / 3 / 5 / 11
ch
RDM:

for remote addressing and parameter configuration
Display:

Graphic User Interface
Stand Alone:

2

rotatory knobs
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 - 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 30

Hz, electronic
Selectable PWM:

600 to 25000 Hz (selectable steps)
Firmware upgrade:

via DMX with UPBOXPRO/UPBOX1 (not included)

CONNECTIONS

Power connection:

Seetronic powerCON TRUE IP65 IN/OUT
Signal connection:

Amphenol XLR 5p IN/OUT connectors
Wireless Connection:

optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible

ELECTRICAL
